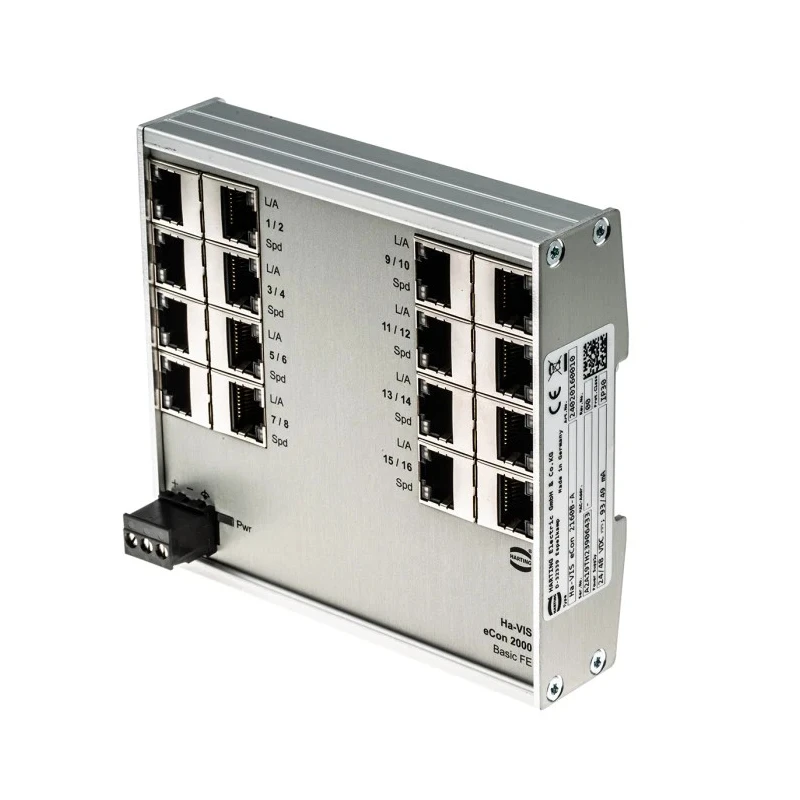

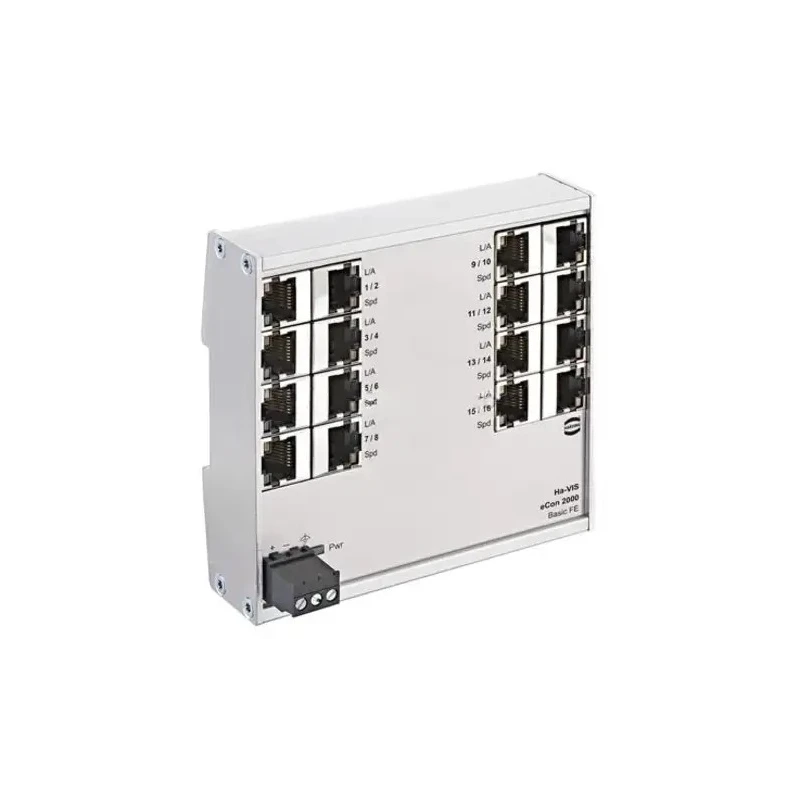

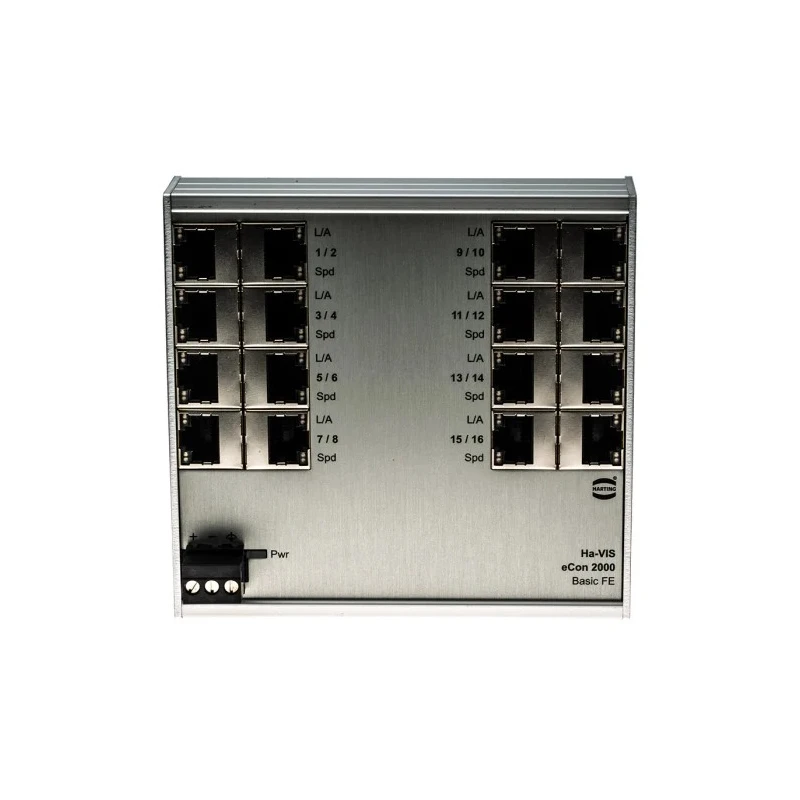

HARTING Unmanaged 16 Port Ethernet Switch 100Mbps Industrial DIN-Rail Mount 24020160010

Free Delivery in India | Lowest Global Shipping Charges

HARTING Unmanaged 16 Port Ethernet Switch 100Mbps Industrial DIN-Rail Mount 24020160010

Name: HARTING Unmanaged 16 Port Ethernet Switch 100Mbps Industrial DIN-Rail Mount 24020160010
Brand: HARTING
SKU: 412437
Price: 20.22 USD
Availability: InStock



Category Network Switch Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Height	113.5mm
Depth	27.3mm
Width	120mm
Switch Type	Unmanaged
Number Of Ports	16
Interfaces	Ethernet reduces power draw during low activity Industrial temperature option supports -40°C to +70°C operation Surge and reverse‑polarity protection ensure stable voltage tolerance Store‑
Standards/Approvals	CE, CSA, FCC, UL

Key Features

Sixteen RJ-45 ports support 10/100 Mbps auto-negotiation for mixed speed connectivity.
Designed for compact industrial control cabinets with low-profile front cable entry.
Energy-Efficient Ethernet technology reduces power consumption during low activity.
Industrial temperature range supports operation from -40°C to +70°C.
Surge and reverse-polarity protection enhance voltage tolerance for stable performance.
Store-and-forward switching prevents packet collisions ensuring reliable data transmission.
Anodised aluminium enclosure offers IP30 protection when power connector is fitted.
Indicators include integrated LEDs for power, link/activity, and link speed status.

Product Description

HARTING 24020160010 unmanaged 16 port Ethernet switch provides a robust Fast Ethernet networking solution with industrial reliability, featuring sixteen RJ-45 ports supporting 100 Mbps. It is engineered for compact industrial installations and DIN-rail mounting inside control cabinets where space and reliable front-facing cable connections are essential.

The switch supports 10/100 Mbps auto-negotiation, enabling compatibility with mixed-speed devices. Energy-Efficient Ethernet technology lowers power consumption during periods of low network activity, contributing to enhanced operational efficiency.

This device operates reliably across a wide industrial temperature range from -40°C to +70°C and incorporates surge and reverse-polarity protection to withstand voltage fluctuations. Store-and-forward switching technology minimizes packet collisions, improving network reliability and data integrity.

The anodised aluminium casing provides mechanical protection with an IP30 rating when the power connector is attached, suitable for harsh industrial environments. Link status, activity, and speed are indicated by integrated LEDs with distinct colors and flashing patterns, facilitating quick diagnostics.

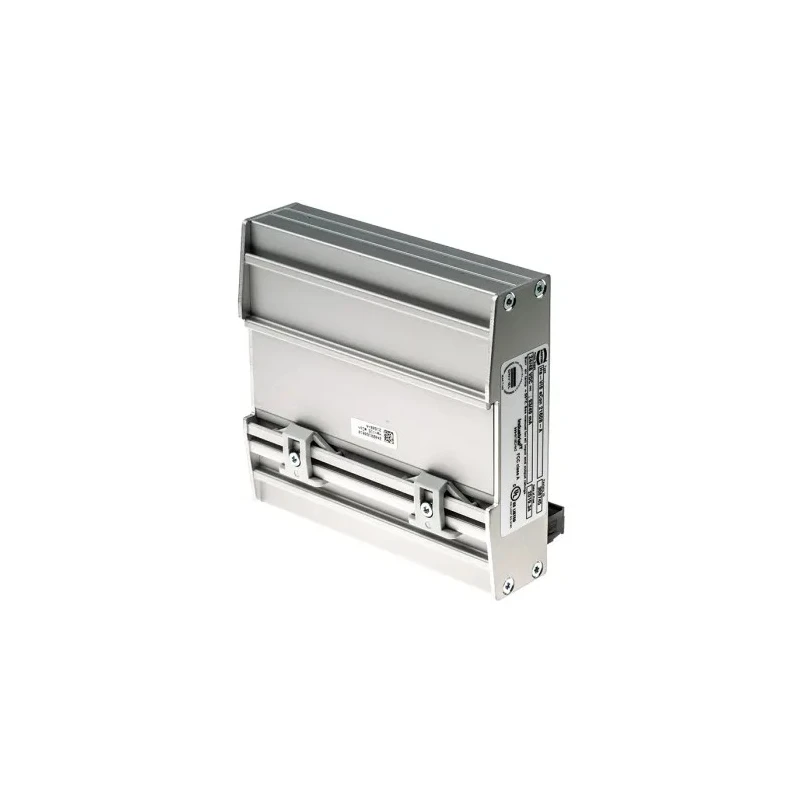

Installation is straightforward with a clip-on 35 mm DIN-rail mounting system and a pluggable 3-pole screwed power connector accepting nominal 24 VDC or 48 VDC supply voltages (range 9 VDC to 60 VDC). Storage tolerance ranges from -40°C to +85°C with up to 95% non-condensing humidity.

Sixteen RJ-45 ports support 10/100 Mbps connectivity with auto-negotiation. Energy-Efficient Ethernet reduces power usage at low activity. Industrial temperature range: -40°C to +70°C for reliable operation. Surge and reverse-polarity protection ensures voltage stability.

Store-and-forward switching improves data transmission reliability. Anodised aluminium enclosure with IP30 rating for protection. Integrated LED indicators for power, link, and speed status. Clip-on 35 mm DIN-rail mounting and pluggable 3-pole power connector.

Accepts power input from 9 VDC to 60 VDC nominal voltages. Ideal for factory automation, machine control cabinets, transportation, renewable energy, and industrial robotics. Explore more HARTING Network Switches and industrial connectivity solutions on EnvMart to support diverse industrial automation and communication needs.
