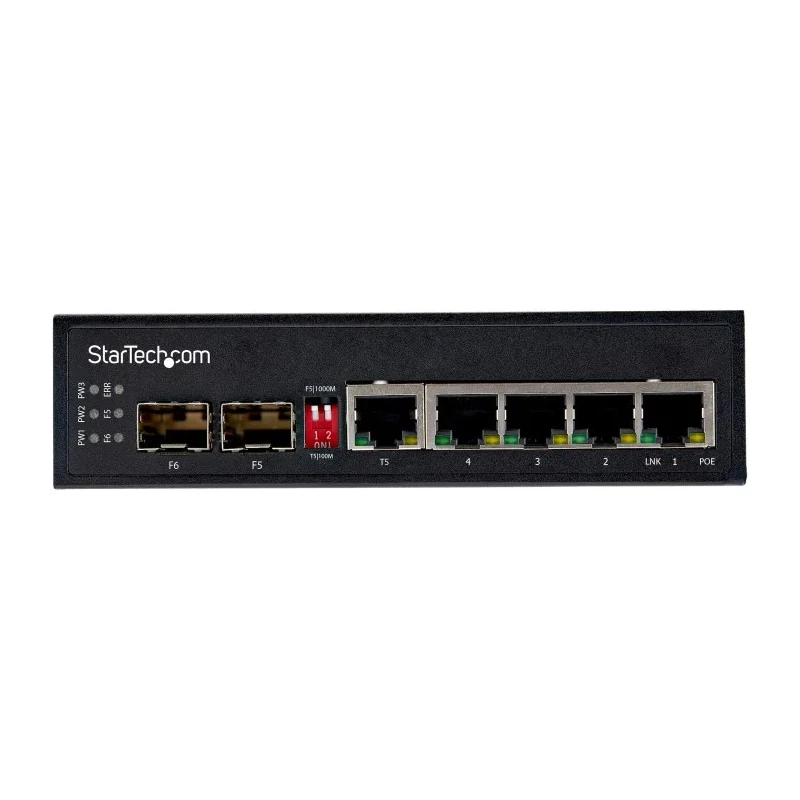

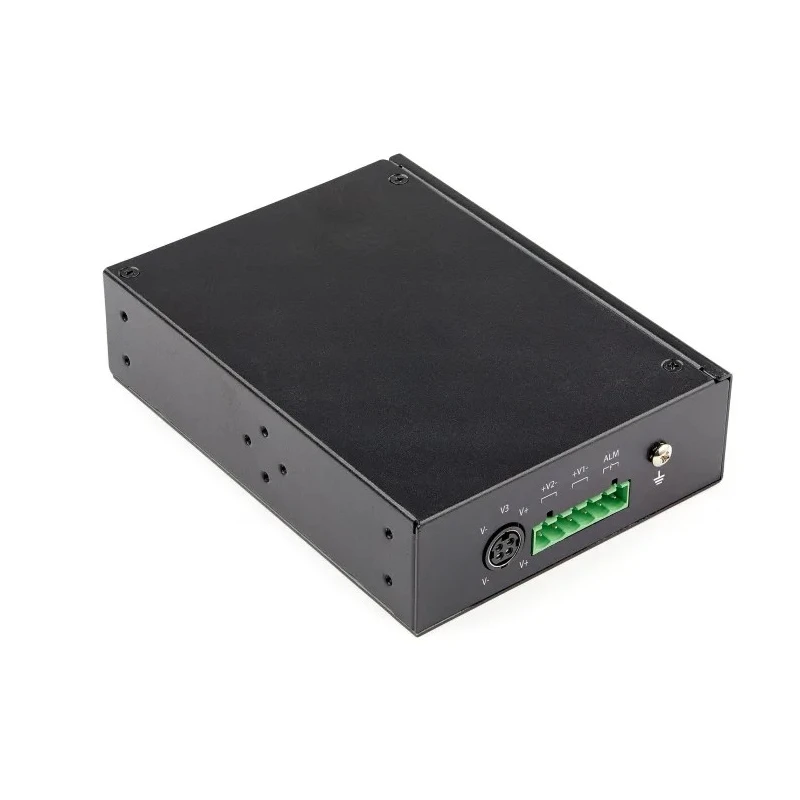

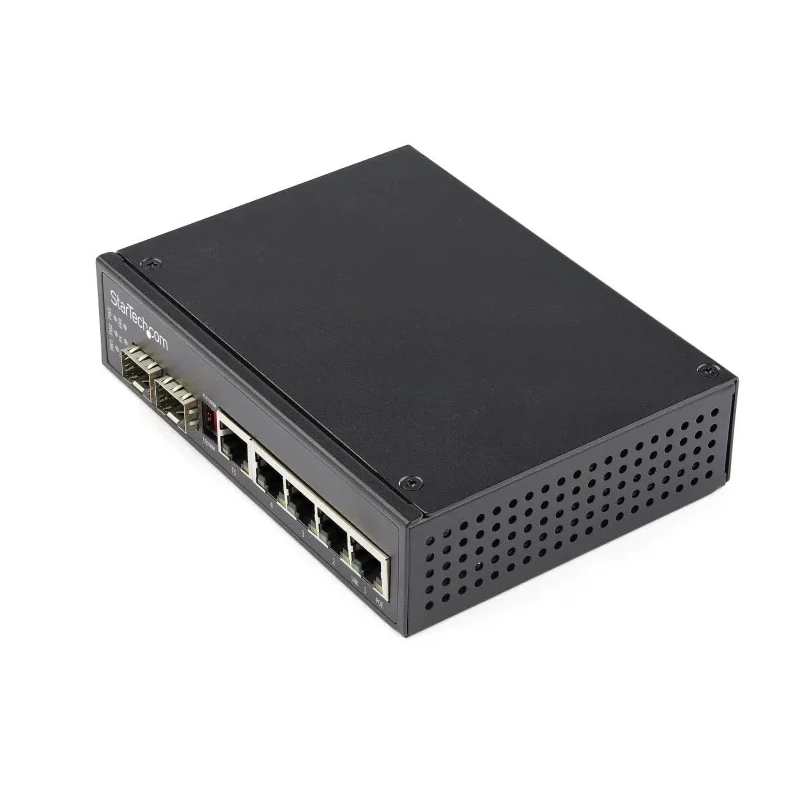

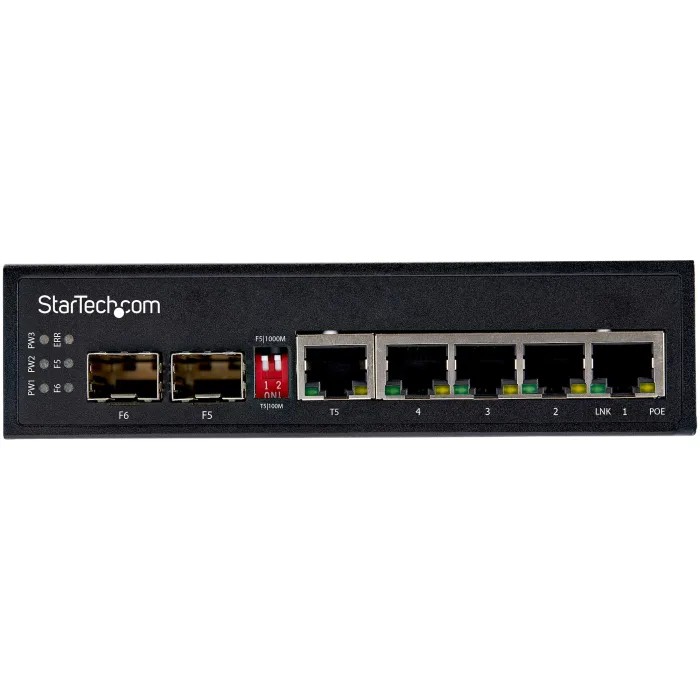

StarTech.com Unmanaged 6 Port Gigabit Switch with Power Over Ethernet, 4 PoE Ports, 2 SFP Slots, Rack Mount IES1G52UPDIN

StarTech.com IES1G52UPDIN unmanaged 6 port gigabit switch is designed for industrial and commercial applications requiring reliable data and power transmission over Ethernet. Equipped with four dedicated PoE ports, it supports data and power delivery simultaneously to IEEE 802.3af (PoE Type 1) and 802.3at (PoE+ Type 2) compliant devices such as cameras, sensors, and Wi-Fi access points. The switch offers two additional ports that can be used as RJ45 or fiber-optic SFP connections, enhancing network flexibility.

This compact device has a robust rack-mount form factor with dimensions 142 mm length, 105 mm width, and 36 mm height, and it weighs just 0.492 kg, making it suitable for installations in constrained spaces. The operating temperature range of -40°C to +75°C combined with IP-30 rated housing and compliance with vibration (EN 60068-2-6), shock (EN 60068-2-27), and free-fall (EN 60068-2-32) standards ensures durability in harsh industrial environments.

The switch supports IEEE standards including 802.3ab 1000Base-T, 802.3u 100Base-TX, 802.3z 1000BASE-TX, and IEEE 802.3x for flow control, making it highly compatible and reliable for high-speed networking needs. With a total power budget of 120W, it can power multiple PoE devices efficiently over Cat 5e or higher Ethernet cabling.

StarTech.com IES1G52UPDIN is ideal for industrial automation, surveillance systems, commercial networking, and solar power infrastructure requiring minimal energy consumption. Its sturdy build and long MTBF rating of over 500,000 hours at 50°C provide long-term operational reliability and peace of mind.

Four PoE RJ45 ports providing up to 30W power each. Two SFP slots or switchable RJ45 ports for fibre or copper connectivity. Compact and lightweight rack-mountable design. Wide operating temperature from -40°C to +75°C for industrial use.

IP-30 rated rugged housing with shock, vibration, and free-fall resistance. Supports IEEE 802.3af and 802.3at PoE standards. High-speed gigabit Ethernet compliant with IEEE standards. Applications include IP cameras, sensors, Wi-Fi access points, and industrial control devices.

Over 500,000 hours MTBF for reliable long-term usage. Explore more advanced Network Switches and industrial Ethernet solutions in EnvMart's comprehensive catalog.
