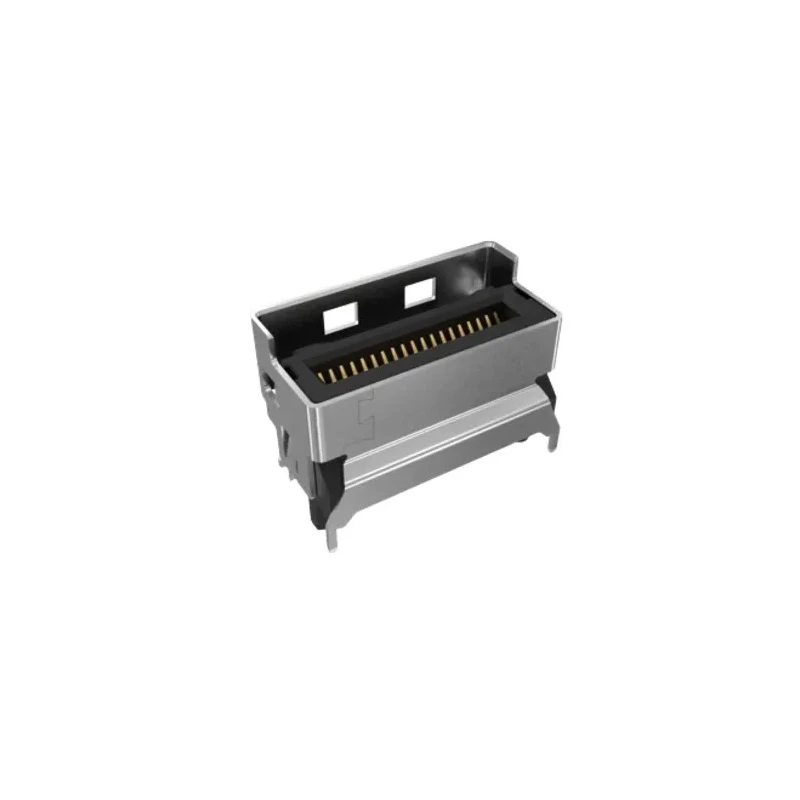

Amphenol Communications Solutions Mini Cool Edge IO Series Vertical Edge Connector, Panel Mount, 74-Contacts G97V21312HR
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Model | G97V21312HR |
| Mount Type | Panel |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Mini Cool Edge IO |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.6mm |
| Standards/Approvals | RoHS, UL |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 74 |
| Card Type | PCIe |
Key Features
- The connector features gold over nickel plating for enhanced conductivity and corrosion resistance.
- Copper alloy contact material ensures durability and signal integrity.
- Operates efficiently within a temperature range of -55°C to 85°C.
- Supports voltage up to 300V, suitable for PCIe card type applications.
- Compact vertical orientation allows space-efficient system design.
- Complies with RoHS and UL standards for safety and environmental compliance.
- Thermoplastic housing provides robustness and insulation.
- Designed for high-speed data transmission up to 56Gb/s PAM4 and supports PCIe Gen 4 and Gen 5.
Product Description
Amphenol Communications Solutions G97V21312HR Mini Cool Edge IO Series Vertical Edge Connector is a high-performance panel mount connector with 74 contacts and a 0.6 mm pitch designed for demanding electronics applications. It offers excellent signal transmission suitable for PCIe and high-speed data systems operating up to 300V and 85°C maximum temperature.
The connector’s contacts are made from a copper alloy base metal with gold over nickel plating, ensuring low electrical resistance and durability over prolonged use. The thermoplastic housing provides mechanical protection and insulation, supporting reliable operations in industrial, electronics, and data center environments.
This vertical edge connector enables compact and space-saving system designs for card edge and cable edge connections with identical connectors. Its slim form factor supports modular, scalable, and easy-to-repair architectures, ideal for modern data center and industrial digital systems.
The connector supports transmission speeds up to 56Gb/s PAM4, compatible with PCIe Gen 4 and PCIe Gen 5 standards over distances exceeding 1.0 meter. It is RoHS and UL compliant, ensuring environmental safety and electrical reliability.
The connector features gold over nickel contact plating that resists corrosion and maintains conductivity. Copper alloy contacts provide a robust connection suitable for various applications. The product operates in a wide temperature range from -55°C to 85°C, ensuring stable performance in harsh environments.
Supports 300V voltage rating for versatile electronic component integration. The thermoplastic housing enhances durability and insulation properties. Panel mount configuration allows easy integration into electronic assemblies.
Designed specifically for PCIe card type interfaces, facilitating high-speed communications. Mini Cool Edge IO series focuses on scalability, modularity, and system repairability.
This connector is manufactured in China under strict quality control systems and provides a reliable solution for electronic component and data transmission needs in industrial, telecommunications, and computing sectors.
Explore more in the Edge Connector category at EnvMart for industrial-grade electronic connectors and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This connector features 74 contacts.
It supports a voltage rating of up to 300V.
This model is designed specifically for PCIe card type interfaces.
The contacts are made from copper alloy and feature gold over nickel plating for enhanced conductivity and corrosion resistance.
The pitch size of this connector is 0.6 mm.
It complies with RoHS and UL standards for safety and environmental compliance.
The housing is made from thermoplastic, providing mechanical protection and insulation.
The minimum operating temperature is -55°C.
It supports high-speed data transmission up to 56Gb/s PAM4.
This connector has a vertical orientation, allowing for compact system designs.
This connector is manufactured in China under strict quality control systems.
