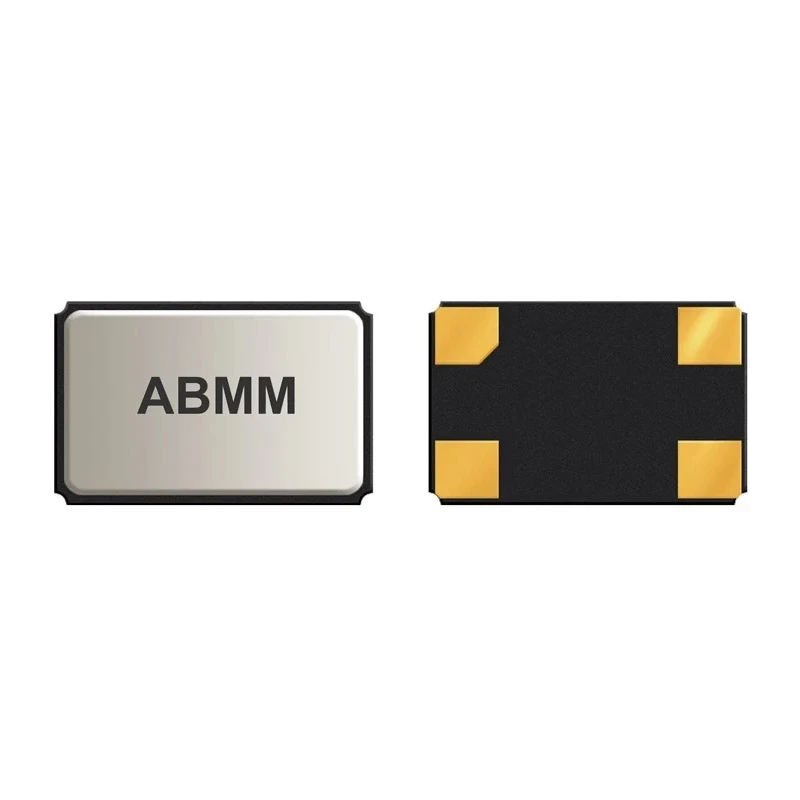

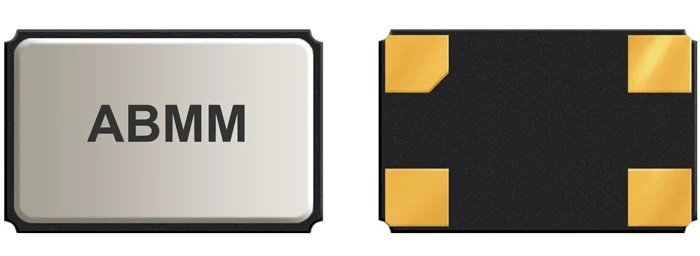

Abracon 10 MHz Crystal Unit ±50 ppm Surface Mount 4-Pin 1.3 mm Height 7 mm Length 5 mm Width ABMM-10.000MHZ-B2-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 10 MHz Crystal Unit ±50 ppm Surface Mount 4-Pin 1.3 mm Height 7 mm Length 5 mm Width ABMM-10.000MHZ-B2-T

Name: Abracon 10 MHz Crystal Unit ±50 ppm Surface Mount 4-Pin 1.3 mm Height 7 mm Length 5 mm Width ABMM-10.000MHZ-B2-T
Brand: Abracon
SKU: 341140
Price: 1.12 USD
Availability: InStock



Category Crystal Unit Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.3mm
Length	7mm
Model	ABMM-10.000MHZ-B2-T
Packaging	Tape & Reel
Width	5mm
Mount Type	Surface
Series	ABMM
Maximum Operating Temperature	60°C
Package Type	Surface Mount
Minimum Operating Temperature	-10°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	10MHz
Load Capacitance	18pF
Series Resistance	70Ω

Key Features

This crystal unit operates at a standard frequency of 10 MHz.
Surface mount type with 4 pins for easy PCB integration.
The device supports a load capacitance of 18 pF and has a series resistance of 70 Ω.
Operating temperature ranges from -10°C to 60°C, suitable for various environments.
Package is supplied on tape and reel, aiding efficient automated assembly.
Compliant with RoHS standards for environmental safety.

Product Description

Abracon ABMM-10.000MHZ-B2-T 10 MHz Crystal Unit is a surface mount microprocessor crystal designed for precise frequency generation in electronic circuits. This 4-pin crystal unit features a compact form factor with a height of 1.3 mm, length of 7 mm, and width of 5 mm, making it suitable for high-density PCB layouts.

The crystal operates at a standard frequency of 10 MHz with tight tolerance and stability of ±50 ppm, optimizing signal accuracy and timing performance in devices such as microprocessors, computers, modems, and communication equipment. It supports a load capacitance of 18 pF and has a series resistance of 70 Ω, ensuring reliable oscillation.

Designed to withstand operating temperatures from -10°C to 60°C, this crystal unit supports a wide range of industrial and commercial environments. The product is mounted using surface mount technology (SMT), and is supplied on tape and reel packaging for automated manufacturing processes.

RoHS compliance guarantees that the product meets environmental safety requirements. Its compact dimensions and automotive-standard exclusion make it ideal for general electronic applications but not automotive-specific projects.

Operates at 10 MHz standard frequency with ±50 ppm tolerance for accuracy. Low profile SMT 4-pin package with 1.3 mm height for compact PCB mounting. Series resistance of 70 Ω supports stable oscillation. Wide operating temperature range from -10°C to 60°C suits various applications.

Supplied in tape and reel for high-volume production efficiency. RoHS compliant ensuring environmental safety standards. Suitable for use in computers, microprocessors, modems, communication and test equipment.

This crystal unit is especially useful in industrial and manufacturing environments requiring precise frequency control. For further product lines or additional technical specifications, explore other Abracon Crystal Units and related components at EnvMart.
