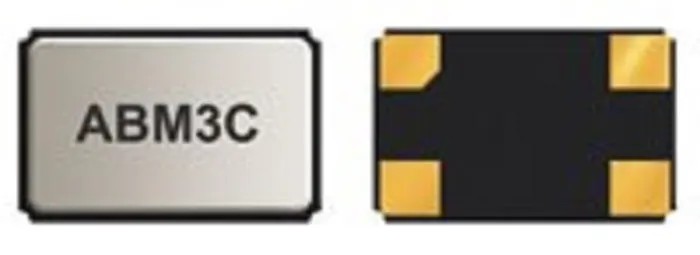

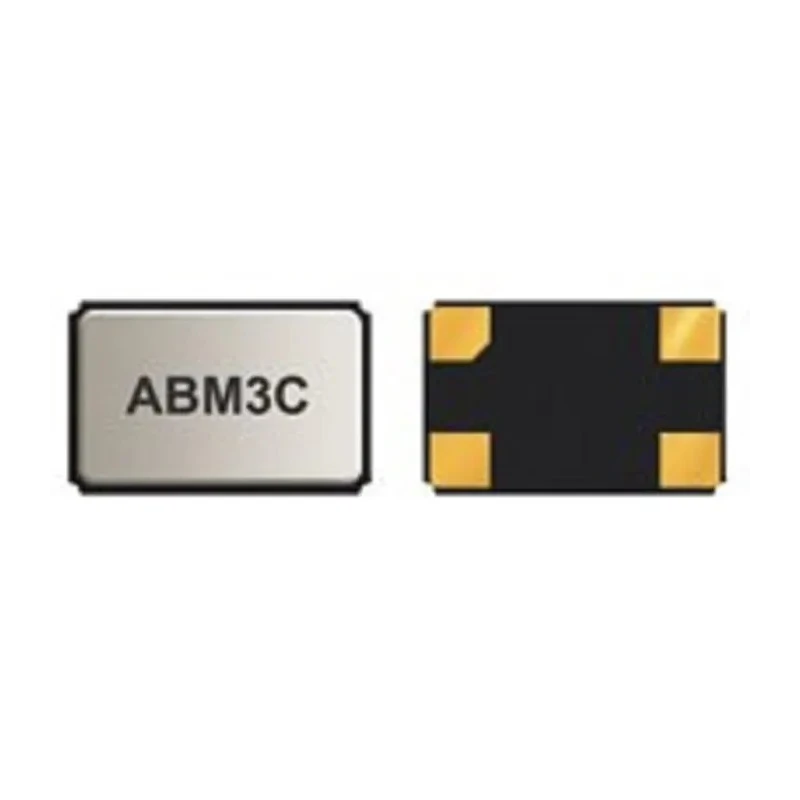

Abracon 18.432 MHz Crystal Unit ±50 ppm Surface Mount 4-Pin 5 mm x 3.2 mm x 1.3 mm ABM3C-18.432MHZ-D4Y-T

Abracon ABM3C-18.432MHZ-D4Y-T 18.432 MHz Crystal Unit is a surface mount device designed for precise frequency control in electronic circuits. Featuring a 4-pin configuration and a standard frequency of 18.432 MHz, this crystal unit is built with a frequency tolerance and stability of ±50 ppm, ensuring reliable oscillator performance under varying conditions.

The physical dimensions of 5 mm length, 3.2 mm width, and 1.3 mm height make it ideal for use in compact and space-constrained printed circuit boards. It includes a load capacitance rating of 18 pF and a nominal series resistance of 50 Ω, matching typical requirements for communication and test applications.

This component operates reliably within a temperature range from -10°C to 70°C, which suits many industrial and commercial electronics environments. The crystal unit is packaged in tape and reel for streamlined surface-mount technology (SMT) assembly processes.

Common applications include high-density devices such as modems, wireless communication equipment, PCMCIA cards, and various test instruments. The low-profile design supports modern thin equipment without compromising performance.

Compliance with RoHS directives confirms this product's alignment with environmental safety standards. Additionally, the crystal is available with sealed packaging options to enhance reliability and longevity in demanding conditions.

Frequency: 18.432 MHz with ±50 ppm tolerance and stability. Surface Mount Package with 4 pins in a compact 5 x 3.2 x 1.3 mm form factor. Load capacitance of 18 pF and series resistance of 50 Ω. Operating temperature range: -10°C to 70°C.

Tape and reel packaging compatible with automated SMT assembly. Suitable for communication, wireless, and test equipment applications. RoHS compliant for environmental safety. Low profile design for integration into thin electronic equipment.

This Crystal Unit is a reliable choice for designers requiring high accuracy and stability in frequency control components. Explore more in the Electronics Components category at EnvMart for complementary parts and accessories.
