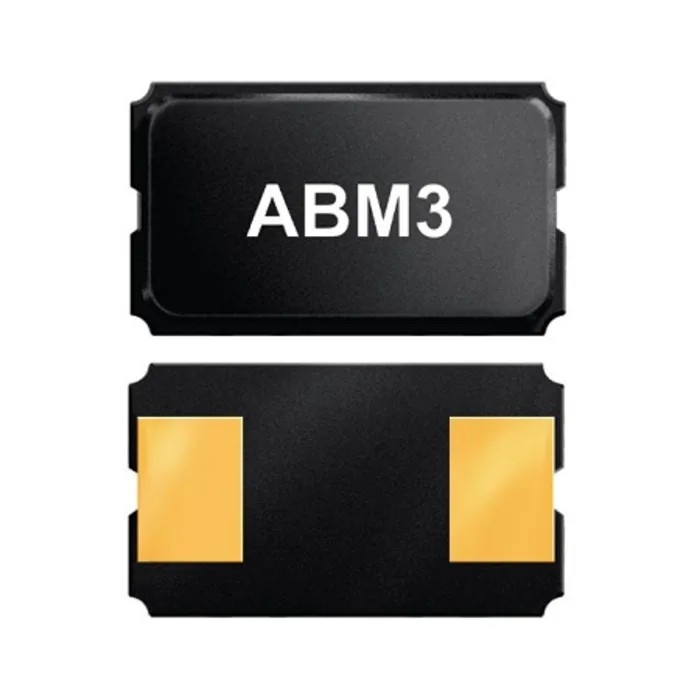

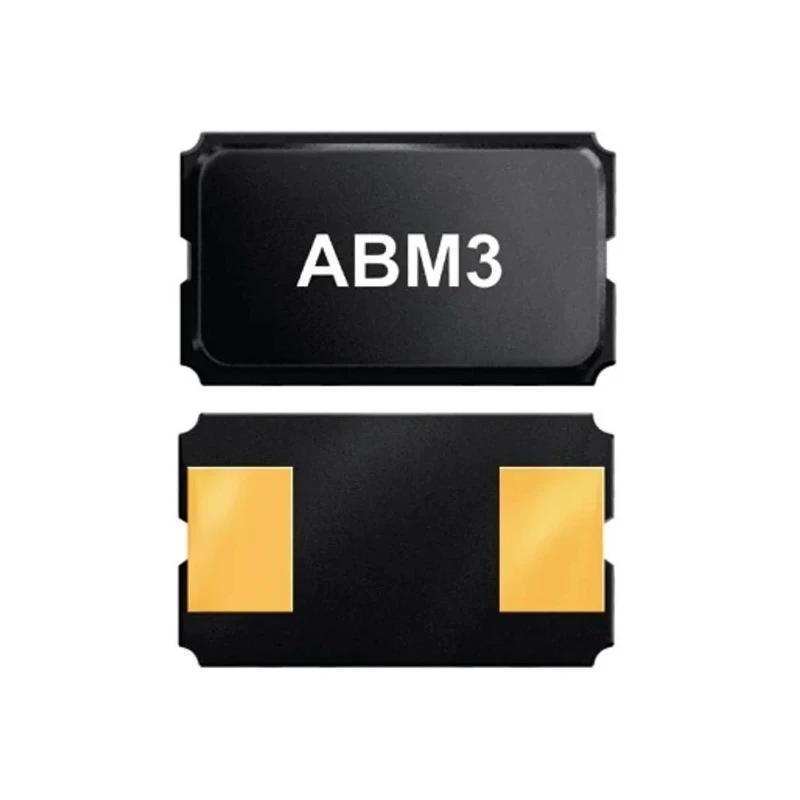

Abracon 10 MHz Surface Mount Crystal Unit ±50 ppm 2-Pin Tape & Reel ABM3-10.000MHZ-D2Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ABM3-10.000MHZ-D2Y-T |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3 |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 10MHz |
| Load Capacitance | 18pF |
| Series Resistance | 60Ω |
Key Features
- Standard frequency of 10 MHz with ±50 ppm frequency tolerance.
- Surface mount package with 2 pins, sized 5 mm x 3.2 mm x 1.3 mm.
- Hermetically sealed ceramic package ensuring moisture resistance and stability.
- Suitable operating temperature range from -10°C to 60°C.
- Equivalent series resistance of 60 Ω for reliable signal performance.
- Load capacitance of 18 pF matched for optimal circuit integration.
- Complies with RoHS standards for environmental safety.
- Packaged on tape and reel for efficient automated assembly processes.
Product Description
The Abracon ABM3-10.000MHZ-D2Y-T is a 10 MHz crystal unit designed for precise frequency control in a variety of electronic applications. Featuring an AT-cut fundamental or 3rd overtone mode, this crystal is hermetically sealed within a ceramic surface mount package to provide excellent reliability and protection against moisture.
With a frequency tolerance and stability of ±50 ppm, this crystal unit is suited for use in communication devices, cellular telephones, pagers, test equipment, PCMCIA cards, and wireless applications, where consistent and accurate oscillation frequency is critical.
The device has a 2-pin surface mount form factor with dimensions of 5 mm length, 3.2 mm width, and 1.3 mm height. It operates efficiently over a temperature range of -10°C to 60°C, ensuring performance stability under varying environmental conditions.
Its equivalent series resistance of 60 Ω and load capacitance of 18 pF align it well for integration into standard crystal oscillator circuits. This crystal is compliant with RoHS standards, supporting environmentally responsible electronic manufacturing.
Standard frequency of 10 MHz with ±50 ppm tolerance ensures accurate timing. Surface mount packaging enables compact PCB assembly and efficient automation. Hermetically sealed ceramic package protects the crystal element from moisture and contaminants.
Wide operating temperature range suited for commercial electronics applications. Packaged in tape and reel format for streamlined manufacturing processes. High precision and stability critical for communication and test equipment.
Compatible with RoHS reflow profile for lead-free soldering. 2-pin design allows easy integration into standard oscillator circuits.
This Abracon Crystal Unit is an essential component for industrial, telecommunications, consumer electronics, and embedded systems requiring stable and reliable frequency sources. Explore Abracon products and components within the EnvMart catalog for optimized electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 10 MHz.
This model has dimensions of 5 mm in length, 3.2 mm in width, and 1.3 mm in height.
The load capacitance for this crystal unit is 18 pF, which is matched for optimal circuit integration.
The equivalent series resistance of this model is 60 Ω, ensuring reliable signal performance.
It operates efficiently over a temperature range from -10°C to 60°C.
The crystal unit is packaged on tape and reel, which facilitates efficient automated assembly processes.
This model uses a surface mount type for easy integration into PCB designs.
Yes, it complies with RoHS standards for environmental safety.
It is suitable for use in communication devices, cellular telephones, pagers, test equipment, PCMCIA cards, and wireless applications.
This model features a pin count of 2, allowing for straightforward integration into standard oscillator circuits.
This crystal unit belongs to the ABM3 series, designed for precise frequency control.
The country of origin for this crystal unit is India.
