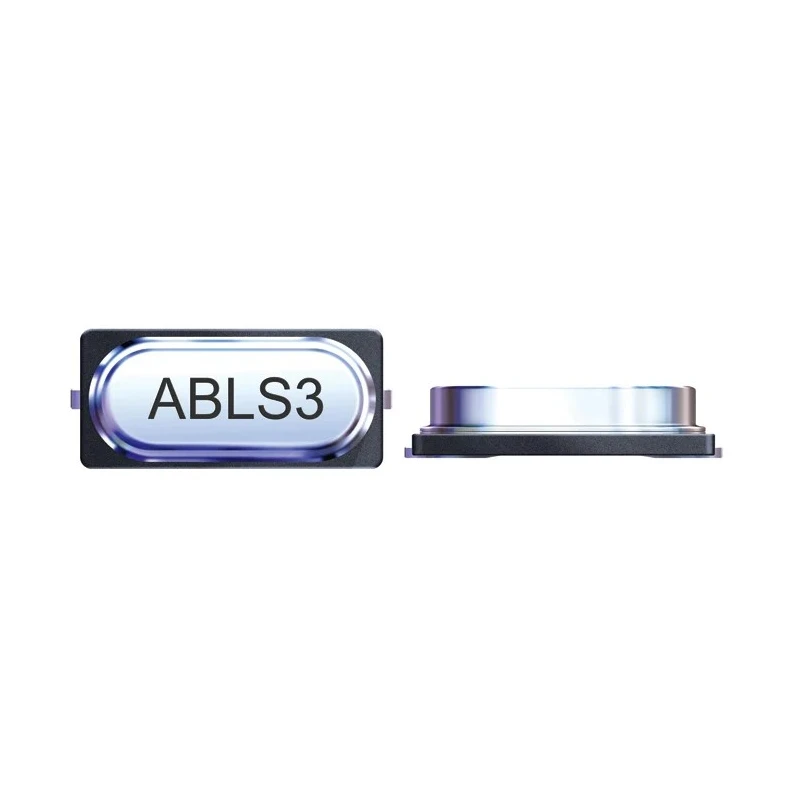

Abracon 12 MHz Crystal Unit ±30 ppm HC-49-US 2-Pin 2.7 mm Height 11.4 mm Length 4.7 mm Width ABLS3-12.000MHZ-D4Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 2.7mm |
| Length | 11.4mm |
| Model | ABLS3-12.000MHZ-D4Y-T |
| Packaging | Tape & Reel |
| Width | 4.7mm |
| Mount Type | Surface |
| Series | ABLS3 |
| Maximum Operating Temperature | 70°C |
| Package Type | HC-49-US |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 12MHz |
| Load Capacitance | 18pF |
| Series Resistance | 50Ω |
Key Features
- Standard frequency of 12 MHz ensures stable oscillator operation.
- Surface mount type for compact PCB assembly.
- Load capacitance of 18 pF optimized for circuit performance.
- Package is HC-49-US with 2 pins for easy integration.
- Operates reliably between 0°C to 70°C operating temperature range.
- Series resistance of 50 Ω ensures signal integrity.
- Complies with RoHS standards and is lead free, supporting environmental safety.
- Packaged in tape and reel format suitable for automated manufacturing.
Product Description
Abracon ABLS3-12.000MHZ-D4Y-T 12 MHz Crystal Unit is designed for a wide range of electronics applications including computers, modems, microprocessors, and wireless devices. This surface mount crystal ensures precise frequency stability with a tolerance of ±30 ppm and frequency stability of ±50 ppm.
Its HC-49-US package type and low profile dimensions (11.4 mm length, 4.7 mm width, and 2.7 mm height) make it well-suited for compact circuit board designs. With a load capacitance of 18 pF and series resistance of 50 Ω, it provides reliable oscillator performance within the temperature range of 0 to 70 degrees Celsius.
The crystal unit is RoHS compliant and lead free, promoting environmental responsibility in manufacturing. It is supplied in tape and reel packaging, facilitating high-volume automated production processes.
Standard frequency of 12 MHz for accurate timing and frequency control. Surface mount package reduces footprint on PCB. Stable frequency tolerance of ±30 ppm supports precision electronics. Temperature operating range ensures versatile application.
Robust series resistance for stable signal output. Compliance with international environmental standards. Packaged for easy use in automated manufacturing lines.
This crystal unit is essential for industrial, telecommunications, computer hardware, and consumer electronics manufacturing. EnvMart users can find this reliable component ideal for designing oscillators and clock generation circuits.
Explore more Crystal Units and related components in the Electronics & Electricals category on EnvMart for your precise application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 12 MHz, ensuring accurate timing and frequency control for various applications.
The load capacitance for this model is 18 pF, which is optimized for circuit performance.
The series resistance of this crystal unit is 50 Ω, which helps ensure signal integrity.
This crystal unit operates reliably between 0°C and 70°C, making it suitable for various environments.
It is packaged in tape and reel format, which facilitates high-volume automated manufacturing processes.
The package type is HC-49-US, which is designed for easy integration into circuit boards.
This model has 2 pins, allowing for straightforward connection in electronic applications.
Yes, this crystal unit complies with RoHS standards and is lead-free, supporting environmental safety.
It is suitable for a wide range of electronics applications, including computers, modems, microprocessors, and wireless devices.
The dimensions are 11.4 mm in length, 4.7 mm in width, and 2.7 mm in height, making it compact for PCB assembly.
This model belongs to the ABLS3 series, which is designed for various electronic applications.
The frequency stability of this model is ±50 ppm, ensuring precise frequency control.
