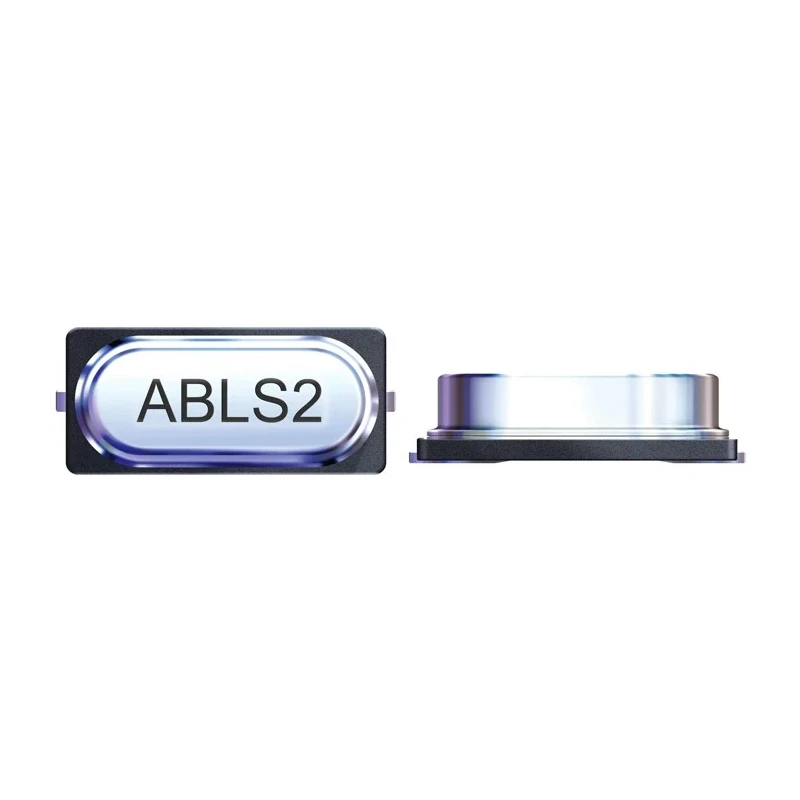

Abracon 3.579545 MHz Crystal Unit ±30 ppm Surface Mount HC-49-US Package 2-Pin 3.3 mm Height 11.4 mm ABLS2-3.579545MHZ-D4Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3.3mm |
| Length | 11.4mm |
| Model | ABLS2-3.579545MHZ-D4Y-T |
| Packaging | Tape & Reel |
| Width | 4.7mm |
| Mount Type | Surface |
| Series | ABLS2 |
| Maximum Operating Temperature | 70°C |
| Package Type | HC-49-US |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 3.579545MHz |
| Load Capacitance | 18pF |
| Series Resistance | 180Ω |
Key Features
- The crystal unit operates with a standard frequency of 3.579545 MHz.
- It has a load capacitance of 18 pF for precise frequency control.
- The device is packaged in tape and reel format for efficient automated assembly.
- The physical dimensions are 11.4 mm length, 4.7 mm width, and 3.3 mm height.
- Rated for operation between 0°C and 70°C, suitable for industrial environments.
- It features a 2-pin configuration compatible with surface mounting technology.
- The frequency stability is ±50 ppm under specified conditions.
- Series resistance is specified at 180 Ω to ensure proper oscillator functionality.
Product Description
Abracon ABLS2-3.579545MHZ-D4Y-T 3.579545 MHz Crystal Unit is a surface mount electronic component designed for stable frequency control in various applications. Featuring a frequency tolerance of ±30 ppm and housed in a HC-49-US package with a low profile height of 3.3 mm, it is suitable for compact and precision electronics.
This crystal unit operates at a standard frequency of 3.579545 MHz and has a load capacitance of 18 pF, making it ideal for use in microprocessor clock oscillators, modems, and wireless applications. The 2-pin surface mount configuration allows for efficient automated PCB assembly.
Physically, the unit measures 11.4 mm in length and 4.7 mm in width, with a maximum operating temperature of 70°C and a minimum of 0°C, accommodating a range of industrial environments. The device offers frequency stability of ±50 ppm and series resistance of 180 Ω, enhancing oscillator performance.
The ABLS2 series crystal adheres to RoHS environmental standards and is lead-free, supporting green electronics manufacturing practices. Supplied in tape and reel packaging, it is ready for high-volume surface mount production processes.
The crystal unit operates at a precise frequency of 3.579545 MHz. Load capacitance is rated at 18 pF for stable oscillations. Tape and reel packaging supports efficient manufacturing workflows. Dimensions support compact PCB designs with a height of 3.3 mm.
Operating temperature range suits diverse industrial applications. 2-pin surface mount design facilitates automated assembly. Frequency tolerance ±30 ppm and stability ±50 ppm enhance signal reliability. Series resistance of 180 Ω ensures compatibility with oscillator circuits.
RoHS compliant and lead-free construction promotes environmental safety.
This Abracon crystal unit is extensively used in industrial, telecommunications, computing, and wireless electronics for precise timing and frequency control. Its compact size and reliable specifications make it well-suited for modern electronic manufacturing and assembly lines.
Explore more specialized electronic components and Crystal Units within EnvMart to find complementary parts for your projects and applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 3.579545 MHz.
The load capacitance of this model is 18 pF, which is essential for stable frequency control.
This crystal unit measures 11.4 mm in length, 4.7 mm in width, and has a height of 3.3 mm.
The maximum operating temperature for this model is 70°C.
It is packaged in tape and reel format, which supports efficient automated assembly.
The frequency stability of this crystal unit is ±50 ppm under specified conditions.
This model features a 2-pin configuration, compatible with surface mounting technology.
The series resistance of this crystal unit is specified at 180 Ω, ensuring proper oscillator functionality.
The minimum operating temperature for this model is 0°C.
Yes, this crystal unit adheres to RoHS environmental standards and is lead-free.
This crystal unit is suitable for applications in microprocessor clock oscillators, modems, and wireless electronics.
The package type of this crystal unit is HC-49-US, which is designed for low-profile applications.
