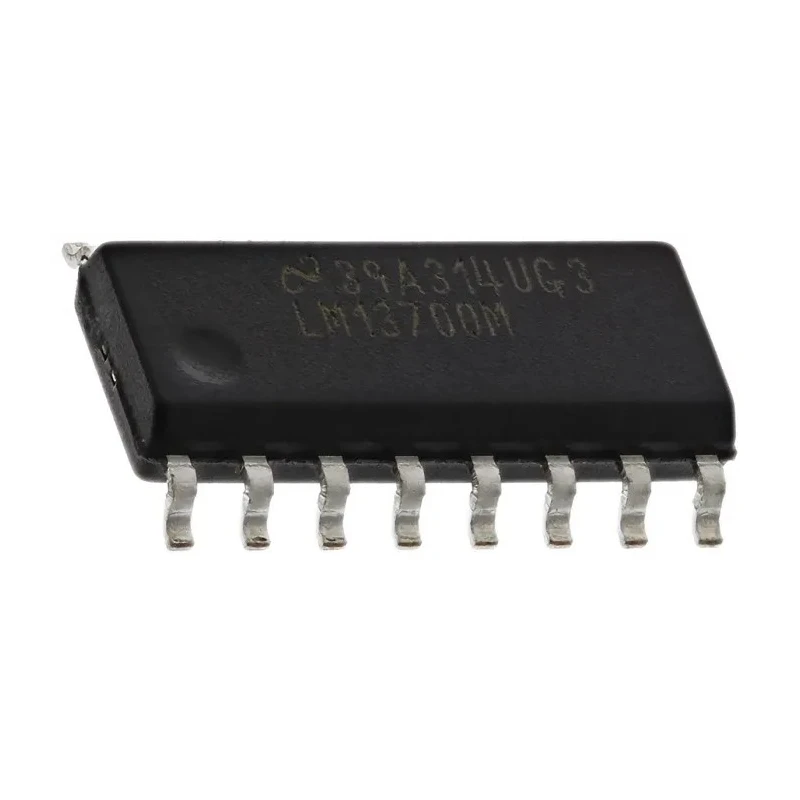

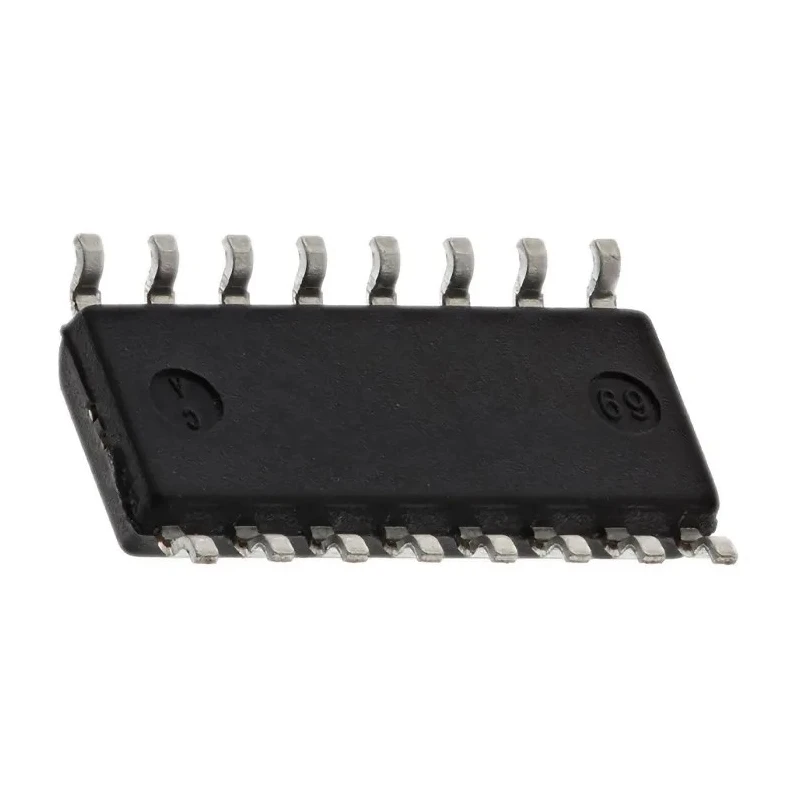

Texas Instruments Operational Amplifier 2 MHz 16-Pin 32V SOIC LM13700M/NOPB
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 9.91mm |
| Model | LM13700M/NOPB |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | LM13700 |
| Output Current | 20mA |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Maximum Supply Voltage | 32V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 2MHz |
| Input Bias Current | 5 μA |
| Vos - Input Offset Voltage | 4 mV |
| Slew Rate | 50V/μs |
| Input Offset Current | 0.6 μA |
| Transconductance amplifier,LM13700MBrand | National Semiconductor |
Key Features
- Offers dual-channel operation for versatile analog signal processing.
- Operates with a supply voltage range from 3V to 32V.
- Provides an output current capability of up to 20mA.
- Exhibits a high slew rate of 50V/μs for fast response.
- Features low input bias current of 5 μA for precision applications.
- Supports operating temperatures from 0°C to 70°C suitable for industrial environments.
- Compact dimensions with a length of 9.91mm, width of 3.91mm, and height of 1.45mm.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
Texas Instruments LM13700M/NOPB Operational Amplifier is a high-performance transconductance amplifier designed for surface-mount applications in a 16-Pin SOIC package. It features a gain bandwidth product of 2 MHz and a dual-channel configuration providing excellent versatility for analog signal processing tasks.
Operating within a supply voltage range of 3V to 32V and capable of delivering 20mA output current, this operational amplifier supports fast signal transitions with a slew rate of 50V/μs and a low input bias current of 5 μA. The input offset voltage of 4 mV and low input offset current of 0.6 μA make it suitable for precision analog circuits.
Compact dimensions measuring 9.91mm in length, 3.91mm in width, and 1.45mm in height enable efficient PCB layout design for industrial and commercial electronics.
Designed for applications such as filters, oscillators, multipliers, and variable gain cells, the LM13700M/NOPB is ideal for voltage or current controlled analog circuits in industrial, manufacturing, and electronic instrumentation sectors.
This model complies with RoHS standards and is manufactured in Malaysia, ensuring both environmental and quality assurance standards. Dual channel operational transconductance amplifier functionality. Wide operating voltage range suitable for multiple applications.
High-speed slew rate providing fast and accurate signal transitions. Low input currents for enhanced precision and reduced power consumption. Compact SOIC package facilitating surface mounting on various PCB configurations.
RoHS compliant ensuring reduced environmental impact. Manufactured in Malaysia, verifying production quality. Versatile usage in industrial, laboratory, and electronic device manufacturing applications. Reliable performance within operating temperature range of 0°C to 70°C.
Ideal for use in filter, oscillator, and amplifier circuits requiring controlled transconductance. Explore more Operational Amplifiers and semiconductor components at EnvMart for your industrial and electronics project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM13700M/NOPB has a gain bandwidth product of 2 MHz, which supports its performance in various analog signal processing applications.
It operates within a supply voltage range of 3V to 32V, making it versatile for different applications.
This operational amplifier can deliver an output current of up to 20mA, suitable for driving various loads in circuits.
The LM13700M/NOPB exhibits a high slew rate of 50V/μs, allowing for fast signal transitions.
It has compact dimensions of 9.91mm in length, 3.91mm in width, and 1.45mm in height, facilitating efficient PCB layout design.
The input bias current is 5 μA, which contributes to its precision in analog applications.
The input offset voltage is 4 mV, making it suitable for precision analog circuits.
It operates within a temperature range of 0°C to 70°C, suitable for industrial environments.
The LM13700M/NOPB is packaged in a 16-Pin SOIC format, designed for surface-mount applications.
Yes, it complies with RoHS standards, ensuring reduced environmental impact and safety.
It is ideal for applications such as filters, oscillators, multipliers, and variable gain cells in various electronic devices.
This model features a dual-channel configuration, providing versatility for various analog signal processing tasks.
