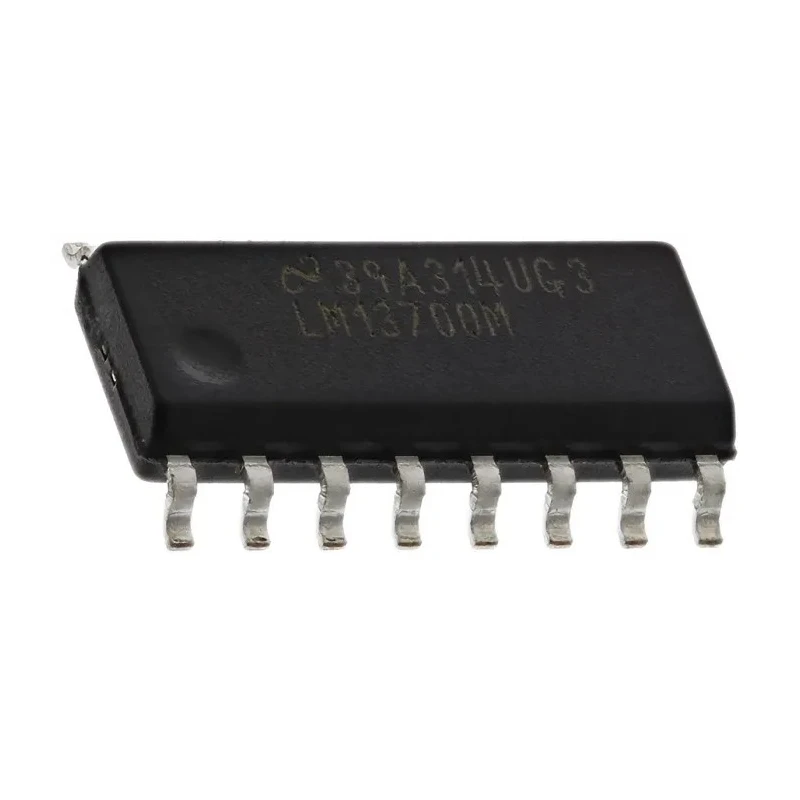

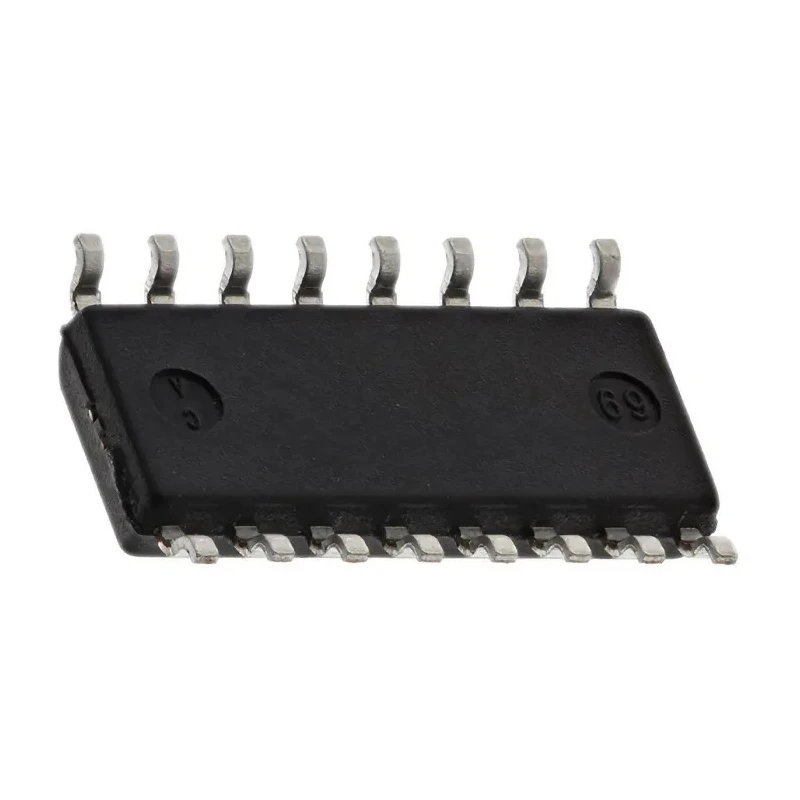

Texas Instruments Operational Amplifier 2 MHz Gain Bandwidth Product 16-Pin SOIC Surface Mount LM13700M/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 9.91mm |
| Model | LM13700M/NOPB |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | LM13700 |
| Output Current | 20mA |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Maximum Supply Voltage | 32V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 2MHz |
| Input Bias Current | 5 μA |
| Vos - Input Offset Voltage | 4 mV |
| Slew Rate | 50V/μs |
| Input Offset Current | 0.6 μA |
Key Features
- Designed with a gain bandwidth product of 2 MHz for high-speed amplification.
- Operates at a supply voltage range from 3V to 32V for versatile applications.
- Compact 16-pin SOIC package suitable for surface mount technology.
- Supports dual-channel operation to enhance circuit functionality.
- Includes an input bias current of 5 µA and input offset voltage of 4 mV for precision control.
- Features a slew rate of 50 V/µs allowing rapid response in signal processing.
- Operational temperature range from 0°C to 70°C ensuring reliability in typical environments.
- Output current capability of 20 mA suitable for various analog circuits.
Product Description
The Texas Instruments LM13700M/NOPB is a high-performance operational amplifier designed for a wide range of electronic applications. It offers a gain bandwidth product of 2 MHz, making it ideal for high-speed signal processing tasks. The device is housed in a compact 16-pin SOIC package and utilizes surface mount technology, facilitating integration into modern electronic designs.
Its ability to operate across a supply voltage from 3V up to 32V provides design flexibility for various power environments. Incorporating dual channels, this operational amplifier enhances circuit complexity and functionality by enabling dual-signal processing.
Key electrical characteristics include an input bias current of 5 microamperes and an input offset voltage of 4 millivolts, contributing to precision amplification. Its slew rate of 50 volts per microsecond supports rapid changes in input signals, ensuring accurate and fast transient response.
The LM13700M/NOPB is designed to work reliably within a temperature range of 0°C to 70°C, suitable for most commercial and industrial environments. With an output current driver capability of 20 milliamperes, the amplifier efficiently feeds loads in analog circuits.
This operational amplifier is RoHS compliant, guaranteeing it meets the necessary environmental regulations for electronic products. Physically, it measures 9.91 mm in length, 3.91 mm in width, and 1.45 mm in height, making it well-suited for compact printed circuit boards.
Typical applications of the LM13700M/NOPB include filters, oscillators, voltage-controlled amplifiers, multipliers, and variable gain cells in electronic circuit designs. It is essential for use in industrial, consumer electronics, instrumentation, and communications systems.
EnvMart provides this Texas Instruments Operational Amplifier as a reliable component for designers and engineers seeking precision and efficiency in their analog circuit projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM13700M/NOPB has a gain bandwidth product of 2 MHz, making it suitable for high-speed amplification tasks.
It operates at a supply voltage range from 3V to 32V, providing flexibility for various applications.
This operational amplifier supports dual-channel operation, enhancing its functionality in circuit designs.
The output current capability is 20 mA, suitable for driving loads in analog circuits.
It features a slew rate of 50 V/µs, allowing for rapid response in signal processing applications.
The device measures 9.91 mm in length, 3.91 mm in width, and 1.45 mm in height, making it compact for surface mount applications.
The input bias current is 5 µA, contributing to its precision in amplification tasks.
It has an input offset voltage of 4 mV, which helps in maintaining accuracy in signal processing.
The LM13700M/NOPB operates reliably within a temperature range of 0°C to 70°C.
It is housed in a compact 16-pin SOIC package, suitable for surface mount technology.
Yes, this operational amplifier is RoHS compliant, ensuring it meets environmental regulations for electronic products.
Typical applications include filters, oscillators, voltage-controlled amplifiers, multipliers, and variable gain cells in electronic circuit designs.
