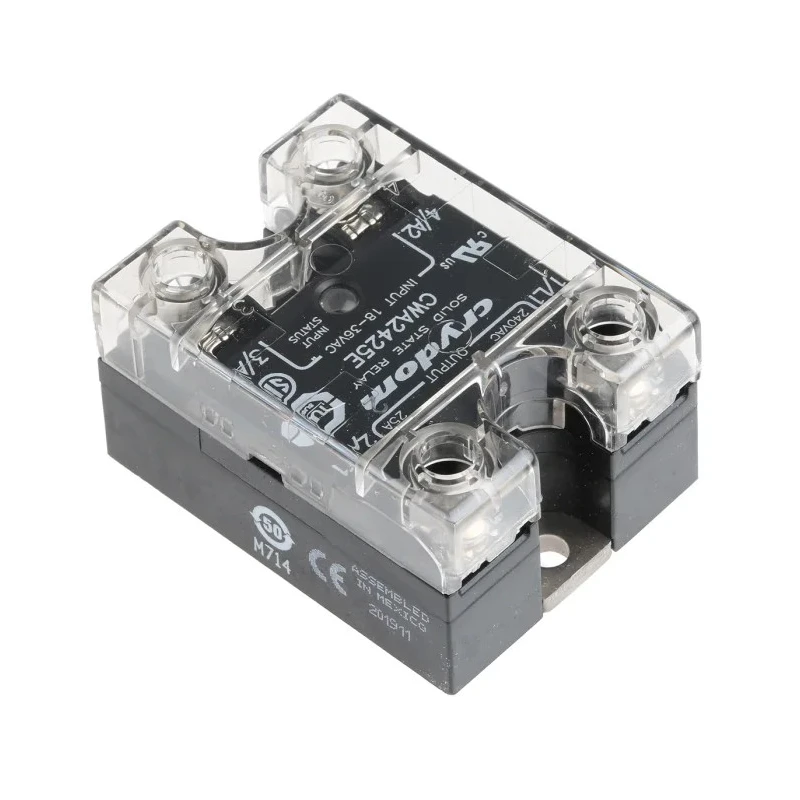

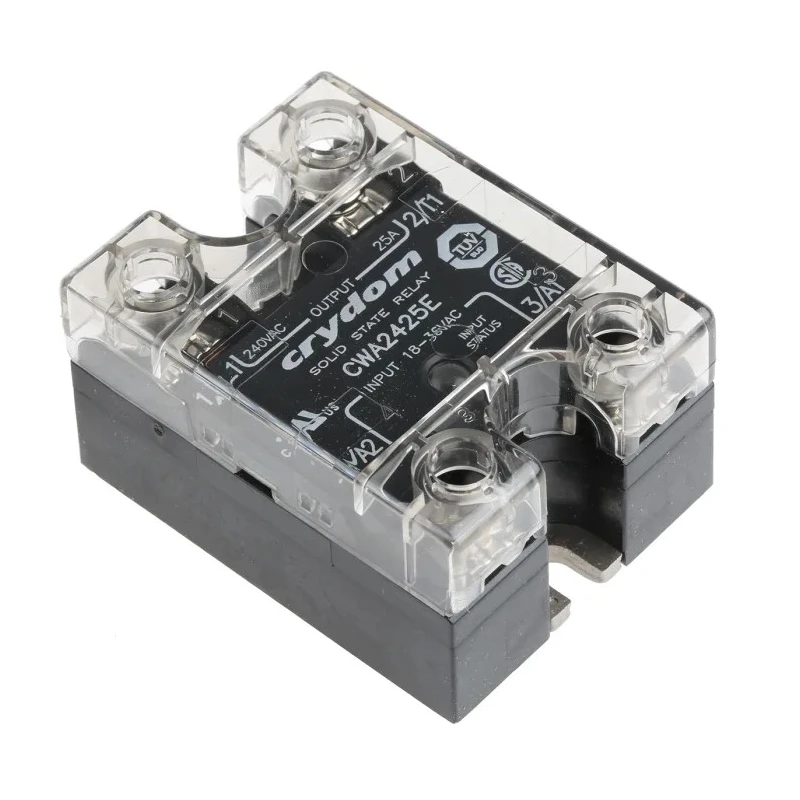

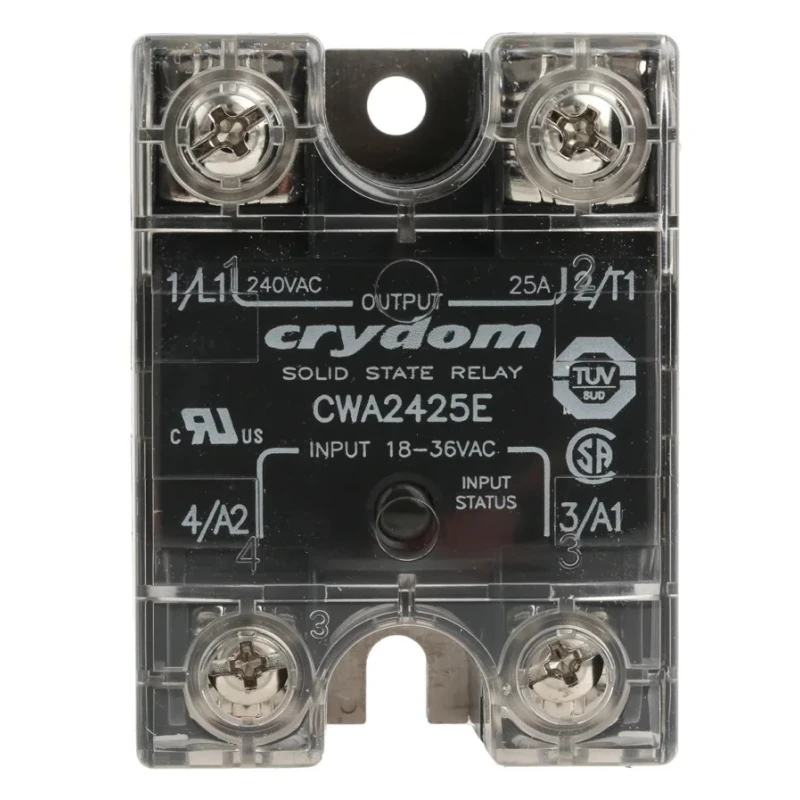

Crydom Solid State Relay CW24 Series Panel Mount 25 A Load 280 Vrms Load 36Vrms Control CW24
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 33mm |
| Length | 45.7mm |
| Model | CW24 |
| IP Rating | IP20 |
| Width | 22mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | CW24 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | CE, RoHS |
| Minimum Load Voltage | 24V |
| Minimum Control Voltage | 18V ac |
| Off State Leakage Current | 1mArms |
Key Features
- The solid state relay operates with zero voltage switching to minimize component stress.
- It features a screw terminal type for secure electrical connections.
- The device offers IP20 protection with a removable touch-safe cover.
- Operational temperature range is from -40°C to 80°C, suitable for harsh industrial environments.
- A green LED indicator provides easy operational status monitoring.
- The relay supports a minimum control voltage of 18V AC and a maximum control voltage of 36 Vrms.
- Output is of the SCR type with single pole single throw (SPST) contact configuration.
- Its compact size measures 45.7 mm length, 33 mm height, and 22 mm width.
Product Description
Crydom CW24 Series Solid State Relay (Model: CW24) is a robust, panel mount electrical automation component. It supports a maximum load current of 25 A with a maximum load voltage of 280 Vrms and control voltage range from 18V AC to 36 Vrms. Designed with zero voltage switching function, it minimizes electrical noise and prolongs component life, ideal for resistive load switching.
The relay features a durable screw terminal for reliable connections and an IP20-rated removable cover that ensures touch-safe operation while protecting against intrusion by solid objects over 12 mm. The relay's output type is SCR with SPST contact configuration suitable for various industrial automation tasks including motor control and machine automation.
The device operates over a wide temperature range from -40°C to 80°C, making it suitable for harsh operating conditions. Its compact dimensions of 45.7 mm length, 33 mm height, and 22 mm width allow for efficient panel integration. A green LED indicator facilitates easy monitoring of the relay status.
Additional features include low off-state leakage current of 1 mArms and low output capacitance of 8 pF, enhancing its electrical performance and reliability. This solid state relay complies with CE and RoHS standards, affirming its quality and safety. It is manufactured in Mexico.
The solid state relay operates with zero voltage switching to reduce electromagnetic interference. Panel mount design allows easy installation in control panels. IP20 touch-safe removable cover ensures user safety and component protection.
Screw terminal connection for secure wiring and reliable operation. Wide operating temperature range supports industrial use in various environments. Green LED indicator aids in visual status checking. Compact size for efficient use of panel space.
Low off state leakage current enhances circuit protection. Compliant with CE and RoHS standards for safety and environmental considerations. Suitable for motor control and machine automation applications. Explore more reliable Solid State Relays and industrial automation components in the Electronics & Electricals category at EnvMart for your control panel and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 25 A.
The control voltage range for this relay is from 18V AC to 36 Vrms.
This unit measures 45.7 mm in length, 33 mm in height, and 22 mm in width.
It features an SCR output type with a single pole single throw (SPST) contact configuration.
The operational temperature range is from -40°C to 80°C.
This solid state relay is designed for panel mounting.
It uses a screw terminal type for secure electrical connections.
Yes, it has an IP20 rating with a removable touch-safe cover for user safety and component protection.
The off-state leakage current is 1 mArms.
It complies with CE and RoHS standards, ensuring quality and safety.
The relay operates with zero voltage switching to minimize electromagnetic interference.
This model is manufactured in Mexico.
