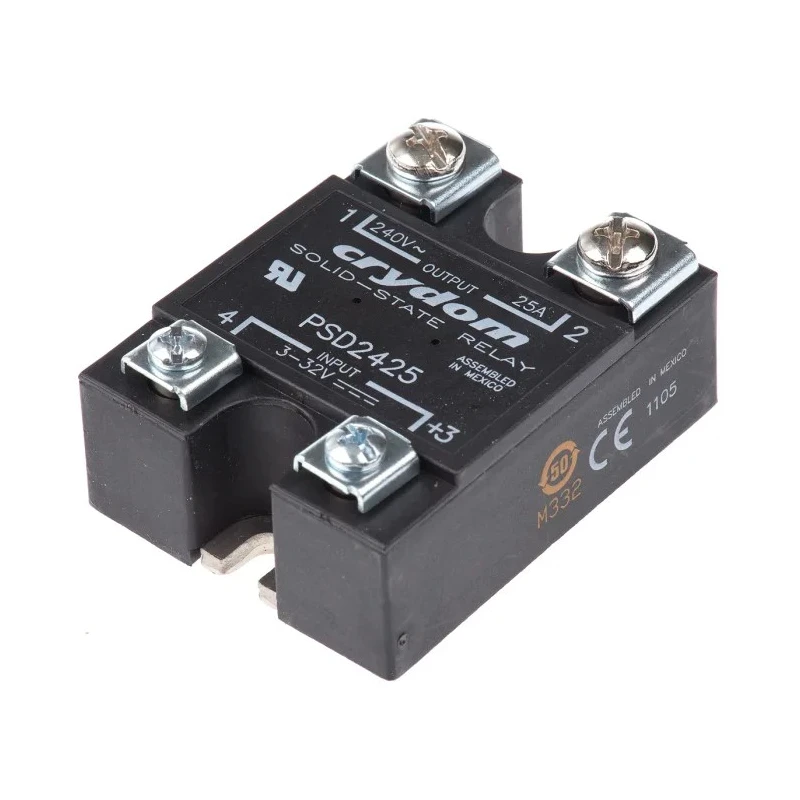

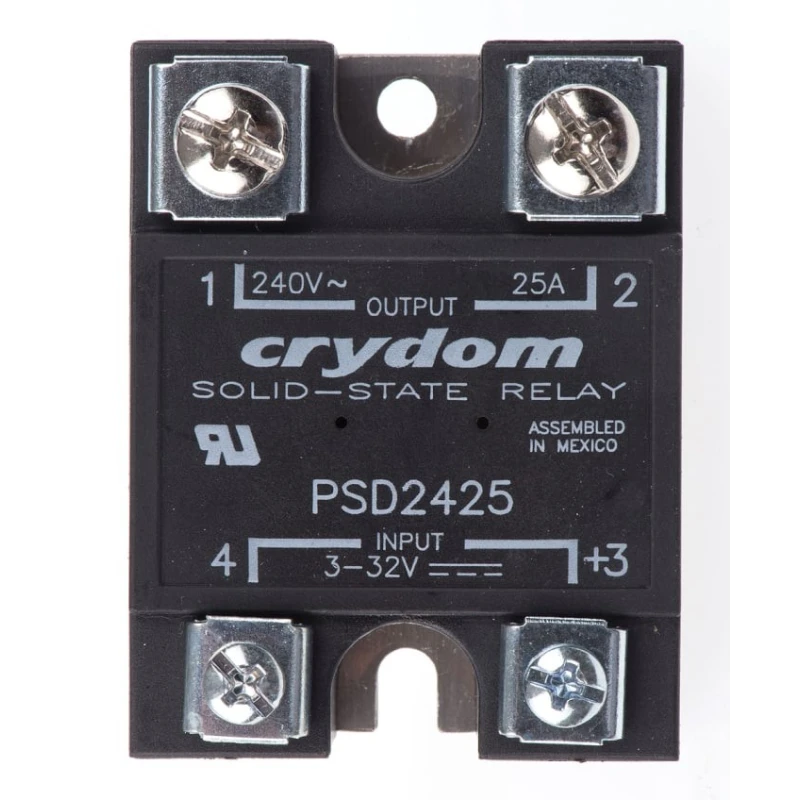

Crydom Solid State Relay Panel Mount 25A Load, 280 Vrms Load, 32V Control PSD2425
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 23mm |
| Length | 45.7mm |
| Model | PSD2425 |
| IP Rating | IP20 |
| Width | 22mm |
| Mount Type | Panel |
| Output type | SCR |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | CE, RoHS |
| Minimum Load Voltage | 24V |
| Minimum Control Voltage | 3V |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 1mA |
Key Features
- Suitable for panel mounting applications in industrial and automation systems.
- Supports maximum load current of 25 Amperes and load voltage up to 280 Vrms.
- Controlled with a minimum voltage of 3V and maximum of 32V for precise operation.
- Features screw terminal type and SPST contact configuration for reliable connections.
- Temperature operating range from -40°C to 80°C allowing use in varied environments.
- Zero voltage switching functionality reduces electrical noise and extends relay life.
- Compact dimensions of approximately 23mm height, 22mm width, and 45.7mm length.
- Designed with IP20 rating providing protection against solid objects over 12mm but no liquid protection.
Product Description
Crydom PSD2425 Solid State Relay is a high-performance panel mount relay designed for industrial automation, control panels, and numerous electrical applications requiring efficient AC switching. It supports a load capacity of 25 Amperes with a maximum RMS load voltage of 280 volts, suitable for switching AC loads reliably.
The relay operates with control voltages ranging from 3 to 32 volts and features a screw terminal interface with a SPST contact configuration to facilitate secure and stable electrical connections. Its zero voltage switching function minimizes electrical noise and enhances the overall durability and reliability of connected equipment.
With a compact build measuring 23mm in height, 22mm in width, and 45.7mm in length, this relay is easy to integrate into panel-mounted installations. The device operates across a broad temperature range from -40°C to 80°C, enabling deployment in harsh industrial environments. It comes with an IP20 protection rating, shielding against solid objects larger than 12mm.
The output utilizes an SCR type and features a minimal capacitance of 8 pF, supporting efficient load switching while minimizing leakage current (1mA off-state leakage). This model complies with CE and RoHS standards, ensuring it meets European safety and environmental regulations.
Applications include use in automation systems, HVAC controls, manufacturing processes, and other industrial equipment requiring reliable solid state switching with minimal maintenance.
Suitable for panel mounting in control and automation systems. 25 Amp maximum load current at 280 Vrms for AC switching. Control voltage range is 3 V to 32 V for precise actuation. Zero voltage switching for reduced electrical noise.
Operating temperature from -40°C to 80°C accommodates harsh environments. Compact dimensions for easy panel integration. Compliant with CE and RoHS standards.
For industrial and electrical professionals seeking reliable solid state relays, Crydom PSD2425 offers robust performance and operational versatility. Explore more Solid State Relay options at EnvMart for your diverse electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The solid state relay supports a maximum load current of 25 Amperes and a maximum load voltage of 280 Vrms.
It operates with control voltages ranging from 3V to 32V for precise actuation.
This model operates within a temperature range of -40°C to 80°C, making it suitable for harsh environments.
It features zero voltage switching functionality, which reduces electrical noise and enhances relay life.
The relay measures approximately 23mm in height, 22mm in width, and 45.7mm in length.
It has an SPST (Single Pole Single Throw) contact configuration for reliable connections.
The relay has an IP20 rating, providing protection against solid objects larger than 12mm but no liquid protection.
It features a screw terminal type for secure electrical connections.
This model complies with CE and RoHS standards, ensuring it meets European safety and environmental regulations.
The off-state leakage current is 1mA, which helps in minimizing energy loss when the relay is not in operation.
It utilizes an SCR (Silicon Controlled Rectifier) output type for efficient load switching.
It is suitable for use in automation systems, HVAC controls, manufacturing processes, and other industrial equipment requiring reliable solid state switching.
