Texas Instruments Operational Amplifier 5 MHz 5-Pin 5V SOT-23 LMV751M5/NOPB

Texas Instruments LMV751M5/NOPB Operational Amplifier is a precision low voltage CMOS operational amplifier from the LMV/TLV series. Its 5 MHz gain bandwidth product and 2.3 V/μs slew rate make it suitable for high-speed signal amplification in electronic circuits.

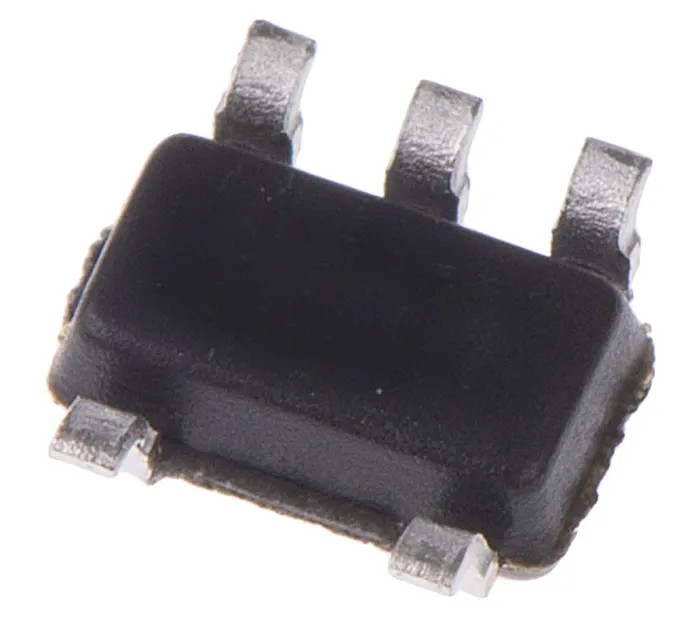

This device is housed in a 5-pin SOT-23 surface mount package, measuring 2.92 mm in length, 1.6 mm in width, and 1.02 mm in height, making it ideal for compact PCB designs where space is a constraint.

The operational amplifier works reliably within a supply voltage range of 3 V to 5 V and can operate at temperatures from -40°C up to 85°C, ensuring performance in varying environmental conditions.

Key electrical characteristics include a low input offset voltage of 1 mV, input bias current of 100 pA, and an output current capability of 6 mA. Its low input offset current of 0.2 pA further enhances signal integrity for sensitive measurements.

The product is compliant with RoHS, ensuring it meets environmental and safety standards required in industrial and commercial electronics manufacturing.

This operational amplifier is suitable for industrial, laboratory, and electronics manufacturing applications requiring reliable, high-speed analog signal processing in compact designs.

Operates with a maximum supply voltage of 5 volts. Features a gain bandwidth product of 5 MHz for fast signal processing. Input offset voltage is low at 1 millivolt for precision applications. Slew rate of 2.3 volts per microsecond ensures quick response times.

Input bias current is minimal at 100 picoamperes, reducing signal distortion. Maximum operating temperature rated up to 85 degrees Celsius for durability. Compact physical dimensions with 2.92 mm length, 1.6 mm width, and 1.02 mm height.

Output current capacity of 6 mA suitable for typical operational amplifier loads. Single channel device with 5 pins, ideal for integration into compact circuit designs. Compliant with RoHS standards ensuring environmental safety.
