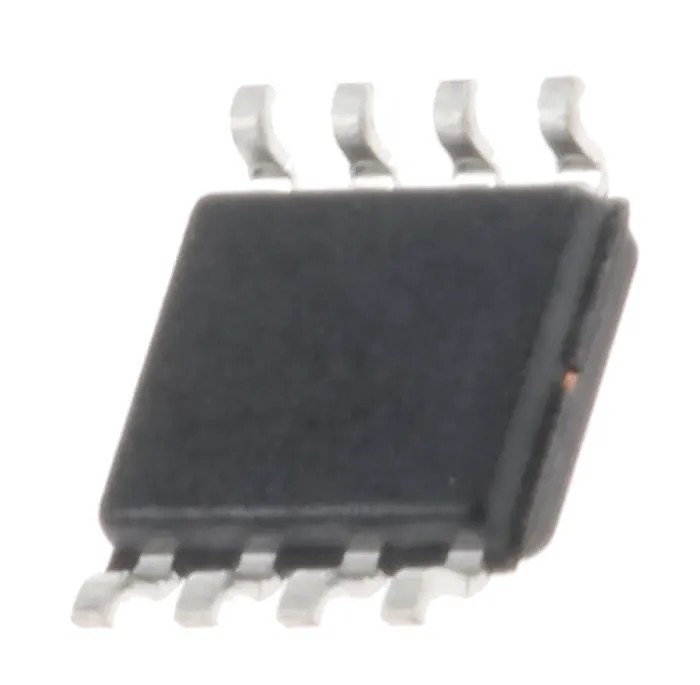

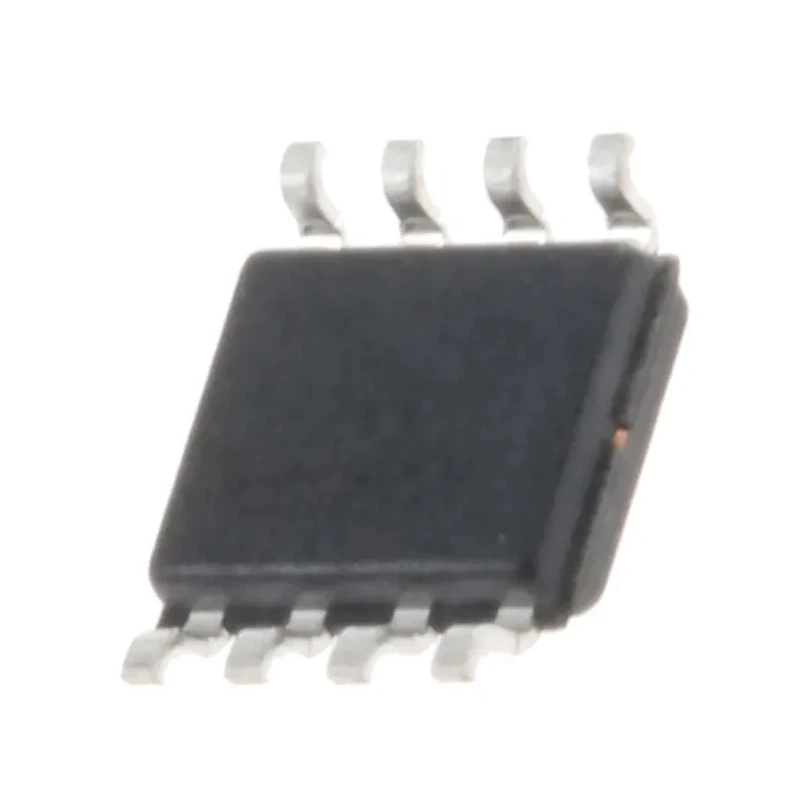

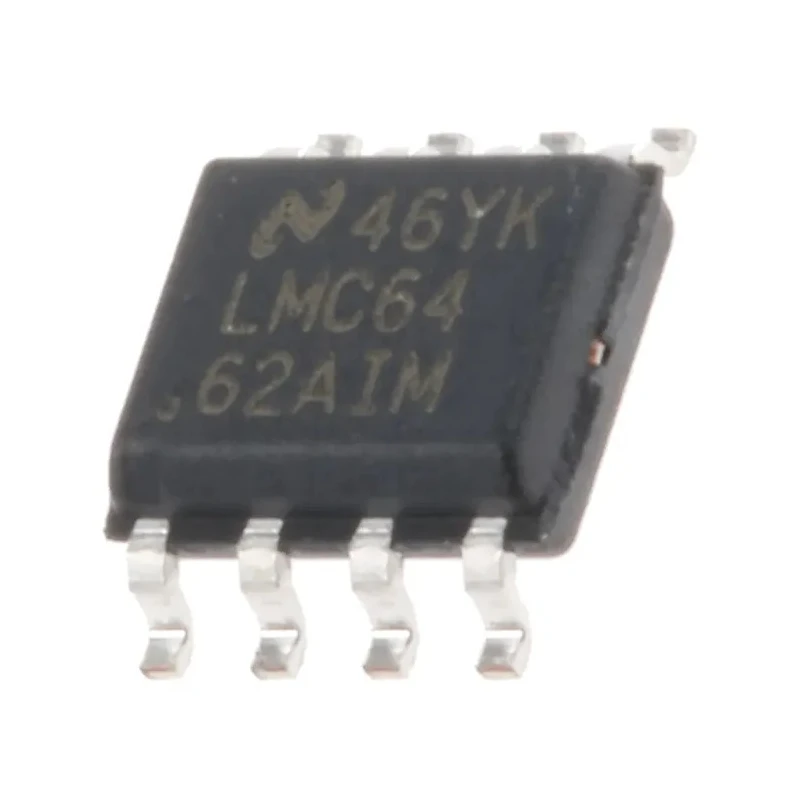

Texas Instruments Operational Amplifier 50 kHz 8-Pin SOIC 15.5V LMC6462AIM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | LMC6462AIM/NOPB |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | LMC6462 |
| Output Current | 19mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 15.5V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 50kHz |
| Input Bias Current | 10 pA |
| Vos - Input Offset Voltage | 2.7 mV |
| Slew Rate | 0.03V/μs |
| Input Offset Current | 5 pA |
Key Features
- The device is a CMOS operational amplifier in a compact SOIC surface-mount package.
- It supports a gain bandwidth product of 50 kHz suitable for general analog amplification.
- Operates with a minimum supply voltage of 5V up to a maximum of 15.5V.
- Features low input bias current of 10 pA optimizing precision applications.
- Has a maximum output current of 19 mA and low input offset voltage of 2.7 mV.
- Operating temperature range from -40°C to 85°C for robustness in diverse environments.
- Includes two amplifier channels in an 8-pin package for efficient PCB layout.
- Designed without automotive standard certification but meets standard industrial quality.
Product Description
Texas Instruments LMC6462AIM/NOPB operational amplifier is a low-power CMOS device designed for precision analog signal amplification. Featuring dual channels in an 8-pin SOIC surface mount package, it operates with supply voltages from 5V to 15.5V, providing a maximum output current of 19 mA. This amplifier is capable of a gain bandwidth product of 50 kHz, rendering it suitable for applications requiring moderate frequency response with low noise and power consumption.
Its input bias current is remarkably low at 10 pA, and input offset voltage is maintained at a minimal 2.7 mV, enhancing accuracy in instrumentation and sensor interface circuits. The device supports operating temperature ranges from -40°C to 85°C, making it appropriate for industrial environments. Its compact package dimensions (height 1.45 mm, length 4.9 mm, width 3.9 mm) facilitate integration into dense PCB assemblies.
The slew rate of 0.03 V/μs indicates controlled output voltage transitions, reducing the risk of oscillations and improving signal fidelity. Despite lacking automotive standard certification, the LMC6462 series is widely employed in laboratory, instrumentation, industrial automation, and consumer electronics applications that demand stable and precise operational amplification.
The device includes two independent CMOS operational amplifiers ensuring flexibility in circuit design. Surface mount SOIC package enables space-saving and automated PCB assembly processes. Optimized for low power consumption maximizing battery life in portable devices.
Robust electrical characteristics support use in measurement instrumentation and signal conditioning. Extensive documentation and design resources from Texas Instruments provide implementation guidance. The operational amplifier is RoHS compliant, adhering to environmental standards.
This product is ideal for engineers and designers implementing analog front end systems in industrial and electronic equipment manufacturing, providing reliable performance and ease of use. Discover similar Operational Amplifiers in the Electronics & Electricals category on EnvMart for expanded design possibilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 50 kHz, making it suitable for general analog amplification applications.
It operates with a minimum supply voltage of 5V and a maximum supply voltage of 15.5V.
The maximum output current of this operational amplifier is 19 mA.
The dimensions of the LMC6462AIM/NOPB are 1.45 mm in height, 4.9 mm in length, and 3.9 mm in width.
The input bias current is 10 pA, which optimizes it for precision applications.
The input offset voltage is 2.7 mV, enhancing accuracy in various applications.
This operational amplifier operates within a temperature range of -40°C to 85°C.
It includes two independent channels in an 8-pin package.
The slew rate for this operational amplifier is 0.03 V/μs, which helps control output voltage transitions.
It comes in a compact SOIC surface-mount package, facilitating efficient PCB layout.
Yes, this operational amplifier is RoHS compliant, adhering to environmental standards.
It is widely used in laboratory, instrumentation, industrial automation, and consumer electronics applications that require stable and precise operational amplification.
