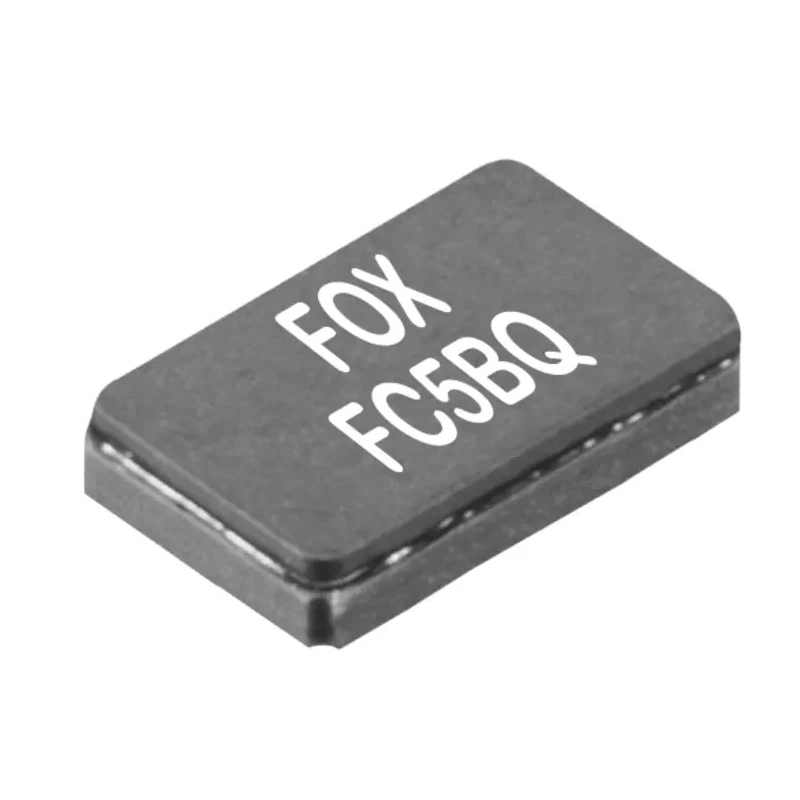

Abracon 20 MHz Crystal Unit Surface Mount 4-Pin 5 x 3.2 x 1.2 mm ±30 ppm Frequency Stability FC5BQCCMM20.0-T1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.2mm |
| Length | 5mm |
| Model | FC5BQCCMM20.0-T1 |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | FC5BQ |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 20MHz |
| Load Capacitance | 20pF |
Key Features
- Operates over a temperature range of -40°C to 85°C.
- Compact surface mount package measuring 5 x 3.2 x 1.2 mm.
- Load capacitance of 20 pF ensures stable oscillation characteristics.
- Complies with RoHS standards for hazardous substance restrictions.
- Comes in tape and reel packaging suitable for automated assembly.
- Standard frequency of 20 MHz ideal for electronic circuits requiring precise clock sources.
- Four-pin design compatible with standard surface mount technology.
Product Description
The Abracon FC5BQCCMM20.0-T1 is a precision 20 MHz crystal unit designed for surface mount applications requiring stable frequency sources with ±30 ppm frequency tolerance. The 4-pin crystal unit measures 5 mm in length, 3.2 mm in width, and 1.2 mm in height, making it suitable for compact PCB designs.
Engineered for durability and reliability, this crystal unit operates effectively over a wide temperature range from -40°C to 85°C, making it ideal for industrial, automotive (non-automotive certified but robust), telecommunication, and consumer electronics applications.
Its 20 pF load capacitance ensures electrical performance stability, crucial for timing circuits in oscillators, microcontrollers, and communication devices.
The product is compliant with RoHS and RoHS II directives, ensuring the absence of lead and other hazardous materials, enabling environmentally responsible manufacturing and assembly processes.
Packaging is provided in tape and reel format, facilitating high-speed, automated SMT assembly line processes. Operates from -40°C to 85°C temperature range. Offers ±30 ppm frequency stability for precise timing. Compact surface mount 4-pin package with dimensions 5 x 3.2 x 1.2 mm.
Load capacitance rated at 20 pF for performance consistency. RoHS compliant, lead-free construction.
This Abracon crystal unit is widely used across electronics manufacturing, industrial controls, telecommunications, and embedded systems where reliable frequency reference is critical. It is suitable for laboratory equipment, industrial instruments, and other precision electronic devices.
Explore more products in the Crystal Unit category on EnvMart to find comprehensive electronic components for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 20 MHz, making it suitable for applications requiring precise clock sources.
This model has dimensions of 5 mm in length, 3.2 mm in width, and 1.2 mm in height, which makes it compact for surface mount applications.
The load capacitance of this crystal unit is rated at 20 pF, ensuring stable oscillation characteristics for reliable performance.
It operates effectively over a temperature range from -40°C to 85°C, making it suitable for various environments.
The Abracon FC5BQCCMM20.0-T1 features a 4-pin design, compatible with standard surface mount technology.
It is packaged in tape and reel format, which facilitates high-speed automated assembly processes.
Yes, this model complies with RoHS standards, ensuring it is free from lead and other hazardous materials.
This crystal unit is suitable for industrial, automotive, telecommunication, and consumer electronics applications where reliable frequency reference is critical.
This model belongs to the FC5BQ series, which is designed for surface mount applications.
The frequency stability of this crystal unit is ±30 ppm, ensuring precise timing for various electronic circuits.
The country of origin for this crystal unit is India.
This model uses a surface mount type, making it suitable for compact PCB designs.
