Nexperia Digital Transistor 100 mA NPN, 50 V, 6-Pin SSMini PEMH13,115

Nexperia PEMH13,115 Digital Transistor is a high-quality bipolar transistor designed for surface mounting in electronic semiconductor applications. Featuring NPN transistor polarity and a maximum DC collector current of 100 mA, it is ideal for digital circuit designs requiring efficient switching and amplification.

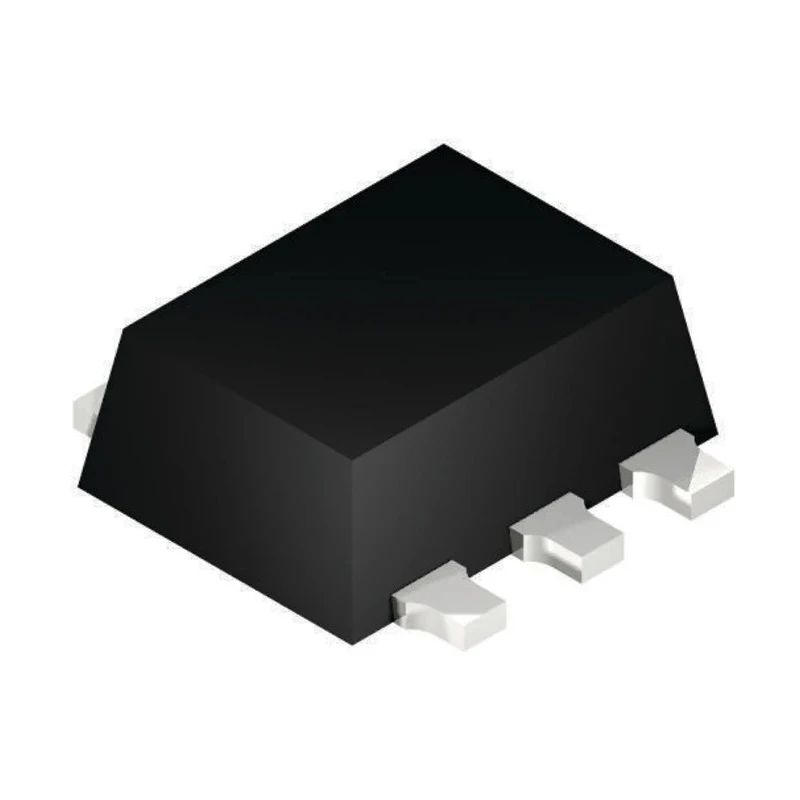

This device supports a maximum collector-emitter voltage of 50 V and utilizes a 6-pin SSMini package to provide a compact form factor with dimensions of 1.7 mm length, 1.7 mm width, and 0.6 mm height. The transistor's minimum DC current gain (hFE) of 100 guarantees reliable gain performance for precise signal control.

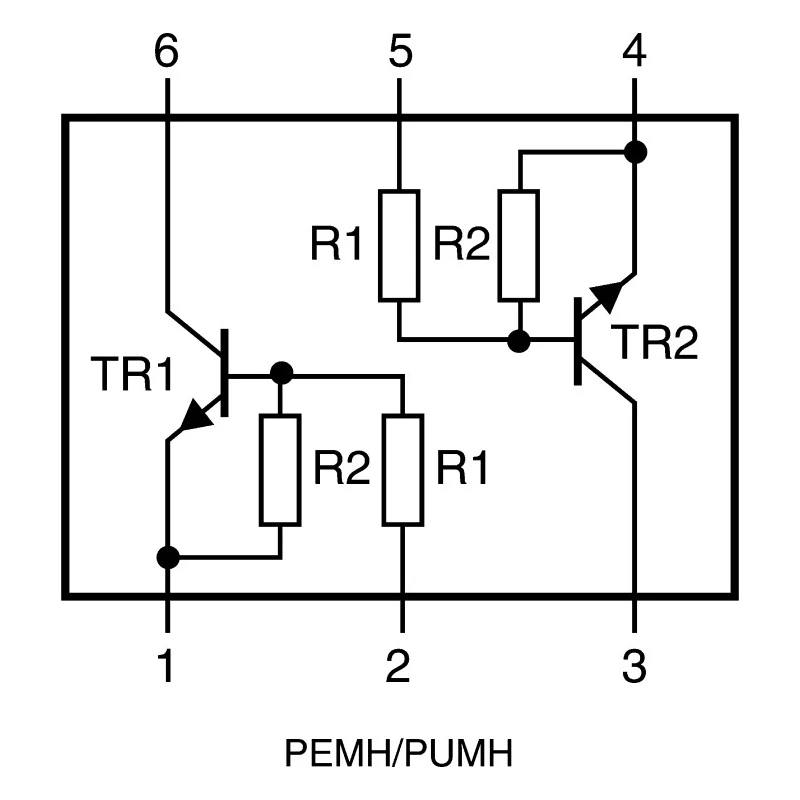

Power dissipation capacity of 200 mW ensures this transistor can operate safely under typical electronic loads. It features a dual resistor configuration that integrates bias resistors internally, enabling direct drive from logic level inputs without additional external components.

The device operates efficiently across a broad temperature range from -65°C to 150°C, making it suitable for industrial, automotive, and manufacturing electronic applications. Compliance with automotive standard AEC-Q101 assures stringent quality and durability for electronic control systems in vehicles and harsh environments.

Its isolated transistor configuration and surface mounting type facilitate flexibility in circuit board layout and integration into various electronic assemblies. The PEMH13 series is widely used in digital switching, signal amplification, and biasing functions across numerous industrial and commercial electronics systems.

Maximum collector-emitter voltage: 50 V. Maximum DC collector current: 100 mA. Minimum current gain (hFE): 100. Power dissipation: 200 mW. Operating temperature range: -65°C to 150°C. 6-pin SSMini surface-mount package. Automotive standard AEC-Q101 compliant.

Compact dimensions: 1.7 mm x 1.7 mm x 0.6 mm. Use this transistor in industrial, automotive electronics, telecommunications, and general-purpose digital circuits requiring reliable switching components. Explore more semiconductors and components at EnvMart, your industrial parts and supplies specialist.
