Nexperia Digital Transistor 100 mA NPN 50 V 6-Pin SOT-363 PUMH10,115

Nexperia PUMH10,115 Digital Transistor is a high-quality NPN bipolar transistor designed for surface-mount applications, providing a maximum collector current of 100 mA and collector emitter voltage of 50 V in a compact 6-pin SOT-363 package.

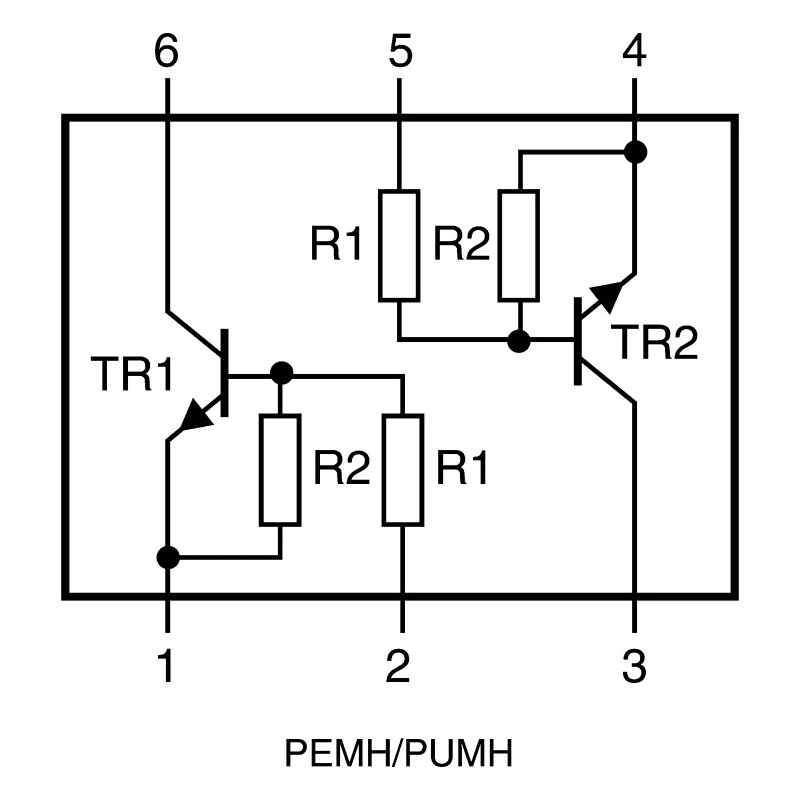

This digital transistor integrates two bias resistors, allowing direct drive from digital sources without external resistor components, enhancing PCB efficiency and reducing design complexity.

It features a minimum DC current gain of 100, maximum power dissipation of 200 mW, and a maximum transition frequency of 230 MHz, making it suitable for diverse electronic circuit applications including switching and amplification.

The device operates reliably across a wide temperature range from -65°C to 150°C and complies with automotive AEC-Q101 standards, underscoring its suitability for automotive and industrial electronics.

Its compact dimensions of 2.2 mm length, 2.2 mm width, and 1.1 mm height enable space-saving PCB layouts. The transistor is RoHS compliant, ensuring it meets stringent environmental regulations.

Maximum Collector Emitter Voltage of 50 V ensures robust operation. Minimum DC Current Gain (hFE) of 100 provides reliable amplification. Maximum Power Dissipation of 200 mW supports efficient thermal management. Operating temperature range from -65°C to 150°C allows use in harsh environments.

Isolated transistor configuration simplifies circuit design integration. Automotive standard AEC-Q101 certified for high reliability. Compact 6-pin SOT-363 package with dimensions 2.2 x 2.2 x 1.1 mm. Dual resistor integration facilitates direct digital driving.

This transistor is ideal for applications in industrial electronics, automotive systems, consumer electronics, and digital switching circuits requiring reliable, compact, and efficient bipolar transistors.

Explore Nexperia Digital Transistors and related semiconductor products at EnvMart for top performance and quality assurance.
