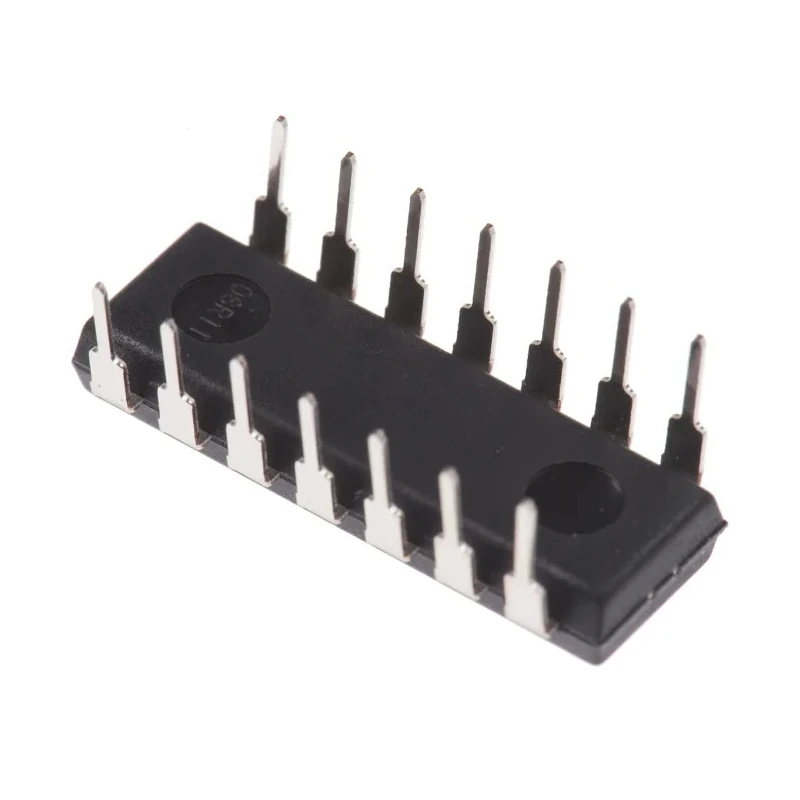

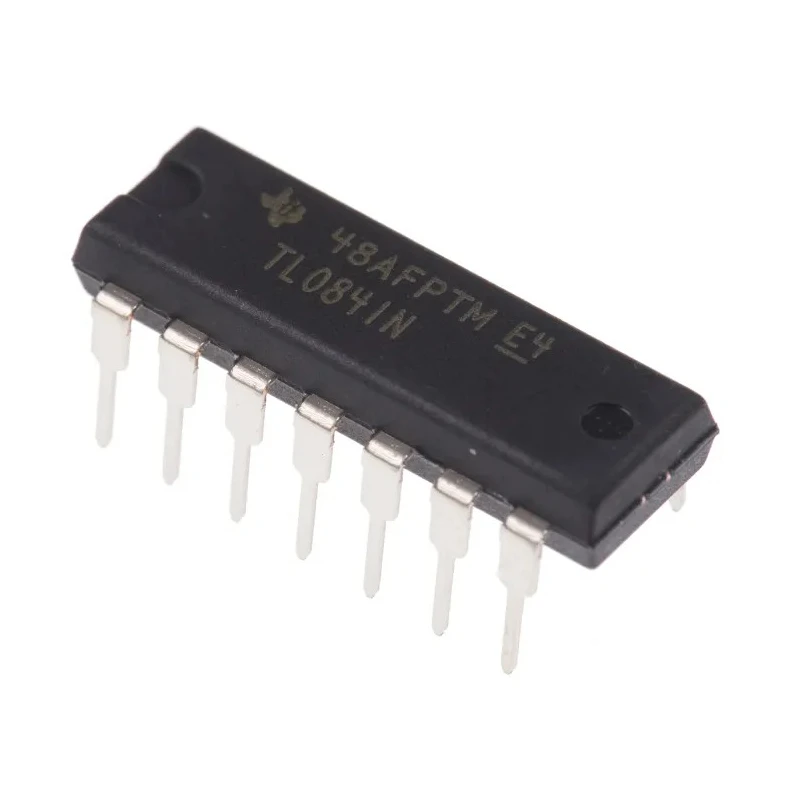

Texas Instruments Operational Amplifier, 3 MHz Gain Bandwidth, 14-Pin PDIP TL084IN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TL084IN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL084 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 20 nA |
| Vos - Input Offset Voltage | 9 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 10 nA |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
| TL084IN STMicroelectronics, Op Amp, 4MHz, 14-Pin PDIPBrand | STMicroelectronics |
Key Features
- JFET input operational amplifier suitable for audio and signal processing.
- Wide supply voltage range from ±5V to ±15V.
- Low input bias current of 20 nA and low noise of 18nV/√Hz at 1 kHz.
- High slew rate of 13 V/μs and low total harmonic distortion of 0.003% typical.
- Quad channel device with 14 pins in a PDIP through-hole mount.
- Operating temperature range from -40°C to 85°C.
- Input offset voltage of 9 mV and input offset current of 10 nA.
- Automotive standard compliant with AEC-Q100.
Product Description
Texas Instruments TL084IN operational amplifier is a quad-channel JFET input device known for high performance in analog signal processing applications. It features a wide supply voltage range of ±5 to ±15 volts, making it adaptable for various power environments. Its low input bias current and noise characteristics ensure excellent signal quality, ideal for audio signal amplification and precision instrumentation.
The TL084IN comes in a 14-pin PDIP package with through-hole mounting, providing ease of integration into printed circuit boards. It operates effectively across a temperature range from -40°C to 85°C, making it suitable for automotive and industrial applications compliant with the AEC-Q100 automotive standard.
Key technical features include a 3 MHz gain bandwidth product, an input offset voltage of 9 mV, and a high slew rate of 13 volts per microsecond. These specifications translate into precise signal amplification with low distortion and fast response times.
The device's physical dimensions are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, which supports compact designs. Its high input impedance minimizes the load on preceding circuit stages, enhancing overall circuit performance.
This operational amplifier is widely used in industrial, laboratory, and electronic equipment manufacturing for audio processing, sensor conditioning, and general-purpose amplification tasks.
JFET input operational amplifier suitable for audio and signal processing. Wide supply voltage range from ±5V to ±15V. Low input bias current of 20 nA and low noise of 18nV/√Hz at 1 kHz. High slew rate of 13 V/μs and low total harmonic distortion of 0.003% typical.
Quad channel device with 14 pins in a PDIP through-hole mount. Operating temperature range from -40°C to 85°C. Input offset voltage of 9 mV and input offset current of 10 nA. Dimensions: Length 19.3 mm, Width 6.35 mm, Height 4.57 mm.
Automotive standard compliant with AEC-Q100. Ideal for minimizing circuit loading due to high input impedance. Explore Texas Instruments components and Operational Amplifiers with EnvMart for advanced electronic design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL084IN has a gain bandwidth product of 3 MHz, which is suitable for various analog signal processing applications.
It operates with a wide supply voltage range from ±5V to ±15V, making it adaptable for different power environments.
The maximum operating temperature for this model is 85°C, allowing it to function in various environmental conditions.
This model has dimensions of 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, supporting compact designs.
The input offset voltage for this operational amplifier is 9 mV, which contributes to its precision in signal amplification.
This model features four channels, making it suitable for applications requiring multiple signal paths.
The TL084IN has a high slew rate of 13 V/μs, allowing for fast response times in signal processing.
The input bias current for this operational amplifier is 20 nA, which helps maintain signal integrity in sensitive applications.
Yes, it is compliant with the AEC-Q100 automotive standard, making it suitable for automotive applications.
This operational amplifier comes in a 14-pin PDIP package with through-hole mounting, facilitating easy integration into circuits.
The total harmonic distortion for this model is typically 0.003%, which ensures high fidelity in audio applications.
The minimum operating temperature for this operational amplifier is -40°C, allowing it to function in extreme conditions.
