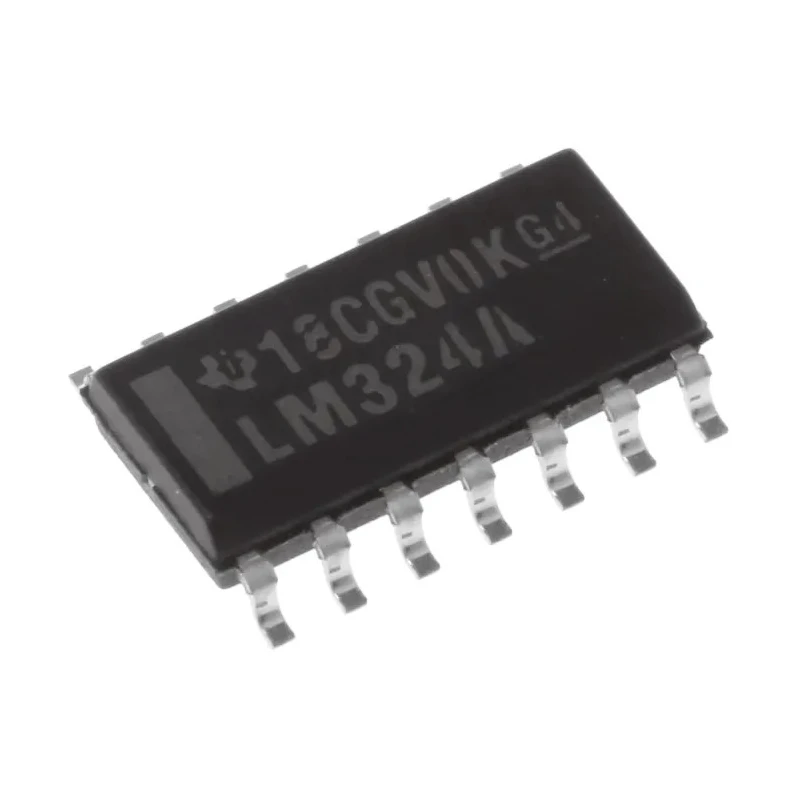

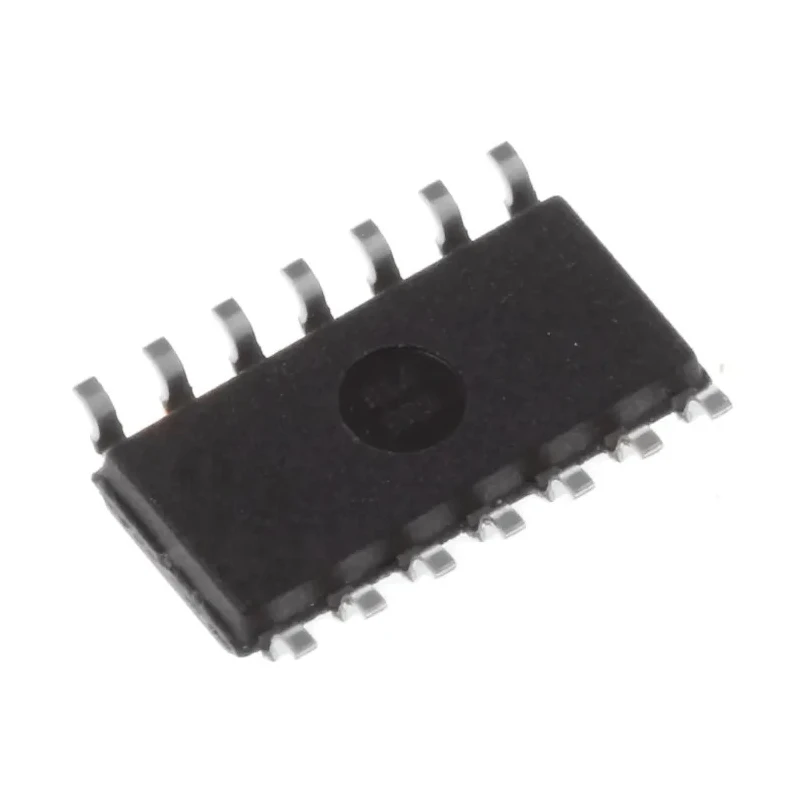

Texas Instruments Operational Amplifier 1.2 MHz 14-Pin SOIC 30V LM324AD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | LM324AD |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | LM324A |
| Output Current | -10mA |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Standards/Approvals | EN 61340-5-1 |
| Pin Count | 14 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | -200 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 75 nA |
| Texas Instruments, Operational Amplifier, 1.2 MHz, 14-Pin 30V SOICBrand | Texas Instruments |
Key Features
- Features four independent amplifier channels within one package.
- Operates with a supply voltage range of 5V to 30V for versatile use.
- Provides a slew rate of 0.5 V/μs and input offset voltage of 5 mV.
- Supports operating temperatures from 0°C to 70°C for reliability in various environments.
- Compact dimensions with a height of 1.58 mm, length of 8.65 mm, and width of 3.91 mm.
- Equipped with a 14-pin SOIC surface mount package suitable for modern PCB designs.
- Meets EN 61340-5-1 standards for electrostatic discharge protection.
- Designed for general-purpose amplification applications in industrial and consumer electronics.
Product Description
The Texas Instruments LM324AD is a high-performance operational amplifier characterized by a gain bandwidth product of 1.2 MHz. Packaged in a compact and reliable 14-pin SOIC surface mount configuration, it features four independent amplifier channels suitable for various electronic circuit designs.
Operating within a wide supply voltage range from 5V to 30V, the LM324AD supports diverse power environments. Its slew rate of 0.5 V/μs and low input offset voltage of 5 mV make it well-suited for precision analog signal processing.
With an operating temperature range spanning from 0°C to 70°C, this amplifier delivers stability and reliability for applications in automotive, industrial control systems, instrumentation, and consumer electronics. Its compact form factor, with dimensions of 1.58 mm height, 8.65 mm length, and 3.91 mm width, enables space-saving on modern printed circuit boards.
The device complies with EN 61340-5-1 standards, offering excellent electrostatic discharge protection. It is part of the LM324 series renowned for cost-effective performance in general-purpose amplification needs. The LM324AD is RoHS compliant, supporting environmentally responsible manufacturing.
Features four amplifier channels in one package. Wide supply voltage supporting 5V to 30V operation. Low input bias current at -200 nA enhances performance. Input offset current is only 75 nA, ensuring precision. Compact 14-pin SOIC surface mount package for easy integration.
Suitable for industrial, automotive, laboratory, and consumer applications. Stable operation over a temperature range from 0°C to 70°C.
This Operational Amplifier is ideal for electronics engineers requiring a reliable, multi-channel amplifier with a strong balance of performance and cost-effectiveness. Explore more Texas Instruments semiconductor amplifiers and components for your next electronics project at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the LM324AD operational amplifier is 1.2 MHz.
This operational amplifier operates with a supply voltage range from 5V to 30V.
It features four independent amplifier channels within one package.
The dimensions of this model are 1.58 mm in height, 8.65 mm in length, and 3.91 mm in width.
The input offset voltage for this operational amplifier is 5 mV.
The maximum operating temperature for the LM324AD is 70°C.
It is packaged in a 14-pin SOIC surface mount configuration.
The slew rate of this operational amplifier is 0.5 V/μs.
The input bias current for this model is -200 nA.
This operational amplifier meets the EN 61340-5-1 standards for electrostatic discharge protection.
The minimum operating temperature for the LM324AD is 0°C.
It is designed for general-purpose amplification applications in industrial and consumer electronics.
