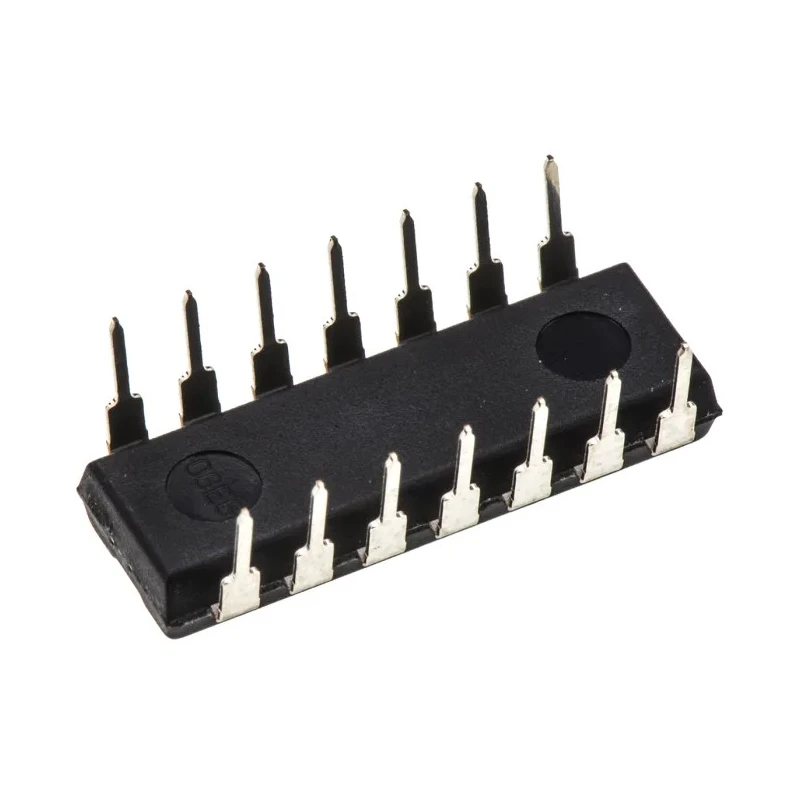

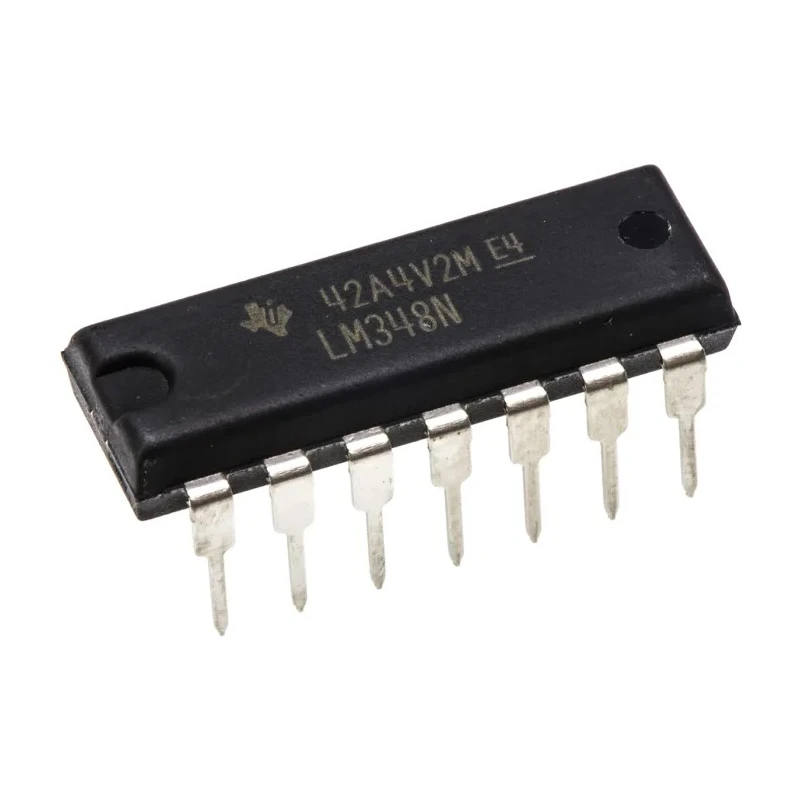

Texas Instruments LM348N Operational Amplifier 1 MHz, 14-Pin PDIP, 4 Channels, 4-18V LM348N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | LM348N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LM348 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 4V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 400 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 100 nA |
Key Features
- Operates over a supply voltage range of 4 to 18 volts.
- Features a low input bias current of 400 nA and an input offset voltage of 6 mV.
- Maximum operating temperature of 70°C suitable for various industrial environments.
- Slew rate of 0.5 V/μs provides moderate speed performance.
- Four independent amplifier channels in a single device.
- Uses a through-hole 14-pin PDIP package for easy mounting.
- Compact physical dimensions of 19.3 mm length, 6.35 mm width, and 4.57 mm height.
- Suitable for single supply operation including input common mode voltage at ground.
Product Description
Texas Instruments LM348N is a quad general purpose operational amplifier housed in a 14-pin PDIP package, designed to deliver reliable performance in a wide range of electrical and electronic applications. It operates with a gain bandwidth product of 1 MHz and supports supply voltages from 4 V minimum to 18 V maximum, making it compatible with numerous industrial and laboratory power supply setups.
This operational amplifier features a low input bias current of 400 nanoamps and a typical input offset voltage of 6 millivolts, helping to ensure signal integrity in precision circuits. The slew rate of 0.5 volts per microsecond allows it to handle signal changes at a moderate rate suitable for audio, signal conditioning, and signal processing tasks.
Designed with four independent amplifier channels, the LM348N allows for multiple signal amplification needs from a single integrated circuit, reducing board space and complexity. It is packaged in a through-hole 14-pin PDIP configuration which facilitates easy insertion and replacement in prototyping and production environments.
The amplifier supports operating temperatures from 0°C to 70°C, suitable for many electronic devices and control systems under normal industrial conditions. Its compact form factor with dimensions 19.3 mm length, 6.35 mm width, and 4.57 mm height ensures it fits standard PCB footprints.
Gain Bandwidth Product: 1 MHz. Number of Channels: 4. Supply Voltage Range: 4 V to 18 V. Input Bias Current: 400 nA. Input Offset Voltage: 6 mV. Slew Rate: 0.5 V/μs. Operating Temperature Range: 0 to 70°C. Package Type: 14-Pin PDIP Through Hole.
Compact dimensions suited for multiple applications.
This operational amplifier is ideal for general purpose electronic amplifier requirements in industrial machines, laboratory equipment, and control systems, providing flexibility and robust performance. Explore more products in the Operational Amplifier category on EnvMart to find complementary electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz, allowing it to handle a variety of signal amplification tasks effectively.
It operates over a supply voltage range of 4 V to 18 V, making it suitable for various industrial and laboratory applications.
This model features four independent amplifier channels, enabling multiple signal amplification needs from a single device.
The input bias current for this operational amplifier is 400 nA, which helps maintain signal integrity in precision circuits.
It has compact physical dimensions of 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, suitable for standard PCB footprints.
The maximum operating temperature for this unit is 70°C, making it suitable for various industrial environments.
The slew rate of this operational amplifier is 0.5 V/μs, which provides moderate speed performance for signal processing tasks.
It is housed in a 14-pin PDIP (Plastic Dual In-line Package) configuration, facilitating easy mounting and replacement.
The input offset voltage for this operational amplifier is 6 mV, contributing to its precision in signal amplification.
The minimum operating temperature for this model is 0°C, allowing it to function effectively in a range of environments.
This operational amplifier supports through-hole mounting, making it suitable for prototyping and production environments.
It is ideal for general purpose electronic amplifier requirements in industrial machines, laboratory equipment, and control systems.
