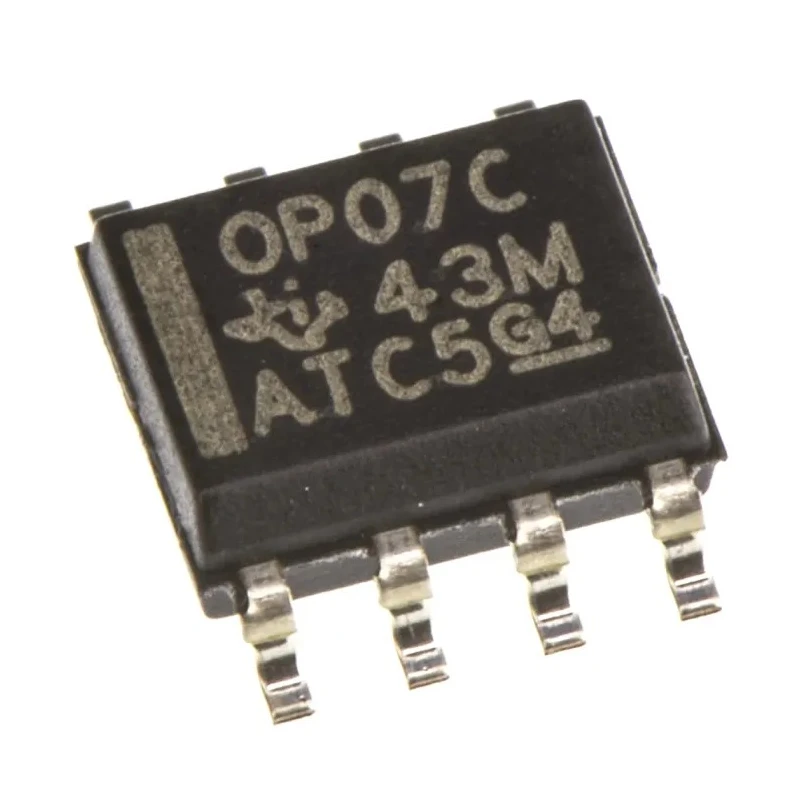

Texas Instruments Precision Operational Amplifier 8-Pin SOIC 22V 600 kHz GBP OP07CD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | OP07CD |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | OP07 |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | -22V |
| GBP - Gain Bandwidth Product | 600kHz |
| Input Bias Current | ±14 nA |
| Slew Rate | 0.3V/μs |
| Input Offset Current | 8 nA |
Key Features
- Operates with a maximum supply voltage of ±22V.
- Low input offset voltage of 250 μV ensures accuracy.
- Input bias current is minimal at ±14 nA for stable performance.
- Slew rate of 0.3 V/μs supports moderate speed applications.
- Designed to operate within a temperature range from 0°C to 70°C.
- Single channel operational amplifier suitable for precision linear applications.
- Stable and predictable operating characteristics ideal for demanding industrial and laboratory use cases.
- No automotive certification; non-automotive standard device.
Product Description
Texas Instruments OP07CD is a precision operational amplifier housed in an 8-pin SOIC surface mount package. It operates with a maximum supply voltage of ±22V and features a gain bandwidth product (GBP) of 600 kHz, making it suitable for accurate and stable signal amplification in industrial and laboratory electronics applications.
This amplifier exhibits low input offset voltage of 250 μV and low offset voltage drift with temperature, ensuring high precision in critical signal conditioning tasks. Its low input bias current of ±14 nA allows use in circuits requiring high input impedance and minimal current draw, such as sensor amplification and analog instrumentation.
The device supports a slew rate of 0.3 V/μs, balancing speed and stability for typical operational amplifier demands. It operates reliably over a temperature range of 0°C to 70°C, suitable for most commercial and light industrial environments.
The SOIC package's compact dimensions of 4.9 mm length, 3.91 mm width, and 1.58 mm height enable high-density PCB layouts. The single-channel design simplifies integration into precise analog circuits including filters, integrators, and measurement devices.
While the amplifier does not conform to automotive standards, it is valued highly in applications such as industrial control systems, laboratory instrumentation, and precision analog signal processing. Its stable and predictable characteristics allow engineers to design with confidence in performance consistency.
Operates with ±22V maximum supply voltage providing wide voltage range flexibility. Low input offset voltage ensures minimal error in precision applications. Minimal input bias current reduces power consumption and signal disturbance.
Slew rate suited for moderate frequency analog signals. Compact SOIC surface mount package facilitates space-efficient PCB designs. Temperature range from 0°C to 70°C supports standard operating conditions. Single channel amplifier for straightforward circuit implementation.
Ideal for industrial, laboratory, and electronic instrumentation systems. Explore a broad range of Operational Amplifiers and semiconductor components on EnvMart for reliable industrial and laboratory electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this operational amplifier is ±22V.
The gain bandwidth product (GBP) of the OP07CD is 600 kHz.
It has a low input offset voltage of 250 μV, ensuring accuracy in applications.
The input bias current is minimal at ±14 nA, which helps maintain stable performance.
This model operates reliably within a temperature range of 0°C to 70°C.
The slew rate of this operational amplifier is 0.3 V/μs, suitable for moderate speed applications.
The dimensions are 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height.
This operational amplifier is a single-channel device.
It is housed in an 8-pin SOIC surface mount package.
It is commonly used in industrial control systems, laboratory instrumentation, and precision analog signal processing.
The input offset current is 8 nA.
No, the OP07CD does not conform to automotive standards and is not intended for automotive use.
