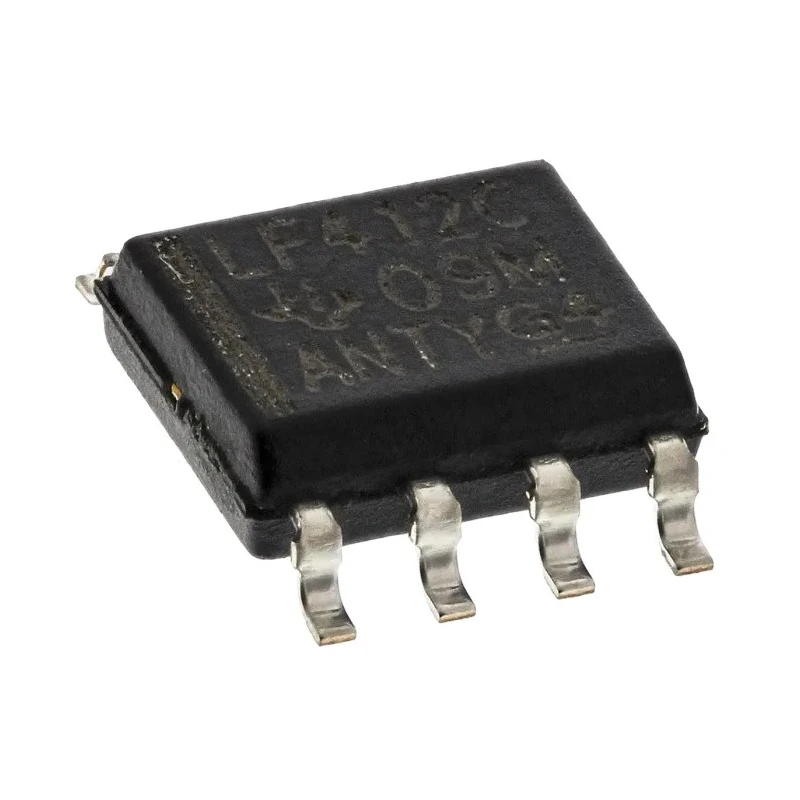

Texas Instruments Operational Amplifier 3 MHz Gain Bandwidth, 8-Pin SOIC LF412CD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | LF412CD |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | LF412C |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | -18V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 4 nA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 2 nA |
Key Features
- JFET input operational amplifier suitable for precise analog signal processing.
- Dual channel design with 8 pins in a SOIC package for compact PCB mounting.
- Wide supply voltage range from -18V to 18V supports diverse industrial applications.
- Low input bias current of 4 nA and low input offset current of 2 nA for high accuracy.
- Fast slew rate of 13 V/μs for improved response times in signal amplification.
- Operating temperature range from 0°C to 70°C for reliable performance in standard environments.
- Compact dimensions with 4.9 mm length, 3.91 mm width, and 1.58 mm height for space-constrained designs.
- Input offset voltage typically 3 mV aiding stable amplifier output.
Product Description
The Texas Instruments LF412CD is a high-performance JFET input operational amplifier delivering a gain bandwidth product of 3 MHz. Packaged in an 8-pin SOIC surface mount device, this dual-channel amplifier is ideally suited for precision analog signal processing in industrial, laboratory, and manufacturing instruments.
This amplifier operates within a wide supply voltage range from -18V to 18V, making it highly versatile for various electrical and electronic circuit designs. The low input bias current of 4 nA and input offset current of 2 nA ensure minimal error and high accuracy, essential for sensitive measurement applications.
The LF412CD offers a swift slew rate of 13 V/μs, contributing to reliable and quick amplification of signals. Its typical input offset voltage of 3 mV allows for stable and accurate output signals. Designed to function over 0°C to 70°C, it meets the operational temperature requirements of general industrial environments.
The compact dimensions - 4.9 mm length, 3.91 mm width, and 1.58 mm height - allow space-efficient PCB layouts, supporting integration in complex electronic assemblies. Being part of the LF347 - LF444 series, it is designed for applications requiring quality performance and stability.
This operational amplifier finds use in industrial instrumentation, audio equipment, laboratory instruments, control systems, and other electronic devices requiring reliable analog amplification.
JFET input operational amplifier suitable for precise analog signal processing. Dual channel design with 8 pins in a SOIC package for compact PCB mounting. Wide supply voltage range from -18V to 18V supports diverse industrial applications.
Low input bias current of 4 nA and low input offset current of 2 nA for high accuracy. Fast slew rate of 13 V/μs for improved response times in signal amplification. Operating temperature range from 0°C to 70°C for reliable performance in standard environments.
Compact dimensions with 4.9 mm length, 3.91 mm width, and 1.58 mm height for space-constrained designs. Input offset voltage typically 3 mV aiding stable amplifier output. Explore additional Texas Instruments Operational Amplifiers for varied performance requirements at EnvMart Electronics & Electricals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LF412CD has a gain bandwidth product of 3 MHz, making it suitable for various analog signal processing applications.
This model operates within a supply voltage range from -18V to 18V, allowing for flexibility in circuit design.
The input bias current for the LF412CD is 4 nA, which helps ensure high accuracy in sensitive applications.
The typical input offset voltage is 3 mV, aiding in achieving stable amplifier output.
It operates effectively within a temperature range of 0°C to 70°C, suitable for standard industrial environments.
The dimensions of this operational amplifier are 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height, making it compact for PCB layouts.
The slew rate of this model is 13 V/μs, which contributes to improved response times in signal amplification.
This operational amplifier features a dual-channel design, providing versatility for various applications.
The LF412CD is packaged in an 8-pin SOIC format, suitable for surface mounting on PCBs.
The input offset current is 2 nA, which is important for maintaining accuracy in amplification.
It is suitable for applications in industrial instrumentation, audio equipment, laboratory instruments, and control systems requiring reliable analog amplification.
The LF412CD is part of the LF412C series, designed for applications that require quality performance and stability.
