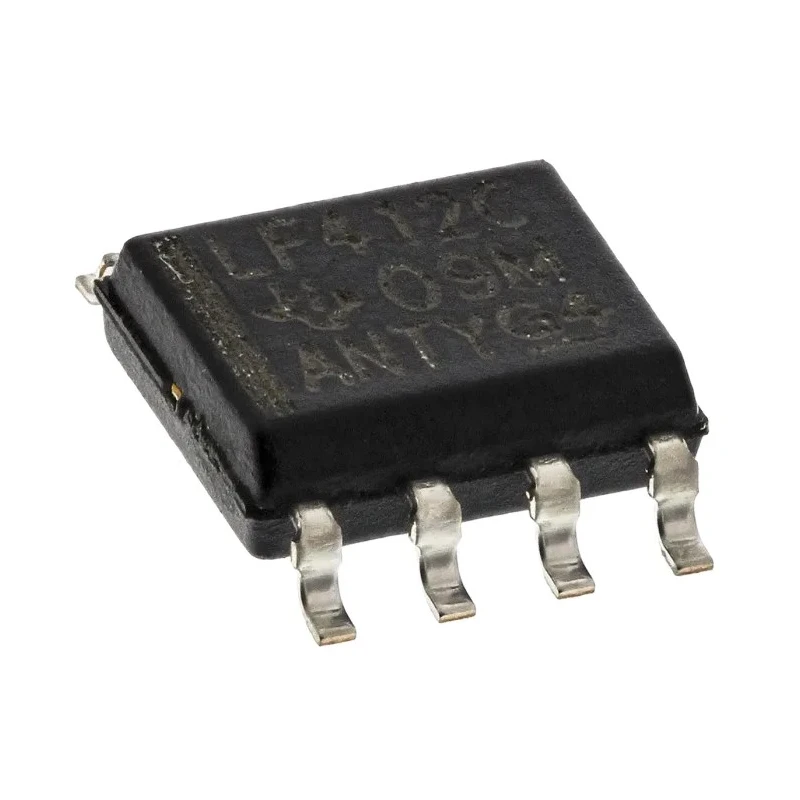

Texas Instruments Operational Amplifier 3 MHz 8-Pin SOIC Surface Mount LF412CD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | LF412CD |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | LF412C |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | -18V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 4 nA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 2 nA |
Key Features
- Features a 3 MHz gain bandwidth product for high-speed signal processing.
- Provides a low input bias current of 4 nA ensuring accuracy and stability.
- Operates from a bipolar supply voltage range of -18V to 18V.
- Offers a slew rate of 13 V/μs suitable for fast transient response.
- Compact SOIC package dimensions of 4.9 mm length, 3.91 mm width, and 1.58 mm height enable efficient PCB space utilization.
- Input offset voltage is nominally 3 mV for precise signal amplification.
- Operational temperature range from 0°C to 70°C suitable for typical electronics applications.
- JFET input stage suitable for low noise and high input impedance environments.
Product Description
Texas Instruments LF412CD operational amplifier is a high-performance JFET input device designed for dual channels with precise voltage amplification capability at 3 MHz gain bandwidth. The device comes in a compact 8-pin SOIC surface mount package measuring 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height, allowing for efficient integration in various electronic assemblies.
This amplifier operates with a power supply voltage range from -18V to 18V, making it suitable for applications requiring dual polarity supplies. It features an input bias current as low as 4 nA and an input offset voltage of approximately 3 mV to ensure accurate signal processing with minimal error.
The device has a maximum operating temperature rating of 70°C, making it well-suited for use in industrial and commercial electronics where thermal management is standard. A slew rate of 13 V/μs allows rapid response to input signal changes, beneficial in fast analog signal conditioning.
This operational amplifier is ideal for a wide range of applications including instrumentation amplifiers, audio circuits, and sensor signal processing. The JFET input stage ensures low noise and high input impedance, critical for amplifying low-level analog signals.
This amplifier supports surface mount installation, enabling automated PCB assembly for volume production. Features a 3 MHz gain bandwidth product for high-speed signal processing. Offers low input bias current to enhance signal integrity.
Supports a broad supply voltage range of -18V to +18V. JFET input technology for low noise and offset characteristics. Compact surface mount SOIC package for PCB space savings.
EnvMart provides this Texas Instruments LF412CD Operational Amplifier suitable for electronics manufacturing, laboratory instrumentation, audio engineering, and general analog circuit design. Explore the Electronics & Electricals category for more semiconductor amplifiers and compatible components to support your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LF412CD operational amplifier features a gain bandwidth product of 3 MHz, suitable for high-speed signal processing applications.
It has a low input bias current of 4 nA, which helps ensure accuracy and stability in signal amplification.
This model operates from a bipolar supply voltage range of -18V to +18V, making it versatile for various applications.
The slew rate of this operational amplifier is 13 V/μs, allowing for rapid response to input signal changes.
The LF412CD comes in a compact SOIC package with dimensions of 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height.
The input offset voltage is nominally 3 mV, which is important for precise signal amplification.
The maximum operating temperature for this model is 70°C, making it suitable for industrial and commercial electronics.
It features a JFET input stage, which is beneficial for low noise and high input impedance applications.
This operational amplifier is designed for dual channels, allowing for multiple signal processing applications.
The minimum operating temperature for this model is 0°C, suitable for typical electronics applications.
The LF412CD is designed for surface mount installation, facilitating automated PCB assembly.
The input offset current for this operational amplifier is 2 nA, contributing to its overall performance and accuracy.
