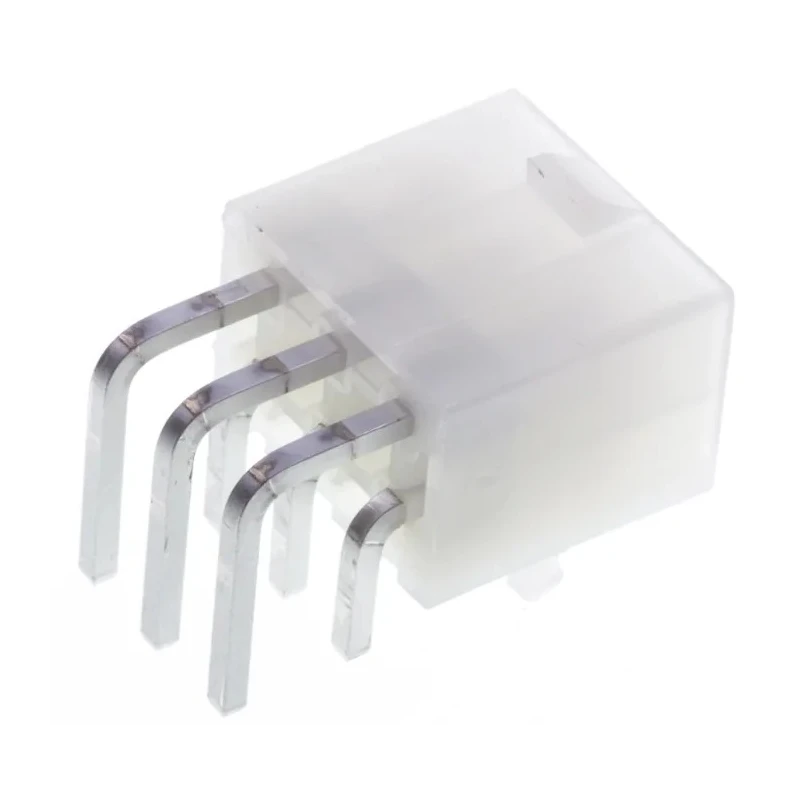

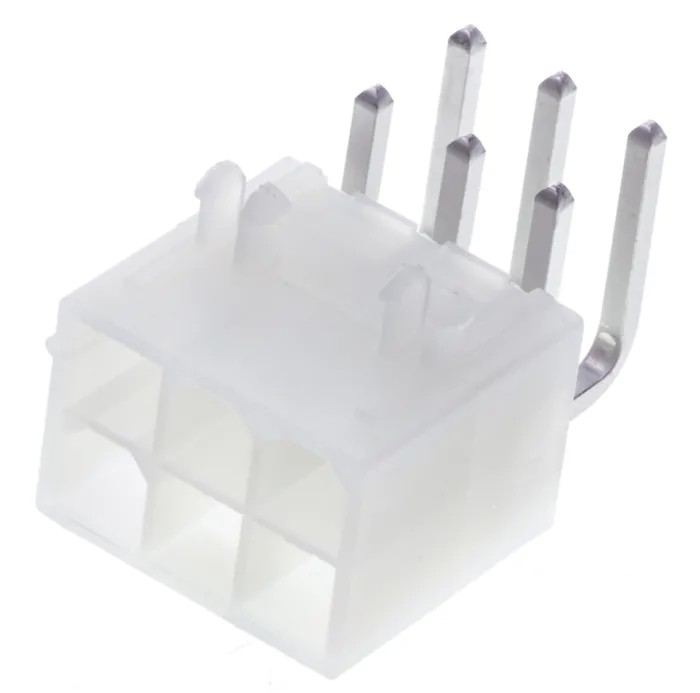

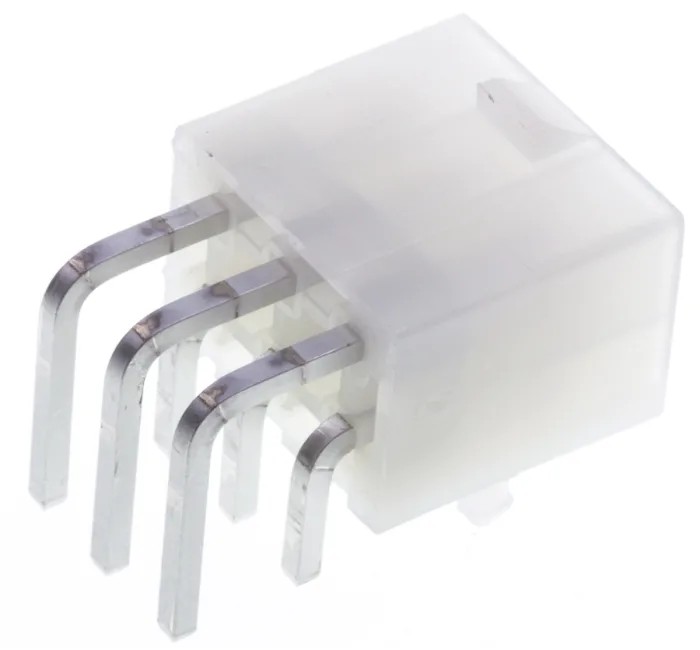

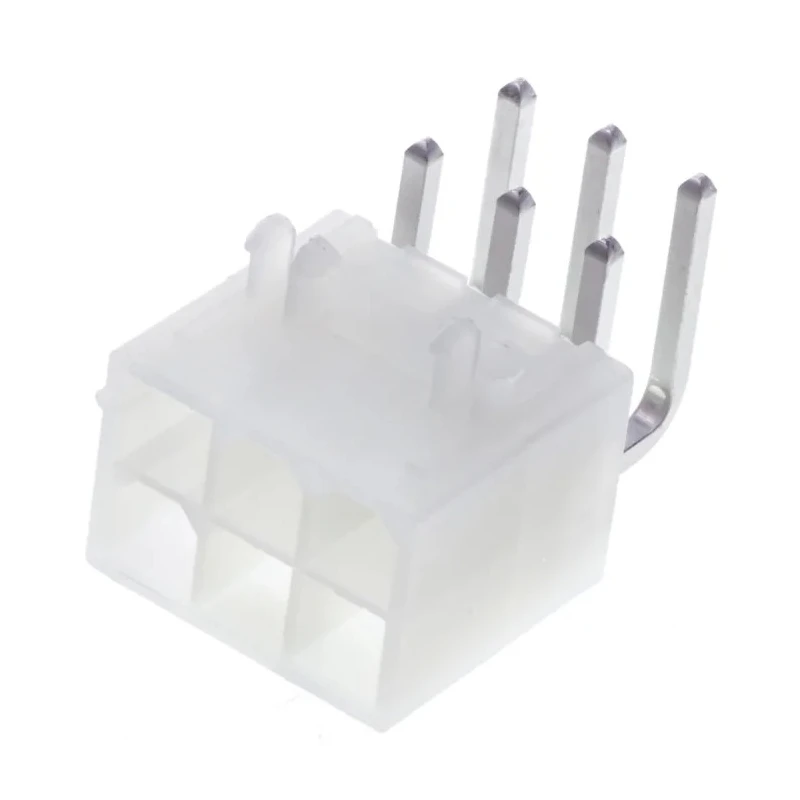

Molex Mini-Fit Jr Series Right Angle Through Hole PCB Header, 6 Contacts, 4.2 mm Pitch, 2 Row, Shrouded 39-30-1060

Molex 39-30-1060 Mini-Fit Jr Series Right Angle Through Hole PCB Header is a shrouded, right-angle connector designed for secure and reliable mounting on printed circuit boards with through-hole technology. This 6-contact, 2-row header features a pitch of 4.2 mm and is constructed with a durable nylon housing that provides excellent impact resistance and electrical insulation.

Its brass contacts are tin-plated to resist corrosion, enhancing electrical performance and longevity. The header is rated for a maximum current of 8 amperes and voltage of 600 volts, making it suitable for high-power electronic applications. Operating temperatures range from -40°C to +105°C, allowing use in various demanding industrial and commercial environments.

The Mini-Fit Jr series includes polarization and keying features to prevent misalignment and mishandling during the mating process. Its positive locking mechanism secures connections against shocks and vibrations. The flame-retardant housing composition ensures safety by extinguishing flames within 30 seconds, reducing fire damage risks.

Typical applications include medical devices, consumer electronics, household appliances, and commercial office equipment where robust and reliable PCB connections are critical. The right-angle orientation facilitates installation in space-constrained areas while ensuring strong mechanical retention.

Right-angle, shrouded PCB header with 6 brass contacts for durability. 4.2 mm pitch and 2 rows for compact, efficient connectors. Nylon housing offers impact resistance and electrical insulation. Rated at 8A current and 600V voltage for demanding electrical loads.

Wide operating temperature range from -40°C to 105°C. Flame-retardant material enhances system safety. Includes polarization, keying, and positive locking mechanisms for secure mating. Designed for medical, consumer electronics, and commercial applications.

Explore Molex Mini-Fit Jr series for high-performance PCB Headers, ideal for industrial, medical, laboratory, and commercial electronics applications. For more connector options, browse our Electronics Components category on EnvMart.
