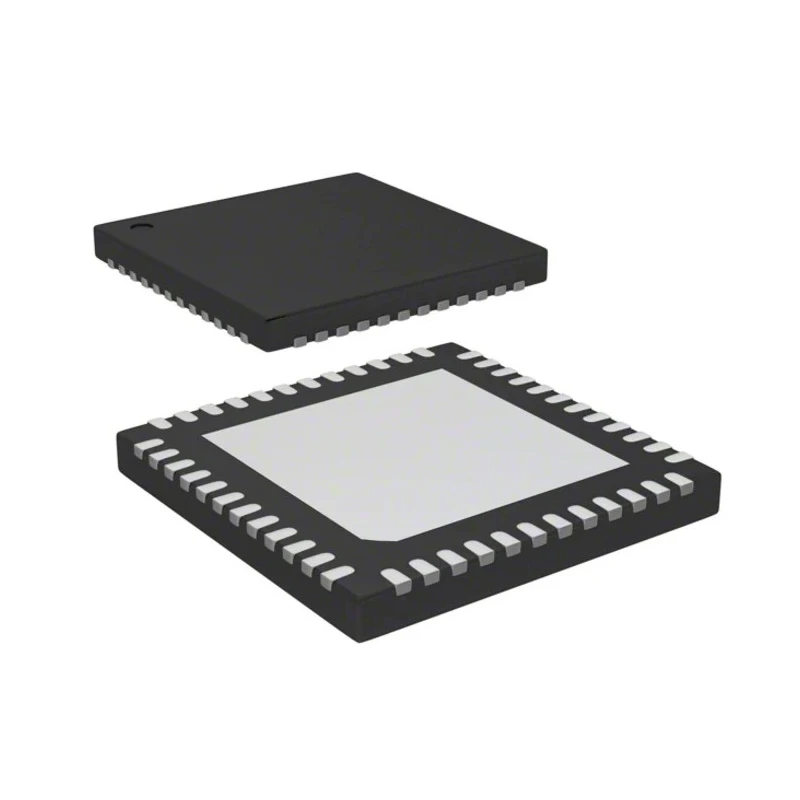

STMicroelectronics STM32WB Microcontroller 32 bit ARM Cortex M0+ and ARM Cortex M4, 64 MHz, 512kB FLASH STM32WB30CEU5A

STMicroelectronics STM32WB30CEU5A is a highly integrated 32-bit microcontroller featuring dual ARM Cortex cores: Cortex M0+ dedicated to real-time wireless protocol operations and Cortex M4 for high-performance application processing at 64 MHz. It offers 512kB FLASH memory and a substantial 96kB RAM size, packaged in a compact 48-pin UFQFPN surface mount package ideal for embedded system designs.

This microcontroller is specifically designed for ultra-low-power wireless applications, compliant with Bluetooth Low Energy SIG version 5.0 and IEEE 802.15.4-2011 standards. Its operating voltage range from 2V to 3.6V enables efficient energy consumption suitable for battery-powered and industrial devices.

The STM32WB30CEU5A supports complex embedded applications requiring analog input features with one 16-bit ADC and versatile timing with six programmable timers. The integrated Floating Point Unit (FPU) single precision and DSP instruction set deliver enhanced signal processing capability, while the Memory Protection Unit offers improved application security.

Its operating temperature range of -10°C to 85°C makes it reliable for industrial environments. The microcontroller has a small outline of 7mm x 7mm footprint and a thickness of 500μm, allowing space-constrained applications to benefit from advanced wireless connectivity and computational power.

These features make it optimal for use in applications such as industrial control, IoT devices, smart sensors, and low-power wireless communication systems. Dual ARM Cortex M0+ and M4 cores for real-time and high-performance processing.

64 MHz operating frequency with 512kB Flash and 96kB RAM for versatile application support. Bluetooth Low Energy v5.0 and IEEE 802.15.4-2011 compliant radio for wireless connectivity. Integrated DSP instructions and Floating Point Unit for efficient mathematical computation.

Multiple timers and one 16-bit ADC for precise control and measurement. Explore more Microcontrollers and industrial electronic components at EnvMart.
