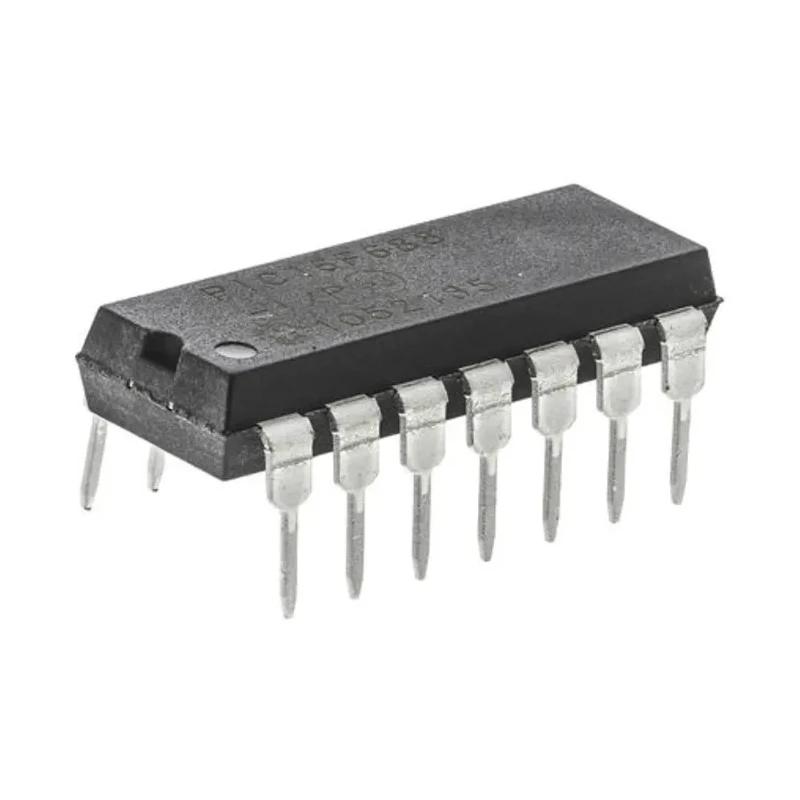

Microchip 8 bit PIC Microcontroller 20 MHz 7kB FLASH 14-Pin PDIP PIC16F688-I/P

Microchip PIC16F688-I/P is a high-performance 8-bit PIC microcontroller from Microchip's PIC16F series, designed to deliver efficient and reliable processing at a maximum clock frequency of 20 MHz. Housed in a 14-pin PDIP package, this device is optimized for through-hole mounting, making it ideal for prototyping and small-scale production.

This microcontroller integrates 7kB of FLASH program memory and 256 bits of RAM, providing ample space for program code and data storage. It features a versatile set of peripherals including 12 programmable I/O pins, two analog comparators, and an 8-channel 10-bit analog-to-digital converter enabling precise and flexible signal interfacing.

Key operational protections such as power-on reset, brown-out reset, watchdog timer, and oscillator start-up timer enhance the robustness and reliability of the device in various power environments. Its operating voltage ranges from 2V to 5.5V with a maximum power dissipation of 800mW, supporting a broad range of embedded systems.

The PIC16F688-I/P supports two timers: an 8-bit and a 16-bit timer, allowing diverse timing and control applications. The internal hardware stack is 8-level deep with a simplified 35 instruction set optimized for efficient execution. The microcontroller architecture is based on RISC, delivering up to 5 MIPS performance.

Based on Microchip's RISC architecture for high efficiency. 14-pin PDIP package for easy through-hole mounting. 7kB FLASH program memory and 256 bits RAM for compact applications. 8-channel 10-bit ADC for accurate analog signal conversion.

Two timers for timing and counting applications. Built-in comparators and communication peripherals. Operating voltage from 2V to 5.5V with 800mW power dissipation. Robust reset mechanisms including POR, BOR, and WDT.

Its small dimensions of 19.69 mm in length, 7.11 mm in width, and 4.95 mm in height make it适 suitable for space-constrained applications. Typical usage of this microcontroller spans industrial automation, consumer electronics, automotive control systems, and laboratory instrumentation, offering reliable and configurable control solutions.
