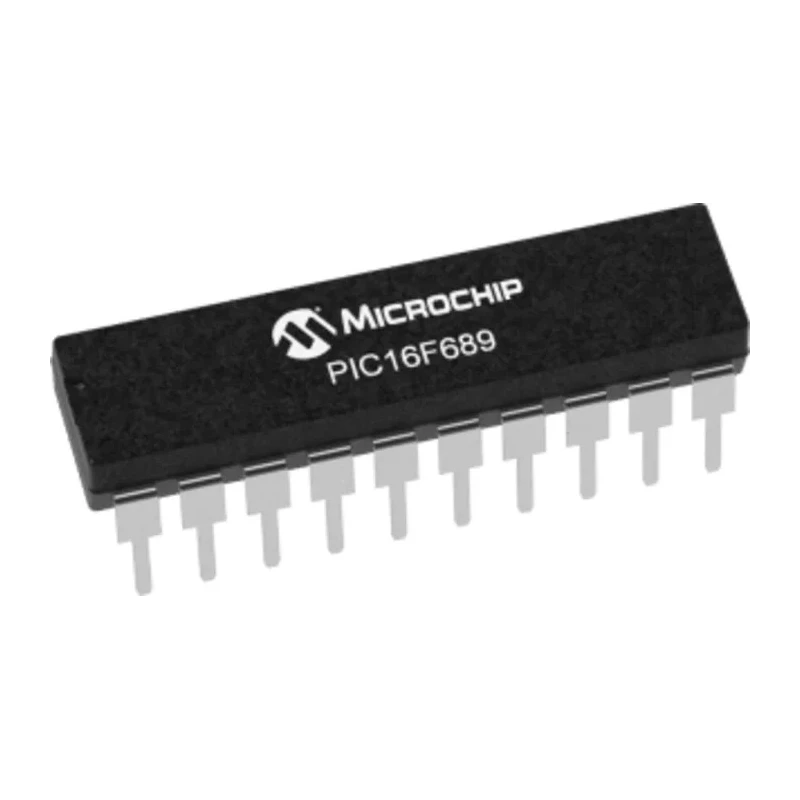

Microchip 8-Bit PIC16F Microcontroller 20 MHz, 7kB FLASH, 20-Pin PDIP PIC16F689-I/P

Microchip PIC16F689-I/P is an 8-bit PIC microcontroller that operates at a maximum clock speed of 20 MHz, providing efficient processing performance for embedded control applications. Its 7kB FLASH program memory and 256 bits of RAM allow for compact yet capable firmware implementations.

This microcontroller is packaged in a 20-pin PDIP form factor designed for through-hole mounting on printed circuit boards, measuring 26.92mm in length, 7.11mm in width, and 4.95mm in height, making it suitable for space-constrained designs. It functions over a robust voltage range from 2V minimum to 5.5V maximum and supports up to 18 programmable input/output pins for versatile interfacing.

Key embedded peripherals include 12 channels of 10-bit analog-to-digital converters ideal for sensor inputs, two analog comparators, and two timers (8-bit and 16-bit timers) that enable accurate timing and PWM generation. This device also features power management capabilities including Power-On Reset, Brown-Out Reset, Oscillator Start-Up Timer, and Watchdog Timer to ensure stable operation in industrial environments with operating temperatures spanning -40°C to +85°C.

Its architecture is based on a reduced instruction set computing (RISC) core with 35 instructions and an 8-level hardware stack, optimized for speed and code efficiency. Firmware updates and debugging are facilitated by In-Circuit Serial Programming (ICSP), enhancing ease of development and maintenance.

Operates at a maximum of 20 MHz clock frequency for responsive control. 7kB FLASH and 256 bits of RAM enable complex application support. Supports 18 programmable I/O pins for flexible system design. Includes 12 x 10-bit ADC channels and 2 analog comparators.

Equipped with multiple timers and enhanced PWM modules for diverse timing needs. Industrial grade operating temperature range from -40°C to 85°C. Compact 20-pin PDIP package suitable for through-hole mounting. Maximum power dissipation of 800mW maintains efficient power use.

RISC architecture with 35 instructions and robust hardware stack. Supports ICSP for streamlined programming and updating.

This microcontroller is widely employed in applications across industrial automation, consumer electronics, automotive electronics, and embedded systems requiring reliable, low-power 8-bit processing capabilities. It offers designers flexibility with a comprehensive peripheral set and industry-standard pin count for rapid integration and prototyping.
