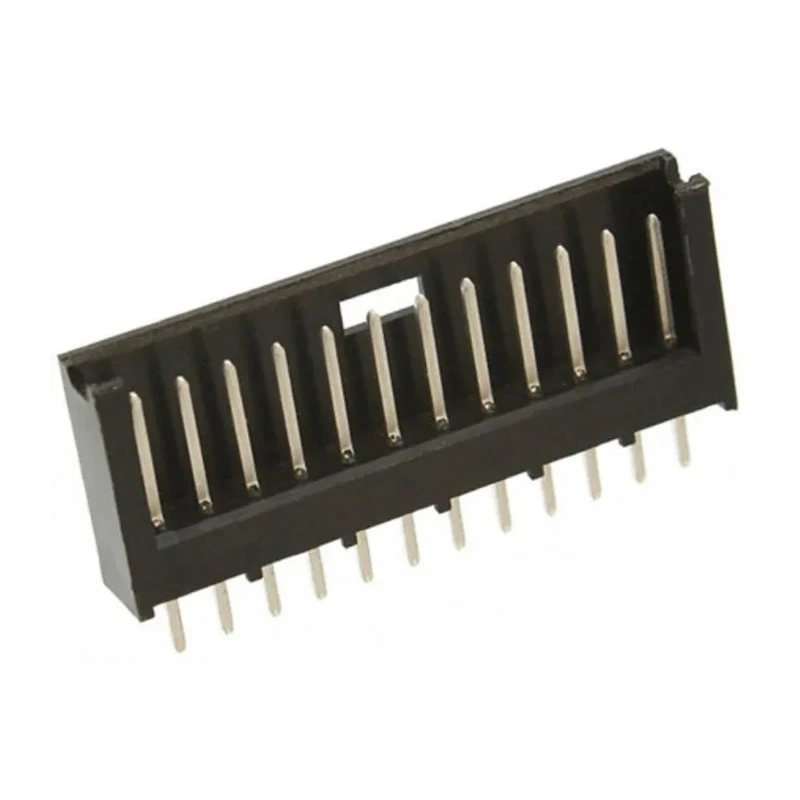

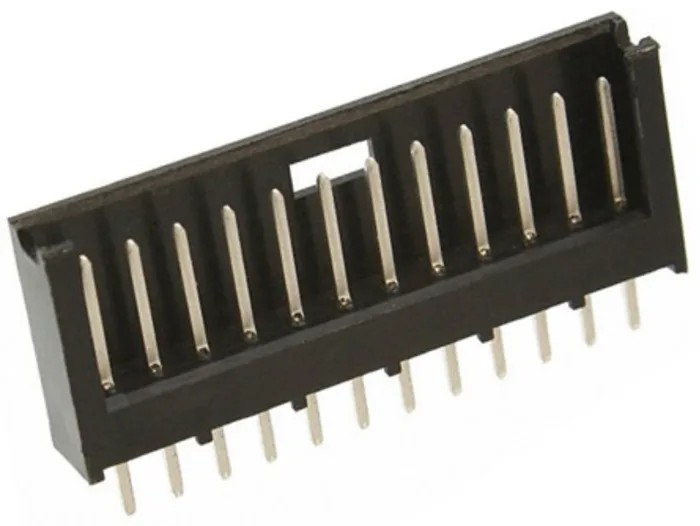

TE Connectivity AMPMODU Mod II Series Straight Through Hole Shrouded PCB Header, 12 Contacts, 2.54 mm Pitch, 1 Row 280520-1
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 280520-1 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Features shrouded housing for pin protection and polarization to prevent mismating.
- Offers a secure positive locking detent mechanism for reliable connections.
- Supports 3A current and operates up to 750V with a temperature range from -65°C to 105°C.
- Constructed with thermoplastic housing, phosphor bronze contacts, and tin plating.
- Designed for through-hole mounting with a single row and 3.5 mm tail pin length.
- Suitable for automotive, industrial, test equipment, telecommunications, medical instruments, and computing applications.
Product Description
TE Connectivity 280520-1 AMPMODU Mod II Series Straight Through Hole Shrouded PCB Header features a 2.54 mm pitch and 12 male contacts arranged in a single row, designed for board-to-board and wire-to-board connector systems. This shrouded header includes polarization on three sides, preventing mismating and enhancing connection reliability.
The housing material is durable thermoplastic, and contacts are made from phosphor bronze with tin plating to ensure excellent conductivity and corrosion resistance. It is rated for a current of 3A and voltage up to 750V, suitable for demanding operating conditions with a temperature range from -65°C to 105°C.
Mounting is through-hole style with a tail pin length of 3.5 mm facilitating solder terminations. The housing incorporates a detent window providing a positive locking mechanism for secure mating with compatible receptacles.
This PCB header is widely used in industrial automation, automotive controls, telecommunications equipment, computing devices, medical instruments, and storage appliances, offering reliable electrical connections in harsh environments.
Manufactured in Italy, this new product ensures quality and compliance with industrial standards, although no specific certifications are provided. Shrouded housing ensures pin protection and assists in correct connector alignment.
Detent locking mechanism provides secure positive connection. Thermoplastic housing withstands environmental stresses. Phosphor bronze contacts with tin plating deliver reliable electrical performance. Designed for through-hole mounting with single row and 2.54 mm pitch.
Applications include automotive, industrial automation, telecommunications, medical, and computing sectors. Explore more PCB Headers and connectors at EnvMart to find compatible products ensuring optimal system integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 2.54 mm.
This model features 12 male contacts arranged in a single row.
It operates at a maximum voltage of 750V.
The header is rated for a current of 3A.
It is constructed with a thermoplastic housing, phosphor bronze contacts, and features tin plating.
The operating temperature range is from -65°C to 105°C.
This unit is designed for through-hole mounting with a tail pin length of 3.5 mm.
It supports both board-to-board and wire-to-board connector systems.
Yes, it includes polarization on three sides to prevent mismating and enhance connection reliability.
It incorporates a positive locking detent mechanism for secure mating with compatible receptacles.
This product is manufactured in Italy.
It is suitable for applications in automotive, industrial automation, telecommunications, medical instruments, and computing devices.
