Crydom Solid State Relay Panel Mount 50A Load, 280 Vrms Load Voltage, 32V Control CWD2450-10

Crydom CWD2450-10 Solid State Relay is a panel mount device designed to switch electric loads up to 50 amperes with a maximum load voltage of 280 Vrms. It operates under a control voltage ranging from 3 to 32 volts, delivering reliable switching performance for industrial and automation applications.

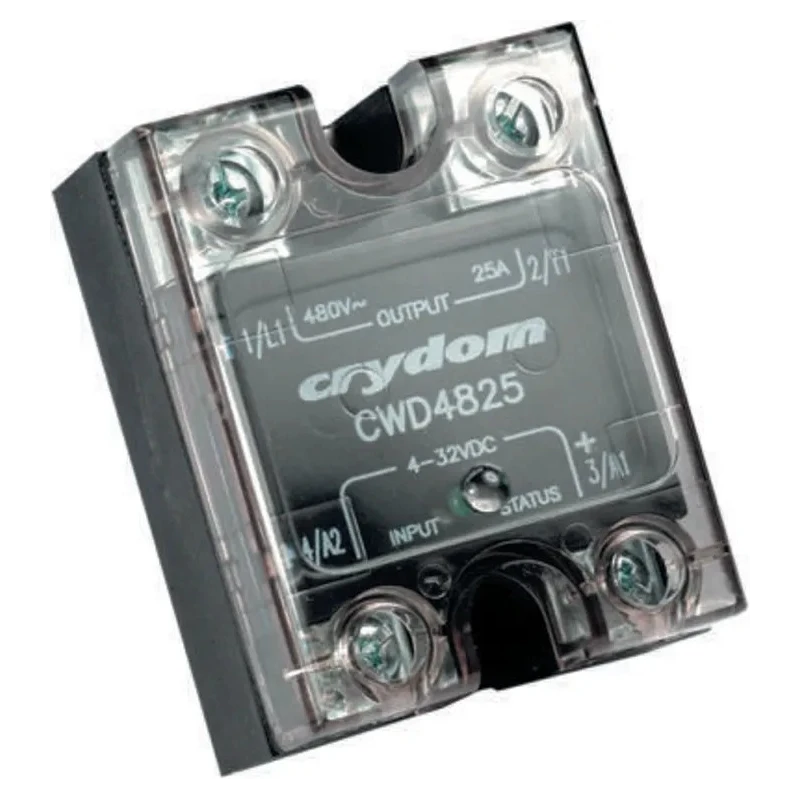

Constructed with screw terminals and an integrated removable fingerproof cover, the relay enhances safety during installation and operation. It features a single pole single throw (SPST) contact configuration with SCR output, providing instantaneous random voltage switching suited for sensitive electronic circuits.

The relay performs efficiently across a temperature range from -40°C to 80°C and includes an LED status indicator for clear operational monitoring. It is designed to minimize off-state leakage current to 1 milliampere while maintaining a low capacitance of 8 picofarads, ensuring reduced electrical noise.

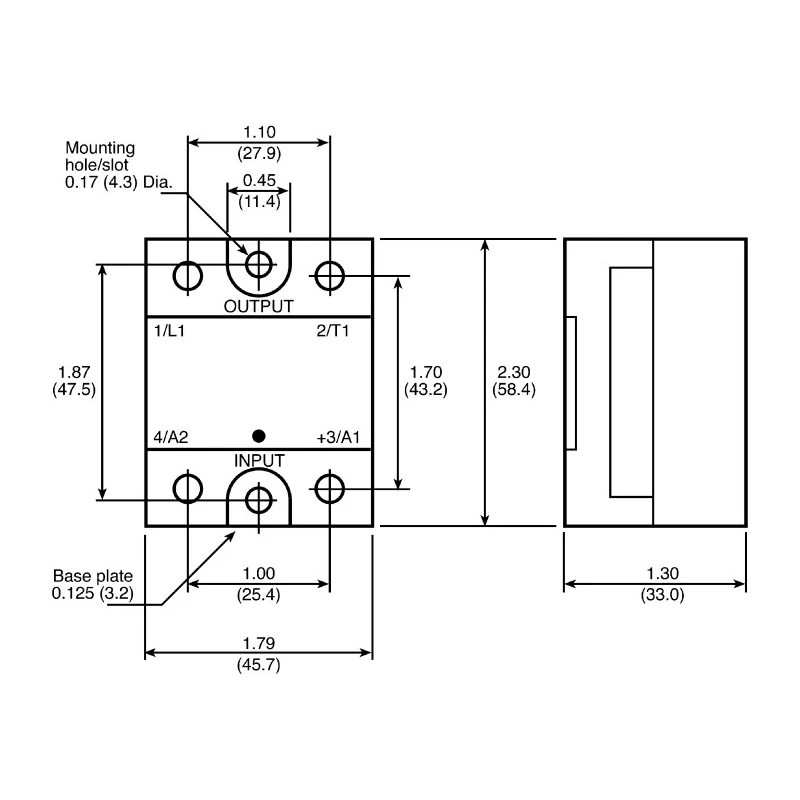

Designed for panel mounting, the device measures 45.7 mm in length, 33 mm in height, and 22 mm in width, allowing for compact integration in control panels and automation systems. Compliance with CE and RoHS standards demonstrates adherence to international safety and environmental regulations.

Typical applications include industrial automation, HVAC controls, motor control systems, and other electronic switching systems requiring reliable solid state relay performance in harsh environments. The CW series solid state relay by Crydom ensures durable operation with integrated features such as universal connectors and EMC compliance.

Supports maximum load current of 50 amperes for high-power applications. Panel mounting design with screw terminals ensures secure installation. Operates with minimum load voltage of 24 volts and maximum load voltage of 280 Vrms.

Control voltage range from 3 volts minimum up to 32 volts maximum facilitates versatile control options. Features SPST contact configuration and SCR output providing fast and efficient switching. Temperature rating allows operation from -40°C up to 80°C for diverse environments.

Low off-state leakage current of 1 mA reduces power losses when switched off. Capacitance of 8 pF ensures minimal electrical noise and interference. Integrated LED status indicator for visual operational feedback. Complies with CE and RoHS standards for safety and environmental requirements.
