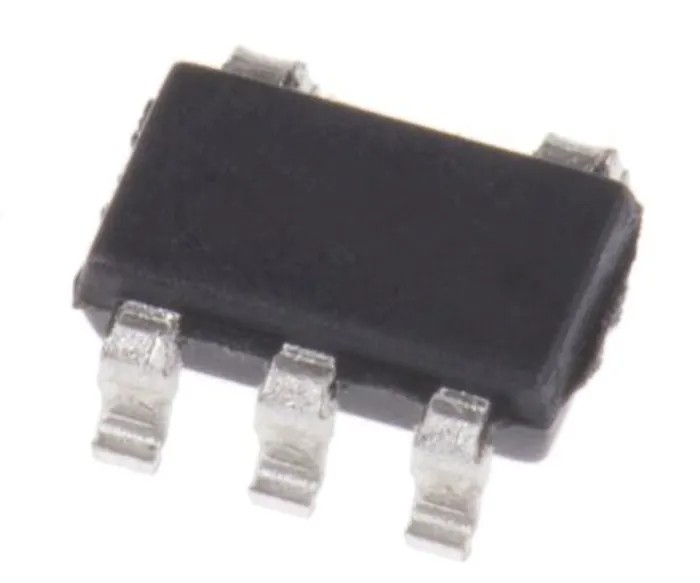

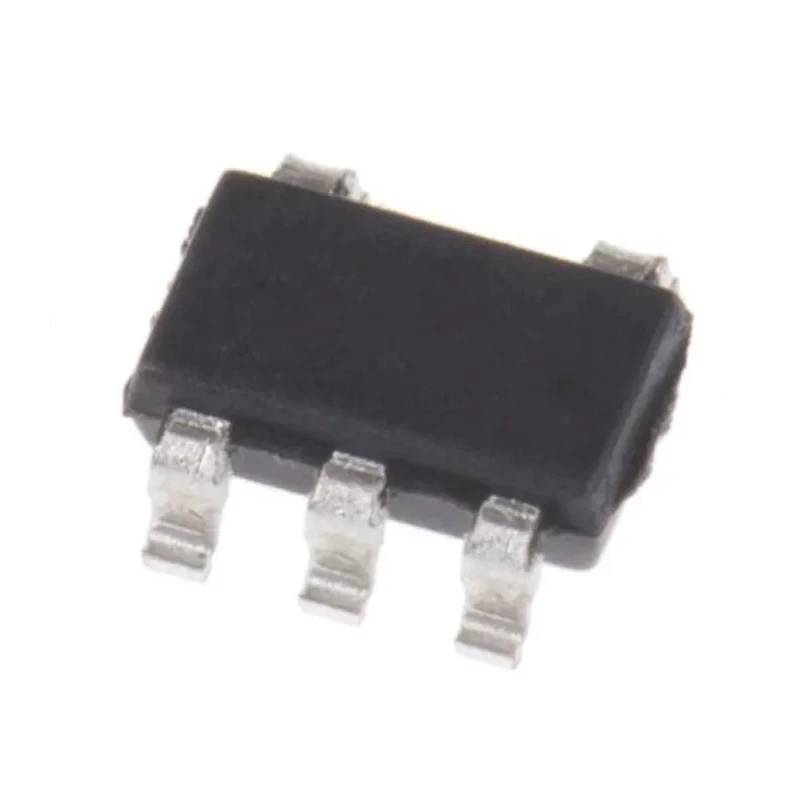

Maxim Integrated Multiplexer 1 CMOS SPST 5-Pin SOT-23 Logic IC MAX4514CUK+T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 1.3mm |
| Length | 3mm |
| Model | MAX4514CUK+T |
| Width | 1.75mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | MAX4514 |
| Configuration | SPST |
| Maximum Operating Temperature | 70°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 12V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 2V |
| Maximum On State Resistance | 25Ω |
Key Features
- Operates with a minimum supply voltage of 2V and a maximum of 12V.
- Features low maximum on-state resistance of 25 ohms for efficient signal switching.
- Designed for surface mount application with a compact 5-pin SOT-23 package.
- Temperature range supports operation from 0°C to 70°C for industrial and commercial electronics.
- Single-pole single-throw configuration with one element per chip for precise control.
- Compatible with both CMOS and TTL logic families and inputs.
- RoHS compliant meeting environmental regulations and quality standards.
- Ideal for automated test equipment, avionics, data acquisition, and industrial process control systems.
Product Description
Maxim Integrated MAX4514CUK+T is a high-performance multiplexer integrated circuit featuring a single CMOS SPST switch configuration in a compact 5-pin SOT-23 surface mount package. It supports a minimum supply voltage of 2 volts and operates reliably up to 12 volts, with a maximum on-state resistance of 25 ohms allowing low-resistance signal paths.
The device is designed to handle a broad operating temperature range from 0°C to 70°C, suitable for a wide range of industrial and commercial applications. It is compatible with both CMOS and TTL logic families, offering flexible interfacing options. The MAX4514 series provides excellent fault protection with power-off conditions, eliminating transition glitches and ensuring signal integrity.
This multiplexer IC is ideal for applications such as automated test equipment, avionics, data acquisition systems, industrial and process control, and redundant or backup systems. Its low power consumption of less than 2 mW contributes to energy-efficient designs.
The surface mount SOT-23 package dimensions are compact with length 3 mm, width 1.75 mm, and height 1.3 mm, facilitating integration in miniaturized electronic assemblies. Operates on a logic family of CMOS technology ensuring compatibility with modern digital circuits.
Features include ±40V fault protection with power-off and rail-to-rail signal handling. All switches turn off automatically during power-off for safety. Pincompatible with industry standard DG411/DG412/DG413 series devices.
Maxim Integrated's MAX4514CUK+T multiplexer is RoHS compliant, ensuring adherence to environmental standards for safer electronics manufacturing. Explore more from the Multiplexer & Demultiplexer ICs category for expanded solutions addressing various switching and multiplexing needs.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a minimum supply voltage of 2V and a maximum of 12V.
The maximum on-state resistance is 25 ohms, allowing for efficient signal switching.
The SOT-23 package dimensions are 3 mm in length, 1.75 mm in width, and 1.3 mm in height.
It can operate within a temperature range from 0°C to 70°C, suitable for industrial and commercial applications.
Yes, this model is compatible with both CMOS and TTL logic families, offering flexible interfacing options.
It features a single-pole single-throw (SPST) configuration with one element per chip for precise control.
This multiplexer is ideal for applications such as automated test equipment, avionics, data acquisition systems, and industrial process control.
The MAX4514CUK+T has a pin count of 5.
Yes, it is RoHS compliant, ensuring adherence to environmental regulations and quality standards.
It is designed for surface mount applications, making it suitable for compact electronic assemblies.
It has a low power consumption of less than 2 mW, contributing to energy-efficient designs.
