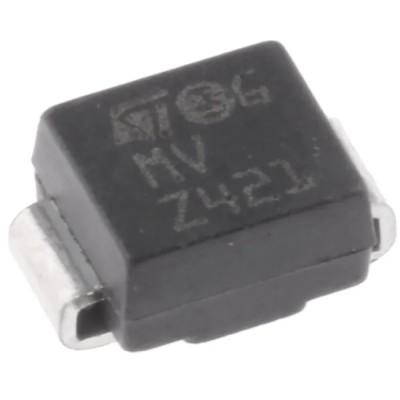

STMicroelectronics 1-Element Bi-Directional TVS Diode 600 W Surface Mount DO-214 SM6T10CA
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SM6T10CA |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SM6T |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 18.6V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 9.5V |
| Maximum Reverse Stand-off Voltage Vwm | 8.5V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 215A |
| Maximum Reverse Leakage Current | 20μA |
Key Features
- Designed for surface mount PCB applications with a 2-pin configuration.
- Provides reliable transient voltage suppression with a breakdown voltage of 9.5 V.
- Clamping voltage is rated at 18.6 V for effective surge protection.
- Operates within a temperature range from -55°C to 150°C for robust performance.
- Features a maximum peak pulse current of 215 A for high surge handling capability.
- Compact dimensions of 4.6mm length, 3.95mm width, and 2.45mm height enhance design flexibility.
- Ensures low reverse leakage current of 20μA minimizing power loss in circuits.
- Compliant with SM6T series specifications from STMicroelectronics for quality assurance.
Product Description
STMicroelectronics SM6T10CA is a 1-element bi-directional transient voltage suppression (TVS) diode designed for protecting sensitive electronics from surge voltages. This diode delivers a peak pulse power dissipation of 600 W, ideal for industrial, electronic, and communication equipment protection.
The device is housed in a compact DO-214 surface mount package with a 2-pin configuration, facilitating efficient PCB mounting and space-saving design.
STMicroelectronics SM6T10CA offers a minimum breakdown voltage (Vbr) of 9.5 V and a maximum reverse stand-off voltage (Vwm) of 8.5 V, providing precise voltage clamping at a clamping voltage (Vc) of 18.6 V to protect circuits from transients and surges.
It supports a wide operating temperature range from -55°C to 150°C, ensuring reliability in harsh industrial environments. Additionally, it features a maximum peak pulse current (Ippm) of 215 A and a low maximum reverse leakage current of 20μA, which helps maintain circuit efficiency.
With exact dimensions of 4.6mm length, 3.95mm width, and a height of 2.45mm, this diode provides a compact solution for protecting electronic components without compromising valuable PCB space.
Designed for surface mounting on printed circuit boards (PCB). Bi-directional configuration protects against positive and negative transient voltages. High surge current capability with 600 W peak pulse power dissipation.
Wide temperature tolerance for diverse industrial applications. Low leakage current to support energy-efficient circuits. Compact DO-214 package reduces PCB footprint. Ideal for use in power supplies, telecommunications, automotive electronics, and industrial control systems.
Reliable component from STMicroelectronics SM6T series for trusted protection.
STMicroelectronics products are widely used in electronic, industrial, and commercial applications to ensure transient voltage protection, safeguarding component longevity and system reliability. Discover more innovative semiconductor solutions in the TVS Diode category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage (Vbr) of the SM6T10CA diode is 9.5 V.
The maximum reverse stand-off voltage (Vwm) for the SM6T10CA is 8.5 V.
The clamping voltage (Vc) is rated at 18.6 V for the SM6T10CA diode.
The SM6T10CA diode has a peak pulse power dissipation of 600 W.
It can handle a maximum peak pulse current (Ippm) of 215 A.
The dimensions of the SM6T10CA are 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
The SM6T10CA operates within a temperature range from -55°C to 150°C.
This model is designed for surface mounting on printed circuit boards (PCB).
The diode features a 2-pin configuration.
The maximum reverse leakage current for the SM6T10CA is 20μA.
The SM6T10CA has a bi-directional configuration, allowing it to protect against both positive and negative transient voltages.
It is suitable for use in power supplies, telecommunications, automotive electronics, and industrial control systems.
