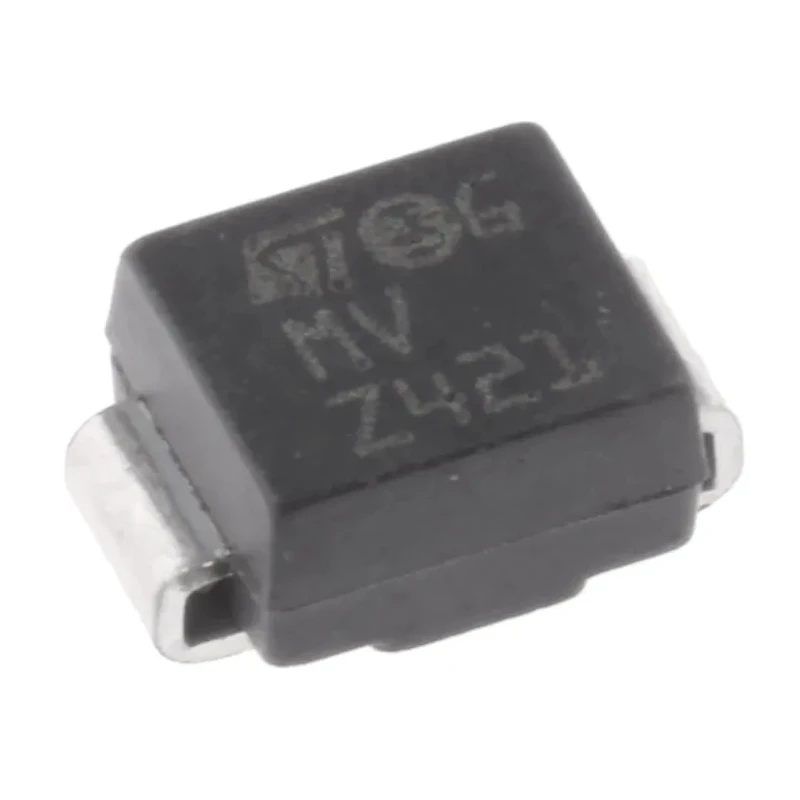

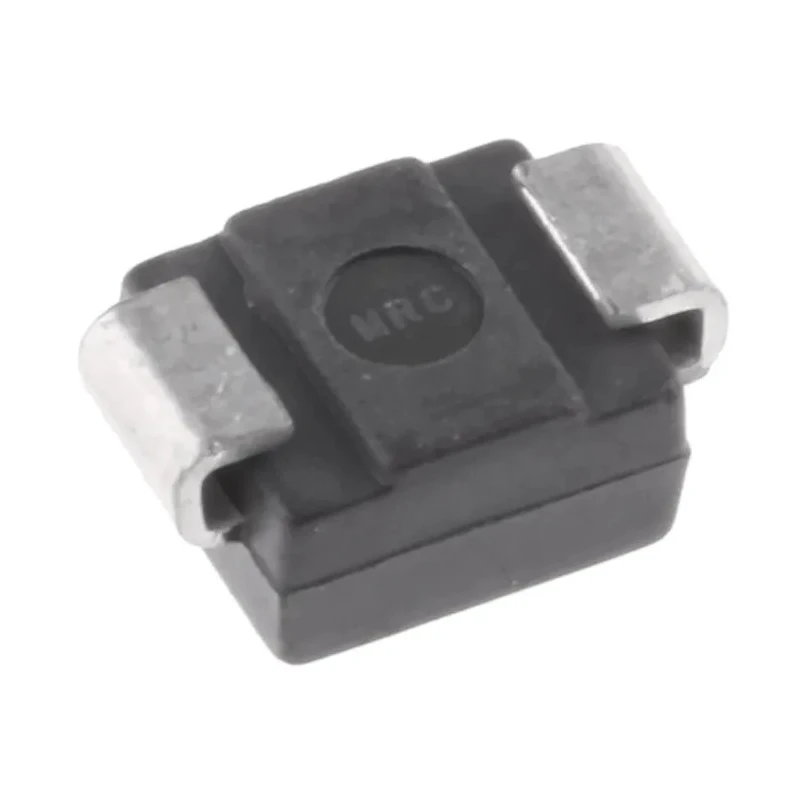

STMicroelectronics 1-Element Bi-Directional TVS Diode 600 W, Surface Mount DO-214 Package SM6T36CA
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SM6T36CA |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SM6T |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 64.3V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 34.2V |
| Maximum Reverse Stand-off Voltage Vwm | 30.8V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 62A |
| Maximum Reverse Leakage Current | 200nA |
Key Features
- Single diode configuration providing bi-directional voltage transient suppression.
- Peak pulse power dissipation rating of 600 watts for robust surge handling.
- Minimum breakdown voltage of 34.2 volts, ensuring device triggers at correct voltage.
- Maximum reverse stand-off voltage of 30.8 volts for steady device operation.
- Compact DO-214 surface mount package with dimensions 4.6mm length, 3.95mm width, and 2.45mm height.
- Wide operating temperature range from -55°C to 150°C for use in harsh environments.
- Maximum peak pulse current of 62 amperes for handling large transient events.
- Maximum reverse leakage current of 200 nanoamperes to minimize power loss during normal operation.
Product Description
STMicroelectronics SM6T36CA 1-Element Bi-Directional TVS Diode is a high performance transient voltage suppressor designed for protecting sensitive electronic components from voltage spikes and surges. This device provides reliable bi-directional protection with a surface mount DO-214 package that facilitates efficient PCB assembly.
With a peak pulse power dissipation capacity of 600 W, this TVS diode can withstand significant transient currents and voltage surges encountered in industrial, telecommunications, automotive, and consumer electronics applications. It has a minimum breakdown voltage of 34.2 V and a maximum reverse stand-off voltage of 30.8 V, ensuring effective suppression of voltage spikes while maintaining normal circuit operation.
The compact DO-214 package measures 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height, enabling space-saving layouts on circuit boards. It operates reliably across a wide temperature range from -55°C to 150°C, making it suitable for harsh operating environments.
Its extremely low maximum reverse leakage current of 200 nA reduces power losses and enhances overall circuit efficiency. The device supports a maximum peak pulse current of 62 A, providing robust transient event handling to protect circuitry from damage.
STMicroelectronics' SM6T36CA series is ideal for transient voltage suppression in critical electronic systems used in industrial controls, power management, telecommunications, and automotive electronics.
Single diode configuration providing bi-directional voltage transient suppression. 600 W peak pulse power dissipation capacity. Breakdown voltage: 34.2 V minimum. Reverse stand-off voltage: 30.8 V maximum. Surface mount DO-214 package with compact dimensions.
Operating temperature from -55°C to 150°C. Maximum peak pulse current: 62 A. Low maximum reverse leakage current: 200 nA. Explore the full range of TVS Diodes and Semiconductor components at EnvMart for reliable industrial and commercial electronic protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of this model is 600 watts, allowing it to handle significant voltage surges effectively.
The minimum breakdown voltage of the SM6T36CA is 34.2 volts, ensuring it triggers at the correct voltage during transient events.
The maximum reverse stand-off voltage for this diode is 30.8 volts, which allows for steady operation under normal conditions.
The DO-214 package measures 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height, making it suitable for compact PCB layouts.
This model can handle a maximum peak pulse current of 62 amperes, providing robust protection against transient events.
The operating temperature range for this diode is from -55°C to 150°C, allowing it to function in harsh environments.
The maximum reverse leakage current is 200 nanoamperes, which helps minimize power loss during normal operation.
This model features a single diode configuration, providing bi-directional voltage transient suppression.
The SM6T36CA uses a surface mount type, facilitating efficient assembly on printed circuit boards.
The clamping voltage (VC) of this diode is 64.3 volts, providing additional protection during voltage spikes.
This diode is suitable for applications in industrial controls, power management, telecommunications, and automotive electronics, protecting sensitive components from voltage spikes.
The test current (It) for this model is 1 milliampere, which is used during the testing of its electrical characteristics.
