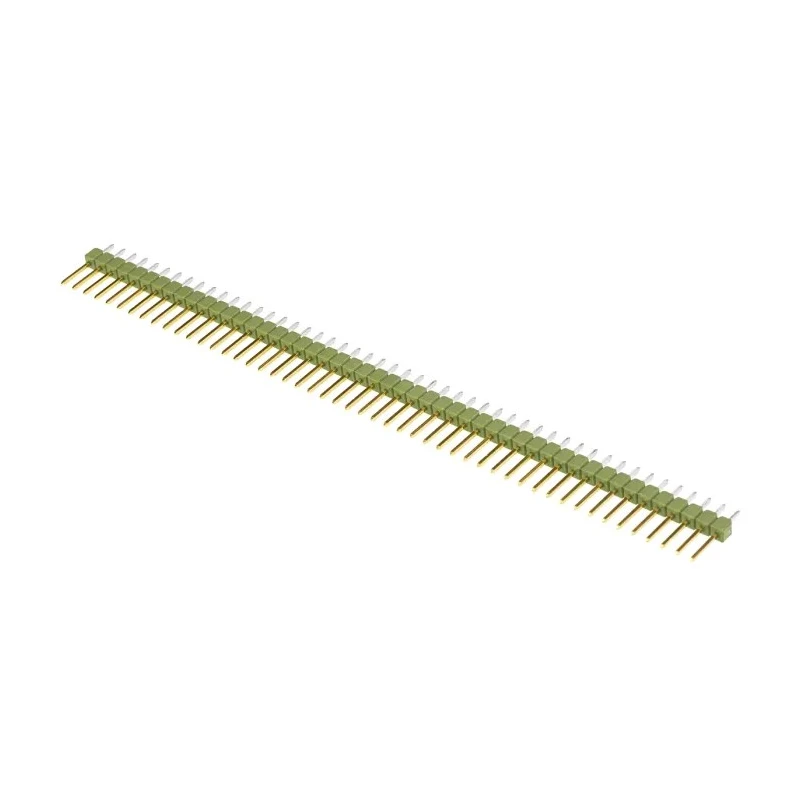

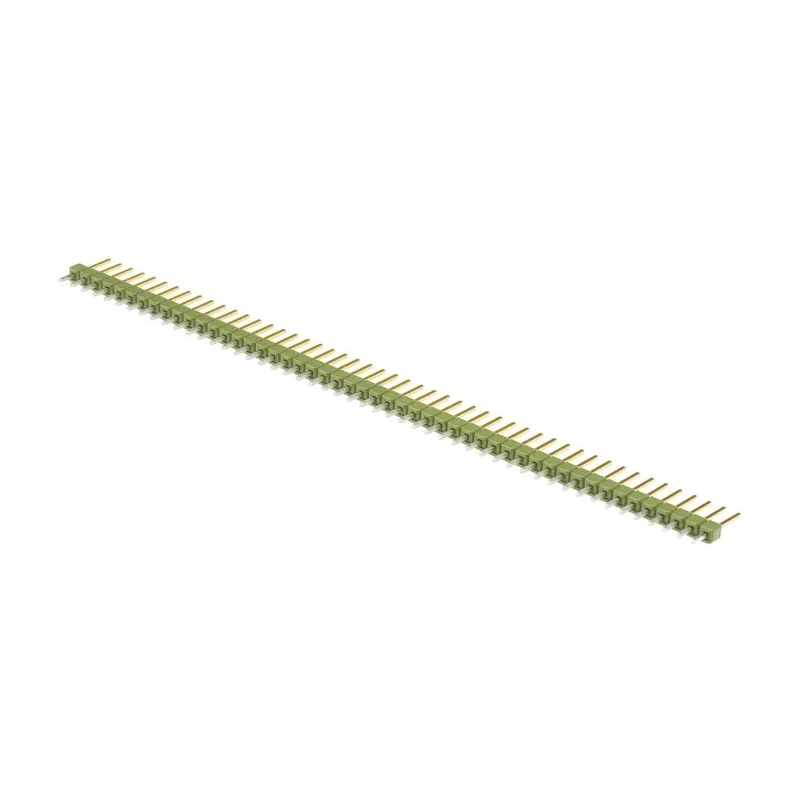

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 50 Contact(s), 2.54 mm Pitch, 1 Row 5-826629-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Compatible with board-to-board and wire-to-board connector systems.
- Features 50 male contacts arranged in a single straight row.
- Constructed with polyester housing for durability and electrical insulation.
- Gold-plated brass contacts ensure reliable conductivity and corrosion resistance.
- Rated for 750 V and 3A current capacity for robust electrical performance.
- Suitable for through hole mounting with solder termination type.
- Tail pin length of 3.2 mm and mating pin length of 6.7 mm for secure connections.
- Operating temperature range from -55°C to 105°C ensures performance in harsh environments.
Product Description
TE Connectivity 5-826629-0 AMPMODU MOD II Series Straight Through Hole Pin Header is a high-quality unshrouded pin header with 50 contacts arranged in a single row with 2.54 mm pitch, engineered for electronic applications requiring reliable board-to-board or wire-to-board connections.
Constructed with a durable polyester housing and brass contacts plated with gold, this component offers excellent conductivity and corrosion resistance. It is designed for through hole mounting with solder termination, making it ideal for secure and lasting integration into printed circuit boards.
The connector supports a maximum current rating of 3A and a voltage rating of 750V, suitable for a variety of electronic and electrical circuits. The pin header operates reliably in temperatures ranging from -55°C to 105°C, ensuring suitability for industrial and commercial settings.
This header’s unshrouded design provides easy access to the pins, allowing it to be snapped to the desired length according to specific application requirements. The tail pin length is 3.2 mm, while the mating pin length is 6.7 mm, facilitating secure mating with compatible receptacle housings and PCB connectors.
Compatible with board-to-board and wire-to-board connector systems. 50 male contacts in a single straight row. Polyester housing for robust electrical insulation. Gold-plated brass contact material for durability and conductivity.
3A current and 750V voltage ratings for reliable operation. Through hole mount with solder termination method. Operating temperature range from -55°C to 105°C. Unshrouded design with customizable length via snapping.
This product is widely used in electronic manufacturing, assembly, and repair for various applications including industrial, commercial, and consumer electronics. Its robust design and trusted brand make it a reliable choice for engineers and technicians seeking precise connectivity solutions.
Explore more TE Connectivity PCB Headers and connector components at EnvMart for your electronic system integration needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 750V.
This model features 50 male contacts arranged in a single straight row.
It is rated for a current capacity of 3A.
The housing is made of polyester, and the contacts are gold-plated brass.
The pitch size of the contacts is 2.54 mm.
The operating temperature range is from -55°C to 105°C.
This pin header is designed for through hole mounting with a solder termination method.
The tail pin length is 3.2 mm, and the mating pin length is 6.7 mm.
It is compatible with board-to-board and wire-to-board connector systems.
This pin header is unshrouded, allowing for easy access to the pins.
The country of origin for this product is India.
This pin header belongs to the AMPMODU MOD II Series.
