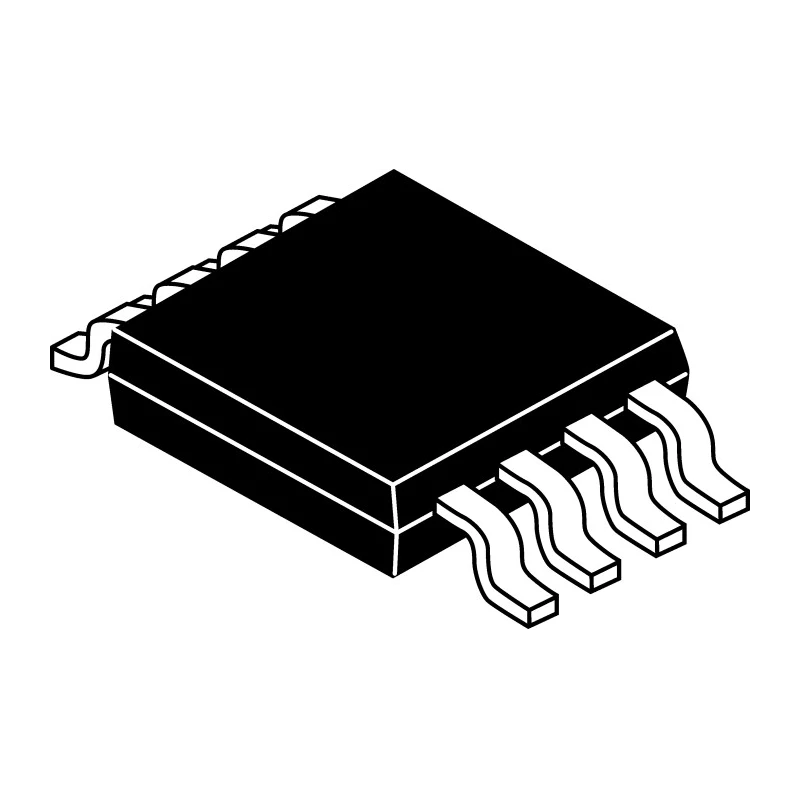

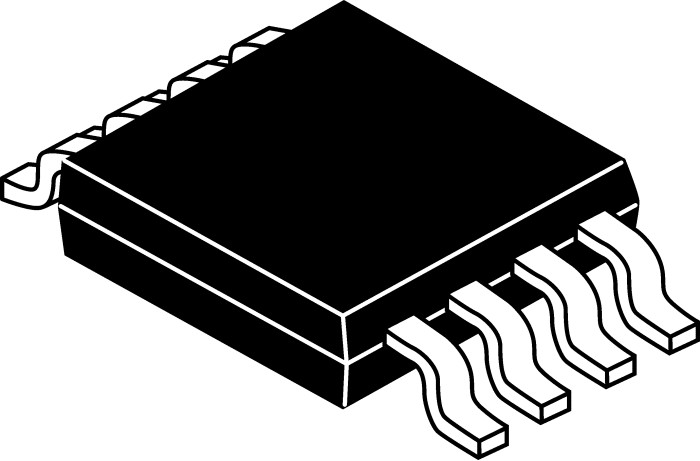

onsemi Operational Amplifier 2.2 MHz 8-Pin Surface Mount 13V MC33202DMR2G
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | onsemi |
| Height | 0.95mm |
| Length | 3.1mm |
| Model | MC33202DMR2G |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | MC33202 |
| Output Current | 80mA |
| Maximum Operating Temperature | 105°C |
| Package Type | Micro |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 13V |
| GBP - Gain Bandwidth Product | 2.2MHz |
| Input Bias Current | 200 nA |
| Vos - Input Offset Voltage | 11 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 100 nA |
Key Features
- Operates at a maximum supply voltage of 13 volts.
- Gain bandwidth product of 2.2 MHz ensures stable amplification performance.
- Single channel operational amplifier in a compact micro package.
- Low input bias current of 200 nanoamperes for precision applications.
- Wide operating temperature range from -40 to 105 Celsius degrees.
- High output current capability up to 80 milliamperes.
- Low supply current consumption of approximately 0.9 mA.
- Includes automotive standard compliance AEC-Q100 and RoHS certification.
Product Description
onsemi MC33202DMR2G is a high-performance operational amplifier with a gain bandwidth product of 2.2 MHz. It is housed in a compact 8-pin micro surface mount package suitable for space-constrained electronic designs. Operating at a maximum supply voltage of 13 volts, this single channel amplifier supports low voltage single supply operation ranging from +1.8V to +12V, making it versatile for various low power applications.
Featuring low input bias current and input offset voltage, the MC33202DMR2G ensures precision signal amplification with minimal drift. It offers output voltage swings within 50 mV of both supply rails with no phase reversal, allowing for robust analog signal processing. The device also provides a high output drive current capability of 80 mA and a typical slew rate of 1 V/µs, suitable for driving moderate loads.
This operational amplifier is compliant with automotive grade standards (AEC-Q100) and RoHS directives, making it reliable for automotive and industrial applications. It supports extended temperature ranges from -40°C to 105°C, ensuring stable performance under harsh environmental conditions.
Typical use cases include industrial control systems, automotive electronics, sensor signal conditioning, portable instrumentation, and low voltage analog circuitry requiring reliable amplification with minimal power consumption. Its small form factor (3.1 mm x 3.1 mm x 0.95 mm) allows for compact PCB layouts in manufacturing and electronics design.
Operates at maximum supply voltage of 13 V. Gain bandwidth product of 2.2 MHz for stable amplification. Low input bias and offset currents for accuracy. High output current (80 mA) suitable for driving loads. Extended operating temperature range -40 to 105°C.
Compact 8-pin micro surface mount package. Meets automotive AEC-Q100 and RoHS standards. This product is part of the extensive range of semiconductor Operational Amplifiers available for industrial and electronic applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 2.2 MHz, ensuring stable amplification performance.
It operates at a maximum supply voltage of 13 volts.
This model can provide a high output current capability of up to 80 milliamperes.
The operational amplifier supports an extended operating temperature range from -40°C to 105°C.
The dimensions of this operational amplifier are 3.1 mm in length, 3.1 mm in width, and 0.95 mm in height.
It is housed in a compact 8-pin micro surface mount package.
The input bias current is specified at 200 nanoamperes, suitable for precision applications.
Yes, it meets the automotive standard AEC-Q100, making it suitable for automotive applications.
The typical slew rate is 1 V/µs, which is suitable for driving moderate loads.
The input offset voltage is specified at 11 millivolts, ensuring accuracy in signal amplification.
It is compliant with RoHS directives, ensuring it meets environmental standards.
It is suitable for industrial control systems, automotive electronics, sensor signal conditioning, and low voltage analog circuitry.
