Carlo Gavazzi RM1 Series Solid State Relay, 50 A Load Current, Panel Mount, 530 V Load Voltage, 280V AC Control RM1A48A50

Free Delivery in India | Lowest Global Shipping Charges

Carlo Gavazzi RM1 Series Solid State Relay, 50 A Load Current, Panel Mount, 530 V Load Voltage, 280V AC Control RM1A48A50

Name: Carlo Gavazzi RM1 Series Solid State Relay, 50 A Load Current, Panel Mount, 530 V Load Voltage, 280V AC Control RM1A48A50
Brand: Carlo Gavazzi
SKU: 334058
Price: 10099.31 INR
Availability: InStock



Category Solid State Relay Brand Carlo Gavazzi Condition New

Specifications

Country of Origin	China
Brand	Carlo Gavazzi
Height	28.8mm
Length	44.8mm
Model	RM1A48A50
IP Rating	IP20
Width	58.2mm
Mount Type	Panel
Output type	Thyristor
Series	RM1
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Terminal type	Screw
Switching Function	Zero Cross Switching
Maximum Load Current	50A
Standards/Approvals	CE, CSA, UR
Maximum Load Voltage	530V
Minimum Load Voltage	480V
Minimum Control Voltage	20V
Maximum Control Voltage	280V ac
Off State Leakage Current	3mA

Key Features

Supports maximum load voltage of 530 V for robust operation.
Operates with control voltage up to 280V AC for versatile compatibility.
Features zero cross switching function to reduce electrical noise.
Equipped with screw terminals for secure and easy wiring.
IP20 rated enclosure offers protection against solid objects and safe operation.
Operates within temperature range of -20°C to 70°C for industrial environments.
Integrated LED indicator shows presence of mains voltage for easy status monitoring.
Uses thyristor output type for efficient switching performance.

Product Description

Carlo Gavazzi RM1A48A50 is a single-phase solid state relay from the RM1 Series designed for panel mounting with a maximum load current of 50 A and maximum load voltage of 530 V. The device supports a control voltage of up to 280V AC, ensuring reliable operation in automation and electrical control systems.

This solid state relay incorporates zero cross switching technology, reducing electrical noise and stress on connected loads during switching cycles. The relay includes screw terminals for secure electrical connection and an IP20 rated enclosure, offering protection against accidental contact and ingress of solid foreign objects.

It operates efficiently within a temperature range of -20°C to 70°C, supported by integrated transient voltage protection (except RS1A variant). The relay features a thyristor output type that provides dependable switching for industrial applications such as HVAC control, manufacturing processes, and electrical automation systems.

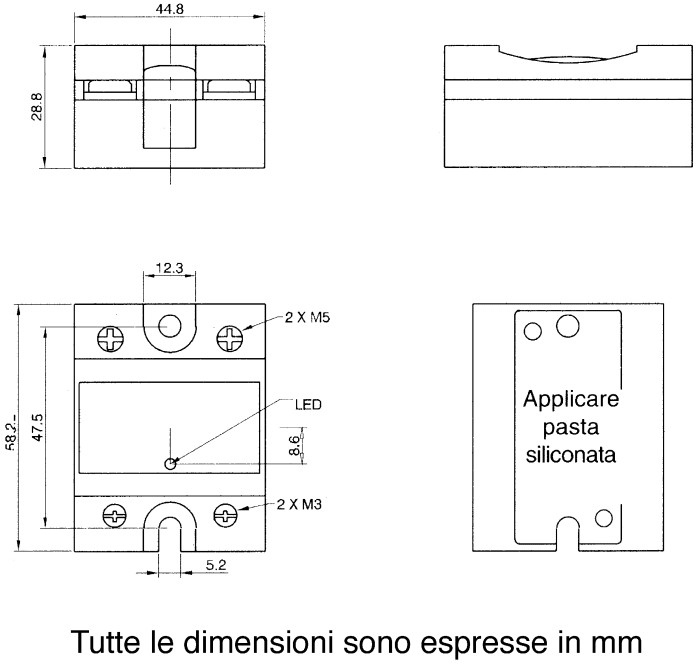

The compact dimensions - 44.8 mm length, 58.2 mm width, and 28.8 mm height - allow easy integration into panel-mount setups with an LED that indicates mains voltage presence for quick diagnostics. Certified with CE, CSA, and UR standards, it meets global safety and quality demands, and is manufactured in China.

Supports 50 A load current for handling significant power requirements. Panel mount design compatible with electrical and automation panels. Zero cross switching minimizes transient voltage effects. IP20 protection rating for user safety and dust prevention.

Thyristor output provides noiseless and efficient switching. Integrated LED indicator for operational status monitoring. Wide operating temperature range from -20°C to 70°C supports diverse applications. Screw terminal connections ensure reliable wiring.

Complies with CE, CSA, and UR certifications for quality assurance. Compact dimensions facilitate easy mounting in control panels.

This Solid State Relay from Carlo Gavazzi is ideal for industrial, commercial, and HVAC control applications requiring high reliability and clean switching performance. Explore a wide range of relays and automation control products available in the Electronics & Electricals category at EnvMart.
