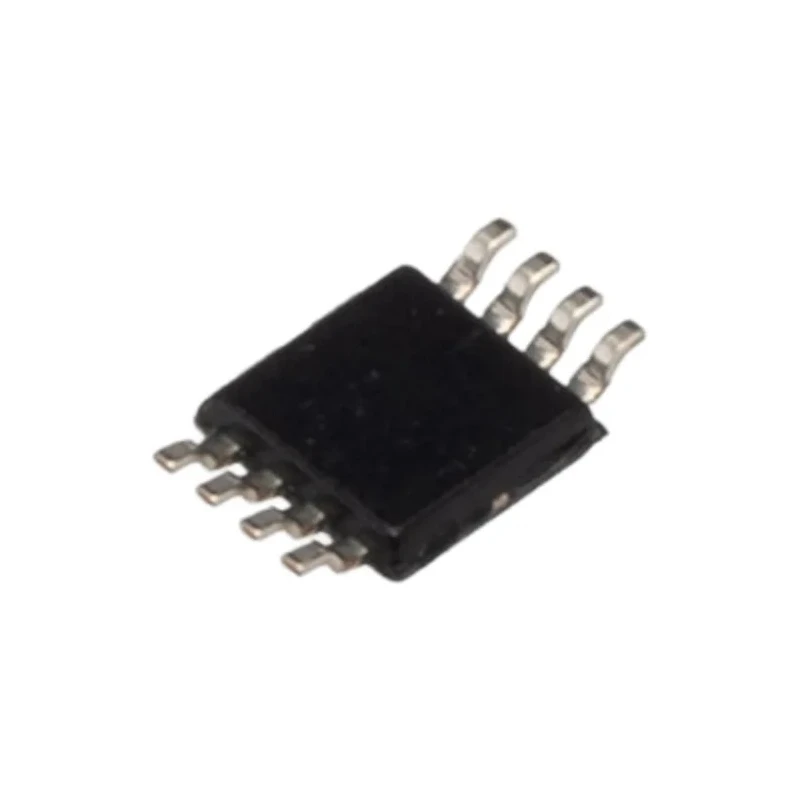

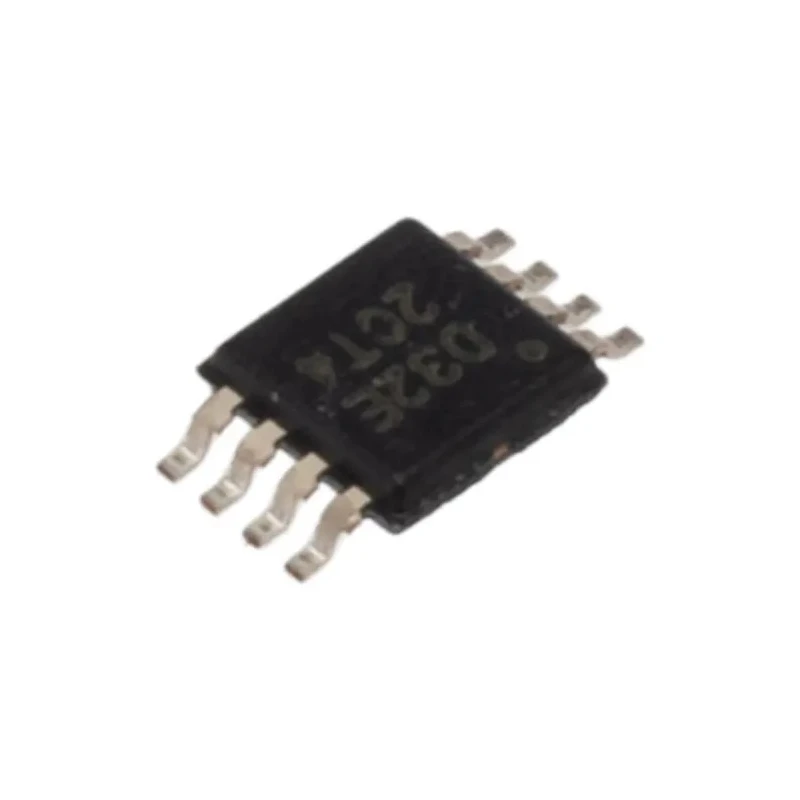

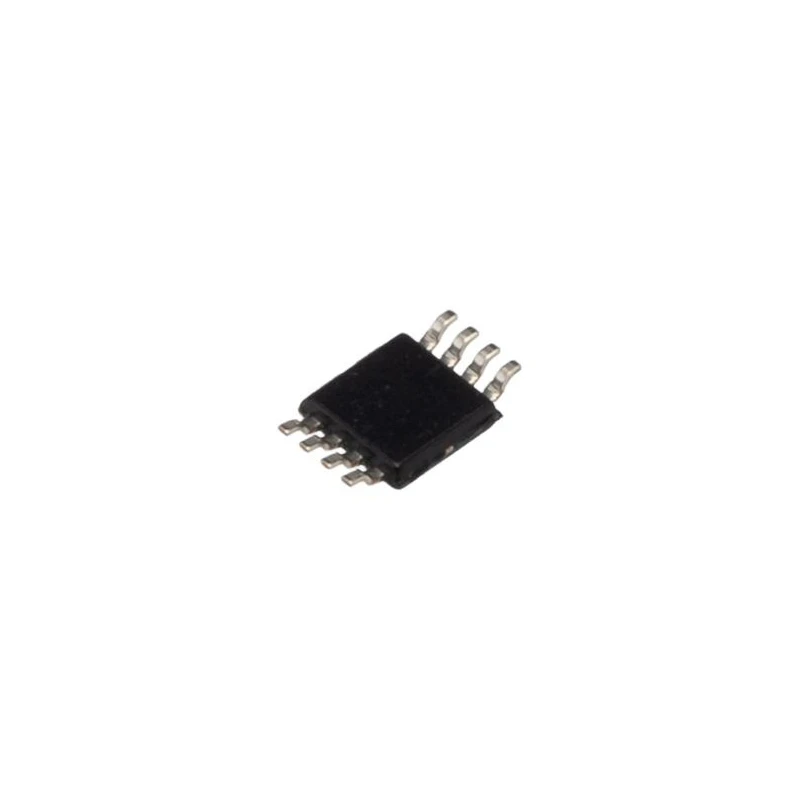

Texas Instruments 16-Bit 2-Channel Digital to Analogue Converter SPI, Microwire, QSPI, 93 ksps, 8-Pin MSOP DAC8532IDGK
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Texas Instruments |
| Model | DAC8532IDGK |
| Mount Type | Surface |
| Settling Time | 10μs |
| Sampling rate | 93ksps |
| Maximum Operating Temperature | 105°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Interface Type | SPI, Microwire, QSPI |
| Architecture | Resistor String |
| Standards/Approvals | EN 61340-5-1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.3V |
Key Features
- Features a resistor string architecture for precise analog conversion.
- Provides a 16-bit resolution to ensure high accuracy output.
- Dual-channel output supports versatile signal scaling applications.
- Surface mount type package suitable for compact PCB designs.
- Operates with supply voltage ranging from 3.3V to 5.5V enhancing flexibility.
- Fast settling time of 10 microseconds for responsive signal output.
- Wide operating temperature range from -40°C to 105°C for robust industrial use.
- Supports SPI, Microwire, and QSPI interfaces enabling multi-protocol compatibility.
Product Description
Texas Instruments DAC8532IDGK is a 16-bit dual-channel digital to analog converter designed to convert digital signals into precise analog voltages using a resistor string architecture. It supports SPI, Microwire, and QSPI interface types, making it versatile for electronic systems requiring multi-protocol communication.
Housed in a compact 8-Pin MSOP surface mount package, this DAC operates at a sampling rate of 93 ksps and accepts a supply voltage between 3.3V and 5.5V. It features a fast settling time of 10 microseconds, enabling quick and accurate output signal generation suitable for audio and general-purpose applications.
Engineered for a broad operating temperature range from -40°C to 105°C, it is compatible with demanding industrial environments. The device complies with the EN 61340-5-1 electrostatic discharge protection standard but does not include automotive standard certification.
Applications include data conversion in instrumentation, control systems, signal processing, and embedded systems in industrial and electronic manufacturing sectors. The surface mount MSOP package supports easy integration into compact circuit boards, improving manufacturing efficiency and product miniaturization.
Resistor string architecture ensures accurate analog output. High 16-bit resolution for precision signal control. Dual-channel configuration for multi-signal processing. Surface mount 8-pin MSOP package facilitates compact designs.
Operating voltage flexibility between 3.3V and 5.5V. Fast 10 microsecond settling time for real-time applications. Wide temperature tolerance for industrial reliability. Multi-interface compatibility: SPI, Microwire, QSPI.
Compliance with EN 61340-5-1 standards. Not certified for automotive applications. Discover more Digital to Analogue Converters and electronic components on EnvMart for your industrial, laboratory, and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a resolution of 16 bits, ensuring high accuracy in analog output.
The maximum supply voltage is 5.5V, allowing for flexible power supply options.
It supports SPI, Microwire, and QSPI interfaces, providing compatibility with various systems.
The sampling rate is 93 ksps, facilitating efficient signal processing.
It operates within a temperature range of -40°C to 105°C, suitable for industrial applications.
It features a fast settling time of 10 microseconds, enabling responsive signal output.
It is housed in an 8-Pin MSOP surface mount package, which is suitable for compact PCB designs.
Yes, it complies with the EN 61340-5-1 electrostatic discharge protection standard.
The minimum supply voltage is 3.3V, enhancing its operational flexibility.
