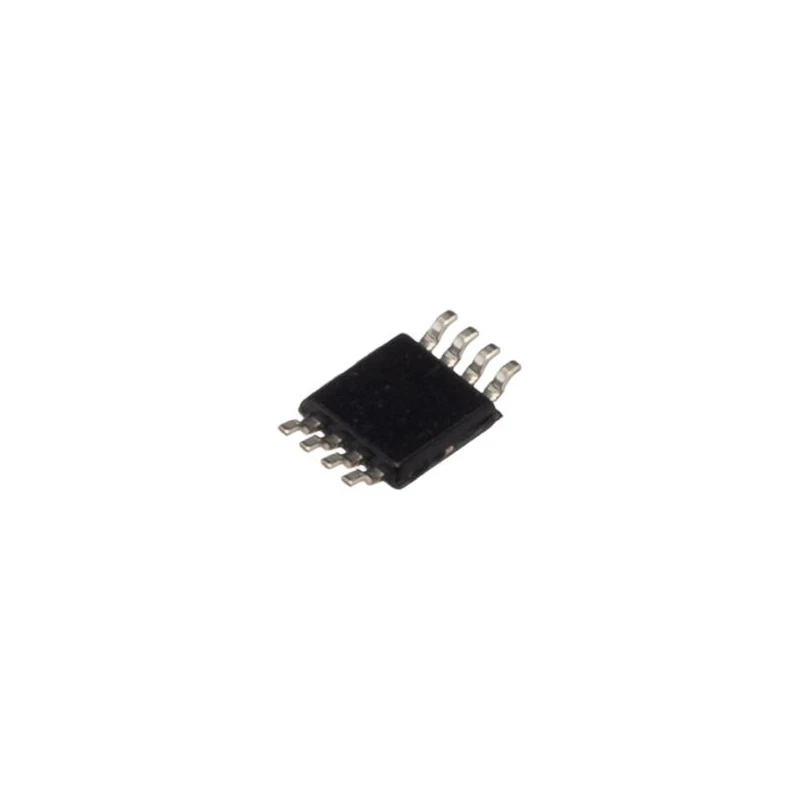

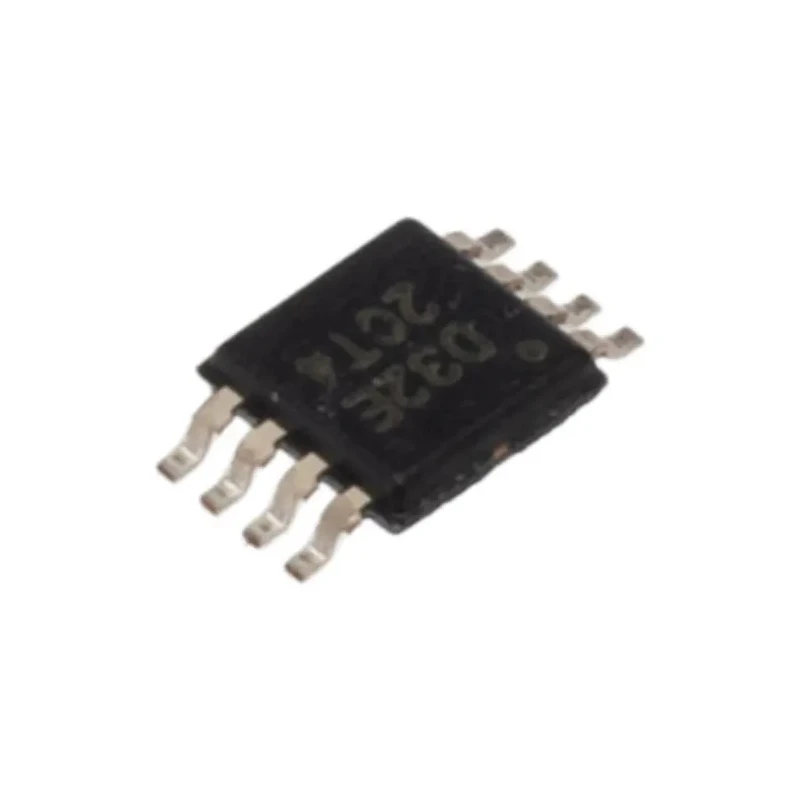

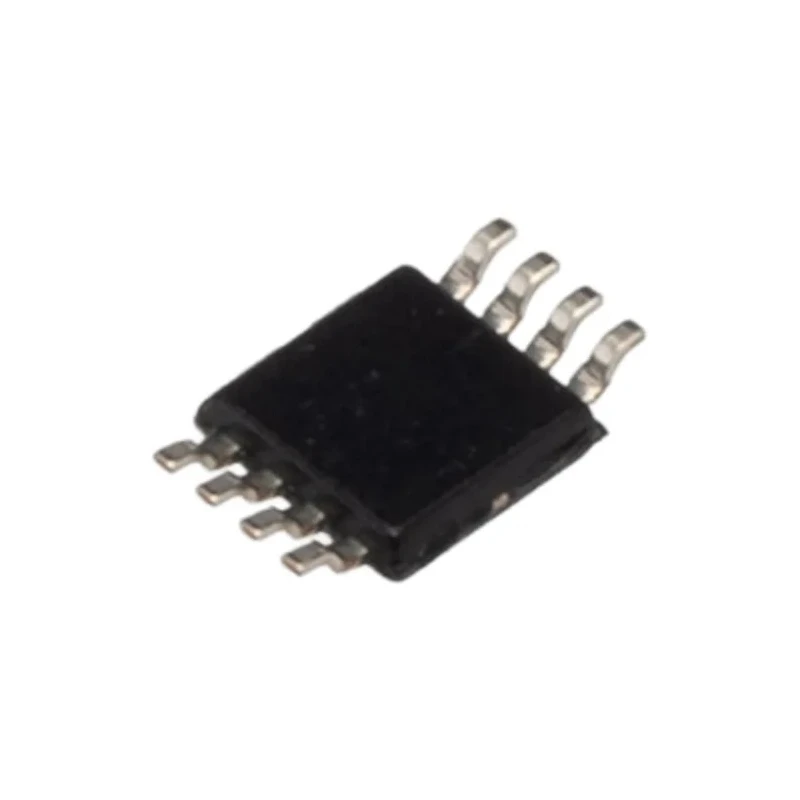

Texas Instruments Digital to Analogue Converter 16 bit 2-Channel SPI, Microwire, QSPI Interface, 93 ksps DAC8532IDGK
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Texas Instruments |
| Model | DAC8532IDGK |
| Mount Type | Surface |
| Settling Time | 10μs |
| Sampling rate | 93ksps |
| Maximum Operating Temperature | 105°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Interface Type | SPI, Microwire, QSPI |
| Architecture | Resistor String |
| Standards/Approvals | EN 61340-5-1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.3V |
Key Features
- Resistor string architecture delivers reliable analog conversion.
- 16 bit resolution ensures precise analog output signals.
- Two channel output enables multi-signal generation.
- Surface mount MSOP package with 8 pins for compact PCB integration.
- Operating voltage range from 3.3V minimum to 5.5V maximum.
- Fast settling time of 10 microseconds suitable for high-speed applications.
- Temperature range from -40°C to 105°C for industrial grade use.
- Interface supports SPI, Microwire, and QSPI protocols.
Product Description
Texas Instruments DAC8532IDGK is a 16 bit resolution, 2-channel Digital to Analogue Converter suitable for precise analog signal generation in diverse electronic applications. It features a resistor string architecture and supports SPI, Microwire, and QSPI interface types, offering flexible communication options for embedded and industrial systems.
The device operates with a supply voltage ranging from 3.3V to 5.5V and is housed in a compact 8-Pin MSOP surface-mount package, making it suitable for space-constrained PCB designs. With a fast settling time of 10 microseconds and a sampling rate of 93 ksps, it effectively supports applications requiring rapid signal transitions.
Its operating temperature range from -40°C to 105°C ensures reliable performance in various environmental conditions including industrial, laboratory, communication equipment, and measurement instrumentation. The DAC8532IDGK complies with the EN 61340-5-1 electrostatic discharge standard, enhancing device robustness.
This digital to analogue converter is commonly employed in data conversion tasks within automotive systems (non-certified), industrial control, audio applications, and embedded processing units requiring precise analog output.
Resistor string architecture provides stable and accurate DAC operation. Full 16-bit resolution ensures detailed signal analog representation. Two independent output channels increase functional flexibility. Compact 8-Pin MSOP package enables integration in dense electronic environments.
Wide operating voltage supports diverse system conditions. Fast settling time suitable for high-speed data conversion and signal updates. Wide operating temperature range supports industrial and commercial deployment. Support for SPI, Microwire, and QSPI communication standards.
Conformance to ESD standard EN 61340-5-1 safeguards the device during handling. Applicable across industrial, electronic instrumentation, and embedded system use cases.
Discover more industrial-grade Digital to Analogue Converters from Texas Instruments on EnvMart. Explore our semiconductor and electronic components categories for a broad selection of reliable products designed for precise electronic signal processing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a resolution of 16 bits, ensuring precise analog output signals.
The maximum operating temperature is 105°C, making it suitable for industrial applications.
It has a sampling rate of 93 ksps, which supports rapid signal transitions.
This model supports SPI, Microwire, and QSPI interface types, providing flexible communication options.
The settling time is 10 microseconds, suitable for high-speed applications.
It operates with a supply voltage ranging from 3.3V to 5.5V.
This model features two independent output channels, allowing for multi-signal generation.
It comes in a compact 8-pin MSOP surface-mount package, ideal for space-constrained PCB designs.
The operating temperature range is from -40°C to 105°C, suitable for various environmental conditions.
It complies with the EN 61340-5-1 electrostatic discharge standard, enhancing device robustness.
