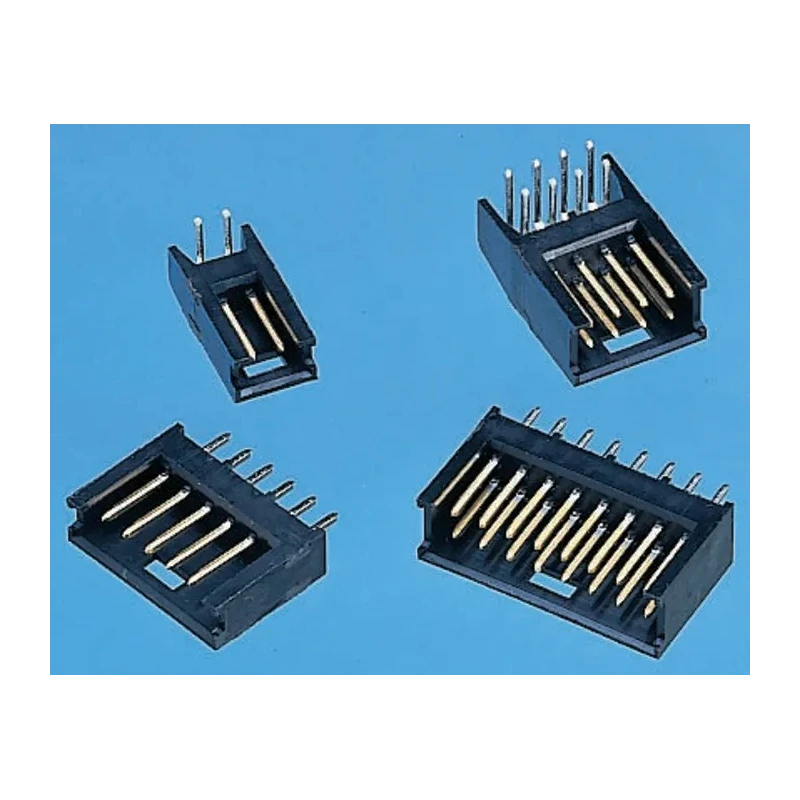

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole PCB Header, 8 Contacts, 2.54 mm Pitch, 1 Row 280380-2

TE Connectivity 280380-2 AMPMODU MOD II Series Right Angle Through Hole PCB Header provides a robust solution for printed circuit board interconnections, featuring an 8-contact single row with a 2.54 mm pitch. The shrouded housing design offers protection to the pins and ensures polarization to prevent incorrect mating, enhancing connection reliability in industrial, automotive, telecommunications, medical, and computer equipment environments.

The header includes brass contacts with gold plating that guarantee excellent electrical conductivity and corrosion resistance. Its right angle orientation and through-hole mount type make it ideal for board-to-board or wire-to-board configurations in automation and control systems. It supports a current of 3 amps and a voltage rating of 750 volts, suitable for demanding electronic applications.

Operating temperature ranges from -65°C up to 105°C, allowing the header to perform reliably in a variety of environmental conditions. The termination type is solder, compatible with standard PCB manufacturing processes. Its single row design and tail pin length of 3.5 mm facilitate secure attachment and mechanical strength.

The connector system is part of the renowned AMPMODU Interconnect System, established for its reliable and economical performance in signal interconnections in automation and industrial control. The detent positive locking mechanism in the housing secures the header to the mating receptacle, preventing loosening or accidental disconnection during operation.

Applications span automotive controls, industrial and test equipment, computers, telecommunications, medical devices, storage equipment, and household appliances. Manufactured in Italy, this new product offers assured quality and adherence to TE Connectivity standards, though it has no specific international certifications indicated.

Features a shrouded housing for pin protection and polarization to prevent mismating. Suitable for board-to-board and wire-to-board applications with a right angle orientation. Constructed with brass contacts plated in gold for superior conductivity.

Supports up to 3 amp current at 750 V working voltage. Designed for through-hole mounting and solder termination. Operates reliably between -65°C and 105°C temperature range. The single row, 8-contact configuration has a tail pin length of 3.5 mm.

Resistant to mismating due to detent positive locking mechanism. Explore more PCB Headers and connectors from TE Connectivity at EnvMart for your industrial and electronic component needs.
