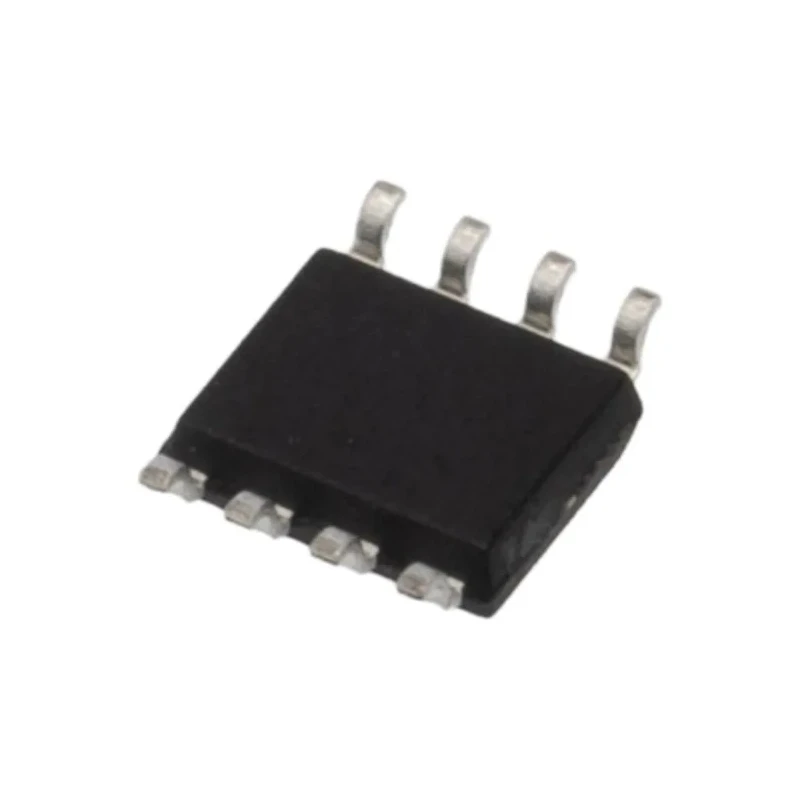

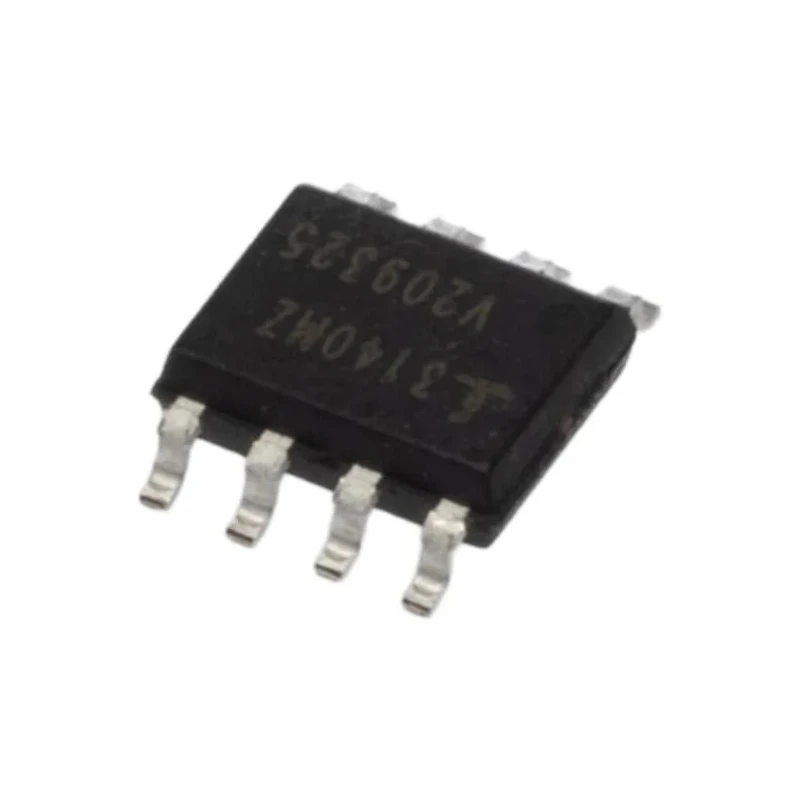

Renesas Electronics Operational Amplifier 3.7 MHz 8-Pin SOIC 36V CA3140MZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 1.5mm |
| Length | 5mm |
| Model | CA3140MZ |
| Width | 4mm |
| Mount Type | Surface |
| Output Current | 10mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3.7MHz |
| Input Bias Current | 50 pA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 7V/μs |
| Input Offset Current | 20 pA |
Key Features
- Features a BiMOS design with MOSFET input and bipolar output for high input impedance and low input current.
- Supports a wide supply voltage range from 5V to a maximum of 36V.
- Provides a slew rate of 7 V/μs ensuring fast response times.
- Operates reliably across a temperature range of -55°C to 125°C.
- Input offset voltage typically around 5 mV for precision signal processing.
- Output current capability up to 10 mA.
- Designed without automotive approval but suitable for general electronic component applications.
Product Description
The Renesas Electronics CA3140MZ is a high-performance operational amplifier combining a BiMOS architecture with MOSFET input and bipolar output stages, delivering superior input impedance and ultra-low input bias currents. Featuring a gain bandwidth product of 3.7 MHz, the CA3140MZ supports precision amplification suitable for industrial, laboratory, and electronic design applications.
Housed in a compact 8-pin SOIC surface-mount package measuring 5 mm by 4 mm by 1.5 mm, this device fits into dense PCB layouts efficiently. It operates over a broad supply voltage range of 5V up to 36V, accommodating diverse circuit requirements.
The unit exhibits a rapid slew rate of 7 V/μs which allows for fast transient response, critical in high-speed signal processing. Its temperature tolerance spans from -55°C to 125°C, ensuring stable operation under varied environmental conditions.
The input offset voltage is typically 5 mV, and input offset current is extremely low at 20 pA, enhancing signal accuracy in sensitive applications. Output current capability reaches up to 10 mA, supporting a variety of load demands.
Although this device does not carry automotive certifications, it remains ideal for use in electronic circuits where high input impedance and low noise are required. This operational amplifier finds applications in industrial instrumentation, laboratory measurement equipment, and general electronic designs.
Features a BiMOS input stage for high input impedance and low input current. Wide supply voltage range from 5V to 36V supports versatile usage. Compact SOIC surface-mount package suitable for space-constrained designs. High slew rate of 7 V/μs ensures excellent transient performance.
Operates reliably in temperatures from -55°C to 125°C. Low input offset voltage and current enhance measurement precision. Output current capacity up to 10 mA enables driving various loads. Designed for industrial, laboratory, and electronic circuit applications.
Explore a wide selection of Operational Amplifiers and other semiconductor components at EnvMart for your advanced electronics engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 3.7 MHz, making it suitable for precision amplification tasks.
The maximum supply voltage for the CA3140MZ is 36V, allowing it to accommodate various circuit requirements.
This operational amplifier operates reliably across a temperature range of -55°C to 125°C, ensuring stable performance in diverse environments.
The output current capability of this model reaches up to 10 mA, enabling it to drive various loads effectively.
It is housed in an 8-pin SOIC surface-mount package, which measures 5 mm by 4 mm by 1.5 mm, suitable for space-constrained designs.
The input offset voltage is typically around 5 mV, which enhances precision in signal processing applications.
The slew rate of this operational amplifier is 7 V/μs, allowing for fast transient response in high-speed signal processing.
The input bias current for the CA3140MZ is specified at 50 pA, contributing to its low noise performance.
This operational amplifier has a single channel configuration, making it suitable for various applications requiring amplification.
The minimum supply voltage for the CA3140MZ is 5V, providing flexibility for different circuit designs.
This operational amplifier is designed for use in industrial instrumentation, laboratory measurement equipment, and general electronic circuit applications.
The input offset current is very low at 20 pA, which enhances the accuracy of measurements in sensitive applications.
