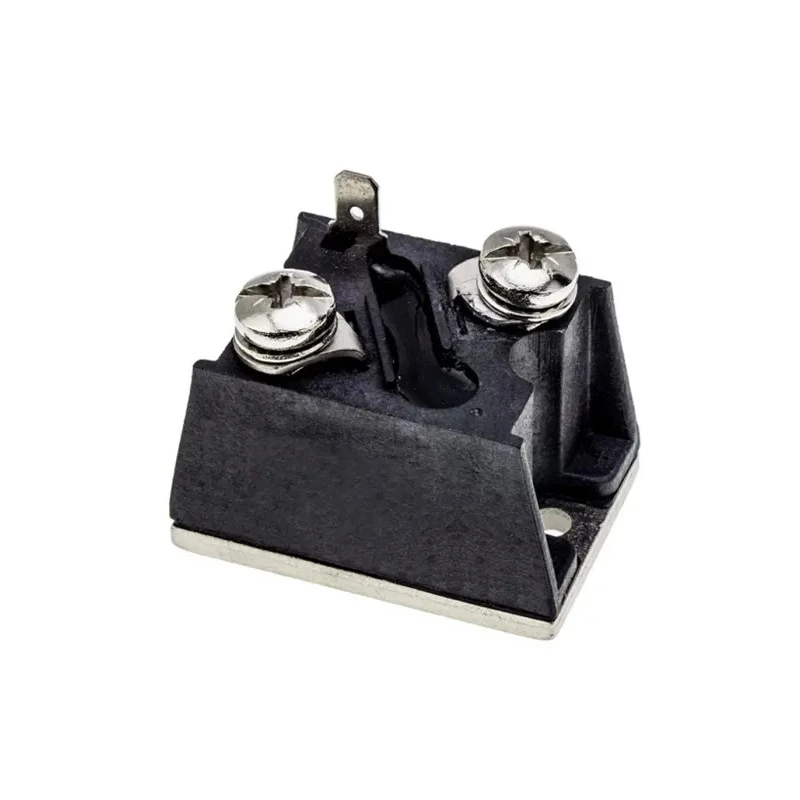

Vishay Thyristor SCR Panel Mount 600 V 90 A 120 mA 1.87 kA Surge Current Repetitive Peak Reverse Voltage 600 V T90RIA60

Vishay T90RIA60 thyristor is a high-performance SCR power semiconductor device rated for 600 V repetitive peak reverse voltage and 90 A rated average on-state current. It features a robust panel mount design (package D-55) with a 3-pin configuration allowing secure and efficient connectivity for industrial applications.

This SCR features a maximum gate trigger current of 120 mA and a surge current rating of 1.87 kA, demonstrating high tolerance to transient loads and reliable triggering under various operating conditions. The maximum gate trigger voltage is 2.5 V, while the maximum holding current is 200 mA, providing precise control over conduction and switch operation.

Designed to operate within a wide temperature range from -40°C to 125°C, the device ensures durability and stability in demanding environments. Its encapsulated module with an electrically isolated base plate supports safety and thermal management. The peak on-state voltage drop of 1.55 V optimizes efficiency by minimizing conduction losses.

These phase control thyristors are well suited for industrial and automotive applications including battery chargers, welders, plating equipment, regulated power supplies, and temperature or speed control circuits. The product is manufactured in India, is UL E78996 approved, and complies with standard industry specifications without any automotive standards.

Rated average on-state current: 90 A. Surge current capability: 1.87 kA. Repetitive peak reverse voltage: 600 V. Operating temperature range: -40°C to 125°C. Thyristor type: SCR (Silicon Controlled Rectifier). Package type: D-55, panel mount.

Pin count: 3. Maximum gate trigger voltage: 2.5 V. Maximum gate trigger current: 120 mA. Maximum holding current: 200 mA. Explore EnvMart's comprehensive category of semiconductors and Thyristors for more industrial-grade components from Vishay and other leading manufacturers.
