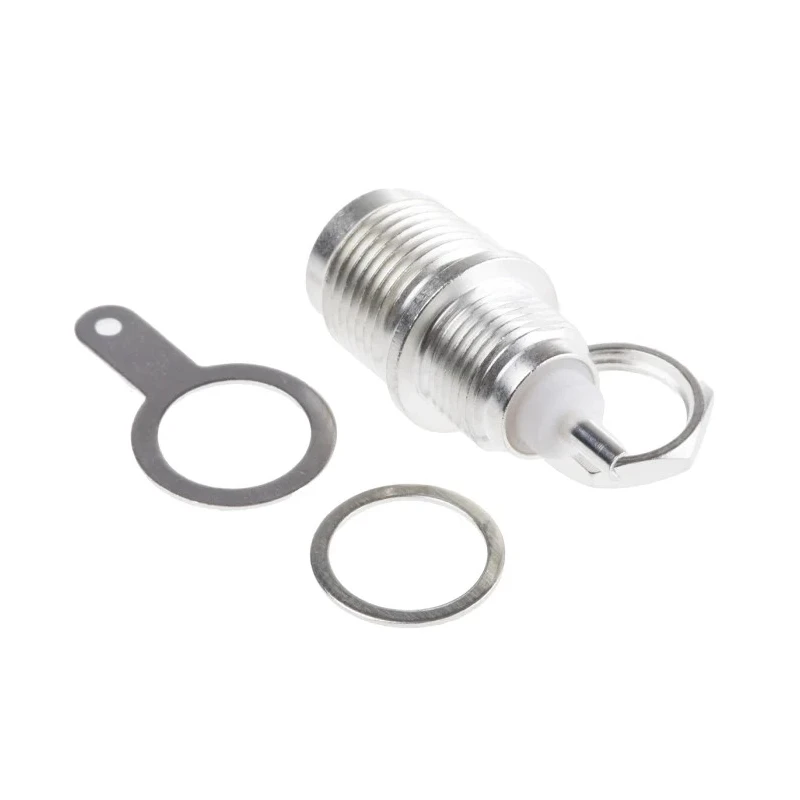

TE Connectivity TNC Series Coaxial Connector Panel Mount Female 50 Ω Straight Body Solder 1-1337469-0
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 11GHz |
| Contact Material | Brass |
| Series | TNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Silver |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | TNC |
| Body Plating | Silver |
Key Features
- This TNC series connector features a panel mount design suitable for bulkhead applications.
- Constructed with brass contacts and silver plating for exceptional conductivity and corrosion resistance.
- Operates efficiently with an impedance of 50 ohms and supports frequencies up to 11 GHz.
- Designed with a solder termination type and straight orientation for precise cable connection.
- Capable of operating in extreme temperature ranges from -65°C to 165°C.
- This connector series supports standard size dimensions and includes a PTFE dielectric for performance stability.
- Female connector gender provides compatibility with male counterparts in coaxial cable assemblies.
Product Description
TE Connectivity 1-1337469-0 Panel Mount Female TNC Series Coaxial Connector offers professional-grade performance with a 50 Ω impedance and straight body solder termination designed for precision electrical and RF applications.
This coaxial connector is made from high-quality brass with silver plating on contacts and body, ensuring excellent electrical conductivity and resistance to corrosion over prolonged usage.
Featuring a panel mount design with bulkhead capability, it utilizes an 8.7 x 9.6 mm panel cut-out for secure installation in various industrial and electronic equipment.
The connector operates reliably over a wide temperature range from -65°C to 165°C, suitable for demanding industrial, telecommunications, and laboratory environments requiring high-frequency signal integrity up to 11 GHz.
This product employs a PTFE dielectric for consistent electrical performance and a solder-type termination to connect coaxial cables securely. The standard size and normal polarity configuration simplify integration into existing systems.
This TNC series connector supports panel mount bulkhead applications. Brass contact material with silver plating assures durability and performance. Wide operating temperature from -65°C to 165°C allows for versatile use.
Supports frequencies up to 11 GHz, ideal for RF communications. Straight orientation and solder termination facilitate easy installation and reliable connections. Silver-plated body enhances corrosion resistance and signal integrity.
Female connector gender ensures compatibility with male connectors.
Ideal for use in industrial electronics, telecommunications, laboratory setups, and other environments requiring dependable coaxial connections with stable electrical characteristics.
Explore more high-quality Coaxial Connectors and related components in the Electronics Components category at EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has an impedance of 50 ohms, making it suitable for various RF applications.
It supports operating frequencies up to 11 GHz, which is ideal for high-frequency signal applications.
The connector operates efficiently in a temperature range from -65°C to 165°C, allowing for use in extreme environments.
It features a solder termination type, designed for secure connections with coaxial cables.
This model is designed for panel mount applications, suitable for bulkhead installations.
The connector is constructed with brass contacts and features silver plating for enhanced conductivity and corrosion resistance.
It has a straight body orientation, facilitating straightforward installation and connection.
It employs a PTFE dielectric, which contributes to stable electrical performance.
This connector is a female type, allowing compatibility with male counterparts in coaxial cable assemblies.
The connector requires an 8.7 x 9.6 mm panel cut-out for secure installation.
The connector is manufactured in India.
It is suitable for use in industrial electronics, telecommunications, and laboratory environments requiring reliable coaxial connections.
