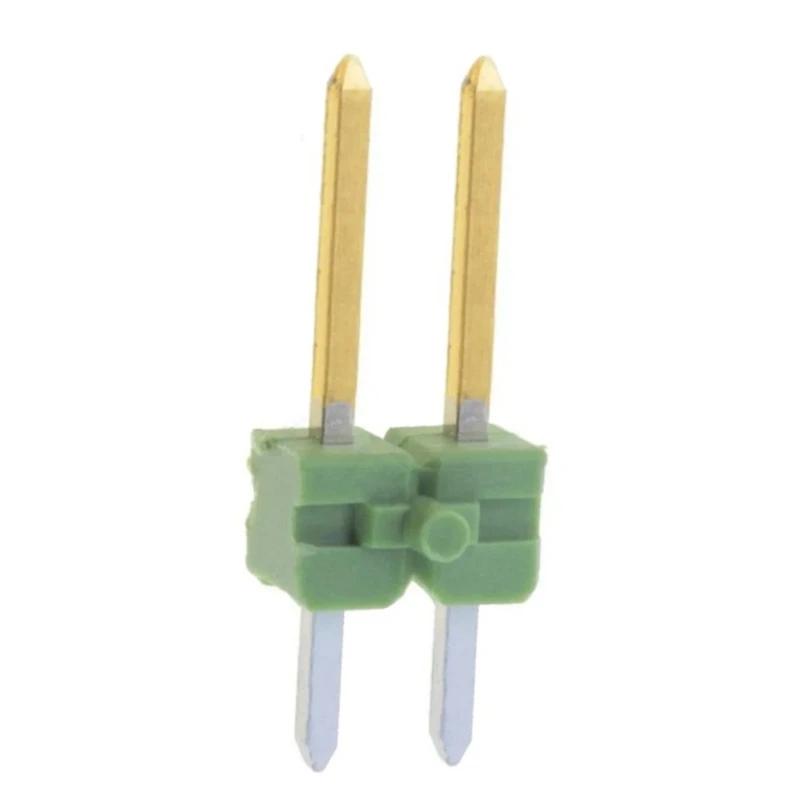

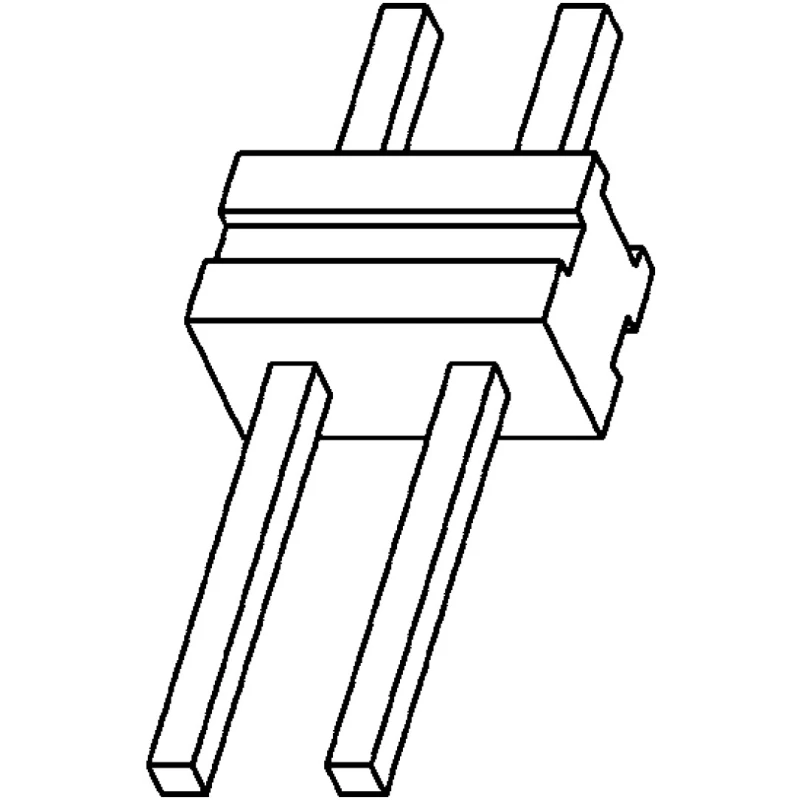

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 2 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 825433-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 825433-2 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- This pin header features a straight orientation with through-hole mounting for robust PCB connections.
- Constructed with brass contacts plated in gold ensuring reliable electrical performance.
- The housing is made from Polybutylene Terephthalate, providing durability and insulating properties.
- It supports a maximum operating voltage of 750 V and a current rating of 3 A.
- The operating temperature range spans from -65°C to 105°C for versatile environmental applications.
- Tail pin length is 3.2 mm, and mating pin length is 6.7 mm to ensure secure connections.
- Designed for board-to-board and wire-to-board connector systems in industrial and telecommunications equipment.
- Unshrouded design allows for easy breakaway to size as required for custom applications.
Product Description
TE Connectivity 825433-2 AMPMODU MOD II Series Straight Through Hole Pin Header provides a 2 contact, 2.54 mm pitch, single row, unshrouded pin header solution designed for precise and reliable connections in various industrial and electronic applications.
Constructed with a brass contact material with gold plating, this pin header ensures excellent conductivity and corrosion resistance. The polybutylene terephthalate housing offers solid insulation and mechanical strength, suitable for demanding environments.
Operating parameters include a voltage rating of 750 V and current rating of 3 A, supporting industrial-grade electronics. Its temperature range, from -65°C up to 105°C, allows operation under harsh thermal conditions.
The pin header is designed for through-hole mounting on printed circuit boards, providing secure mechanical and electrical connections for board-to-board and wire-to-board configurations. The unshrouded, breakaway style allows customization of size to fit specific design requirements, saving installation time and cost.
Applications for the AMPMODU MOD II pin header include automotive controls, industrial automation, test equipment, computing hardware, telecommunications, medical instruments, and storage devices.
Straight, single row, unshrouded design for flexible PCB configurations. Brass contacts with gold plating ensure durability and reliable electrical contact. Robust polybutylene terephthalate housing for insulation and physical stability.
Voltage rating of 750 V and current up to 3 A supports diverse electronic applications. Wide operating temperature range from -65°C to 105°C enables use in harsh environments. Through-hole mounting facilitates strong mechanical bond to PCB.
Suitable for board-to-board and wire-to-board connections in industrial systems. Breakaway feature allows precise length customization, reducing waste and assembly time. Explore TE Connectivity products for reliable and economical electronic connector solutions at EnvMart.
Explore more products in our PCB Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header has a maximum operating voltage rating of 750 V.
This model supports a current rating of 3 A.
It features a pitch size of 2.54 mm.
The contacts are made from brass with gold plating, and the housing is constructed from polybutylene terephthalate.
The operating temperature range spans from -65°C to 105°C.
This pin header has 2 contacts.
It is designed for through-hole mounting on printed circuit boards.
The tail pin length is 3.2 mm.
It supports board-to-board and wire-to-board connector systems.
The pin header features a straight orientation.
This model is unshrouded, allowing for easy breakaway to size as needed.
The country of origin for this pin header is India.
