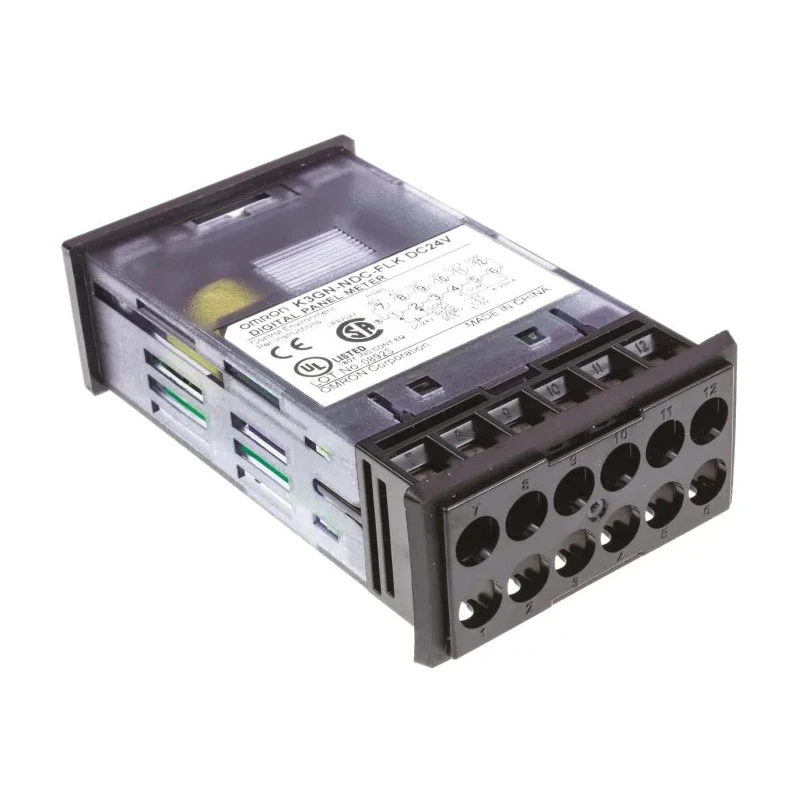

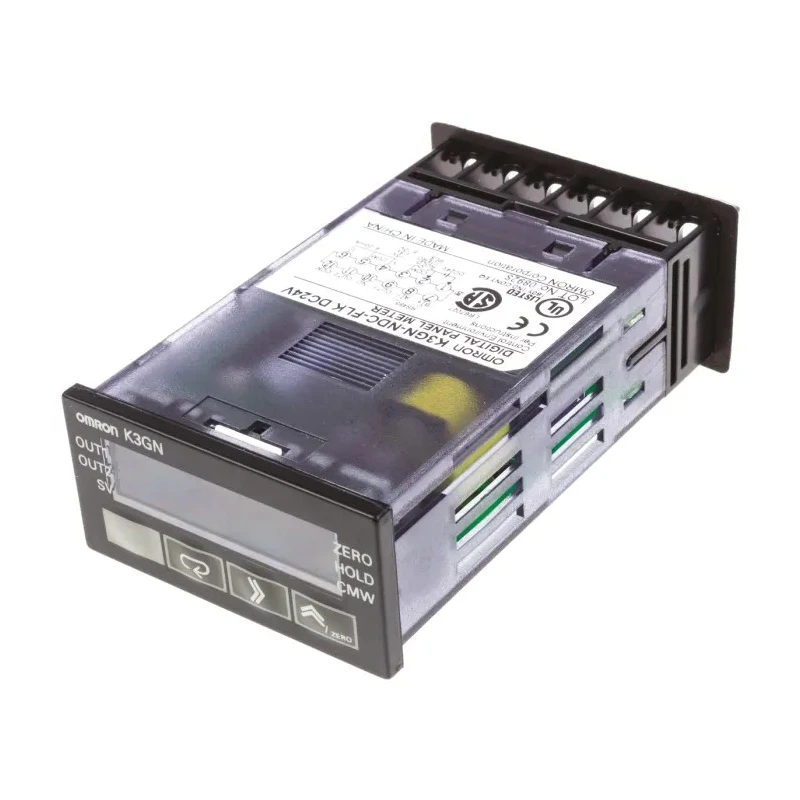

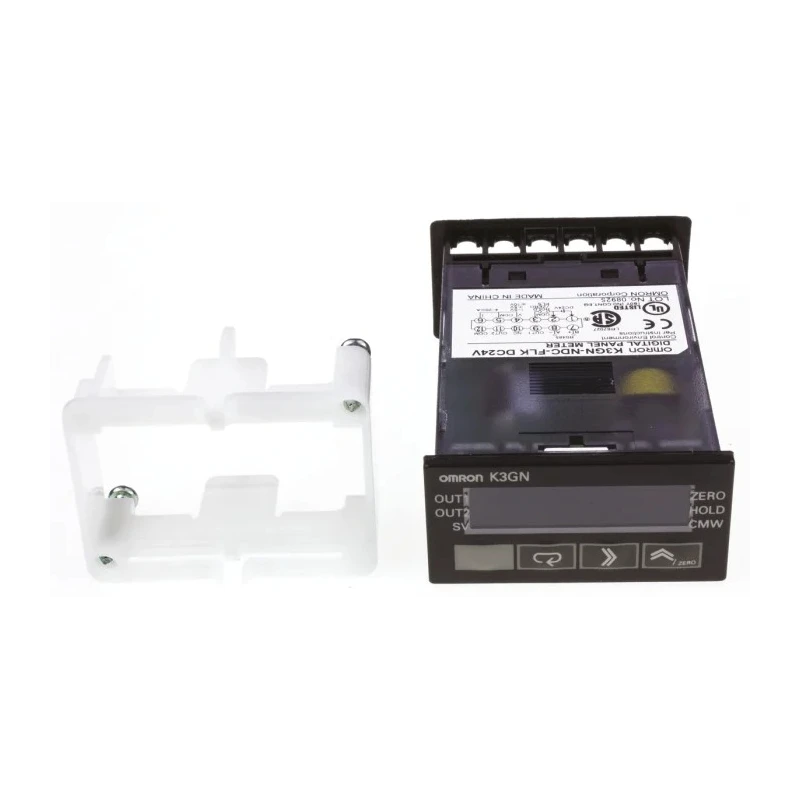

Omron LCD Digital Panel Multifunction Meter for Voltage, Current, 22 mm x 44.8 mm K3GN
Specifications
| Country of Origin | India |
|---|---|
| Display Type | LCD |
| Brand | Omron |
| Model | K3GN |
| Depth | 80mm |
| Series | K3GN |
| Maximum Operating Temperature | 55°C |
| Meter Type | Digital |
| Number Of Digits | 5 |
| Minimum Operating Temperature | -10°C |
| Digit height | 7mm |
| Supply Voltage | 24V d.c |
| Properties Measured | Voltage, Current |
| Cutout Height | 22mm |
| Cutout Width | 44.8mm |
| Panel cut-out | 45 x 22.2mm |
| Configurable analogue inputs | 4-20mA, 0-20mA, 1-5V d.c., -5 to +5V d.c. and -10 to +10V d.c., all fully scaleable so can be configured to represent a wide range of engineering inputs |
Key Features
- Features a backlit 7mm high LCD display for clear readability.
- Supports configurable analogue inputs including 4-20mA, 0-20mA, 1-5V DC, and bipolar voltage inputs.
- Operates at 24V DC supply voltage ensuring stable performance.
- Panel cut-out dimensions are 45 x 22.2 mm for easy installation.
- Front panel is protected to NEMA 4 (IP66) standards for durability.
- Displays from -19999 to 99999 with high accuracy of ±0.1% full scale.
- Suitable for sensors, encoders, and pulse inputs across wide frequency ranges.
- Operating temperature range from -10°C to 55°C ensures reliable use in varied environments.
Product Description
Omron K3GN Digital Panel Multifunction Meter provides precise monitoring of voltage and current values with an easy-to-read backlit LCD display of 5 digits and 7 mm digit height. This multifunction meter supports a variety of analogue inputs such as 4-20mA, 0-20mA, 1-5V DC, and bipolar voltage ranges from -10V to +10V, all fully scalable to represent a wide array of engineering parameters.
The meter operates on a stable 24V DC power supply and is designed with non-voltage and open collector inputs suitable for sensors, encoders, and pulse inputs with frequency ranges from 0.05 to 30 Hz and 0.1 to 5000 Hz, offering flexibility for process control and automation applications.
The front panel protection complies with NEMA 4 (IP66) standards, ensuring resistance to dust and water ingress, making it suitable for industrial environments. Its display automatically changes color based on programmable output activation states, assisting operators in status monitoring.
The compact panel cut-out of 45 x 22.2 mm and product dimensions of approximately 24 mm height, 48 mm width, and 80 mm depth provide a space-efficient solution for control panels. The meter is CE marked and complies with European noise and emission regulations, making it ideal for use in various industrial sectors such as manufacturing, electrical automation, and HVAC systems.
Backlit 7 mm high 5-digit LCD display enhances readability in different lighting conditions. Configurable analogue inputs allow versatile signal measurement. 24V DC supply voltage ensures compatibility with standard industrial power systems.
IP66 panel front provides robust environmental protection. Programmable color display alerts improve operational safety. Compact dimensions enable easy panel integration. Wide operating temperature range supports diverse industrial settings.
This Omron multifunction meter is a reliable instrument for precise measurement of electrical parameters in industrial automation, process control, laboratory, and commercial applications. For more advanced industrial electrical measurement solutions, explore our wide range of digital panel meters and automation systems at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a backlit LCD display with a digit height of 7 mm and can show 5 digits for clear readability.
This model supports 4-20mA, 0-20mA, 1-5V DC, and bipolar voltage inputs ranging from -10V to +10V, all fully scalable for various engineering inputs.
It operates on a stable 24V DC power supply, ensuring compatibility with standard industrial power systems.
The operating temperature range is from -10°C to 55°C, making it suitable for varied industrial environments.
The panel cut-out dimensions are 45 mm in width and 22.2 mm in height, allowing for easy installation in control panels.
The front panel is protected to NEMA 4 (IP66) standards, providing resistance to dust and water ingress.
It can measure voltage and current, making it versatile for various applications in industrial automation and process control.
It has a high accuracy of ±0.1% full scale, ensuring precise monitoring of electrical parameters.
The approximate dimensions are 80 mm in depth, 48 mm in width, and 24 mm in height, providing a compact solution for installations.
It is suitable for use in manufacturing, electrical automation, HVAC systems, and various industrial sectors.
It supports pulse inputs with frequency ranges from 0.05 to 5000 Hz, allowing for flexibility in process control.
Yes, it is CE marked and complies with European noise and emission regulations, suitable for industrial use.
