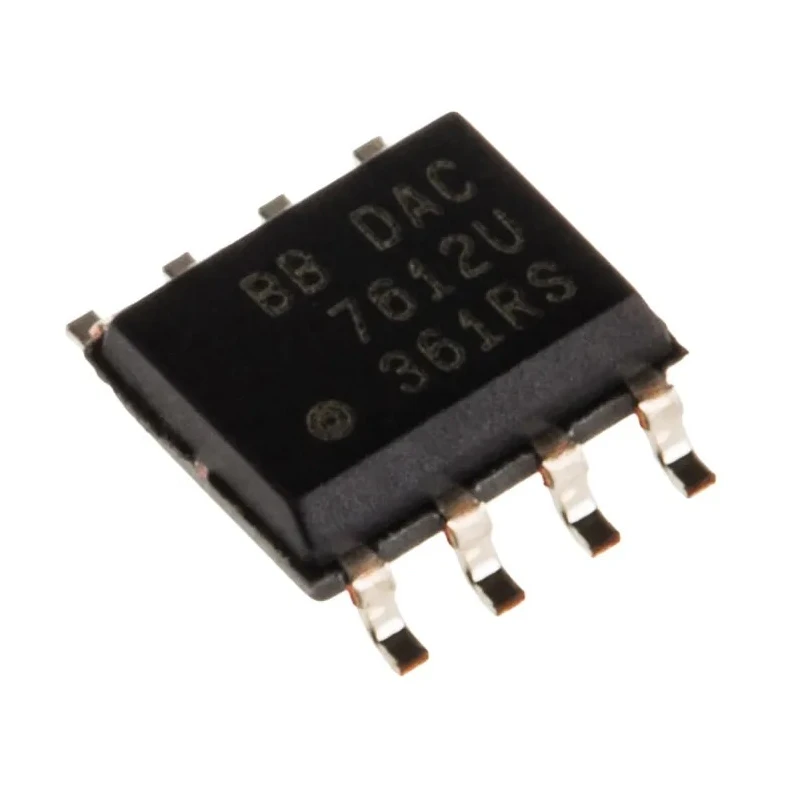

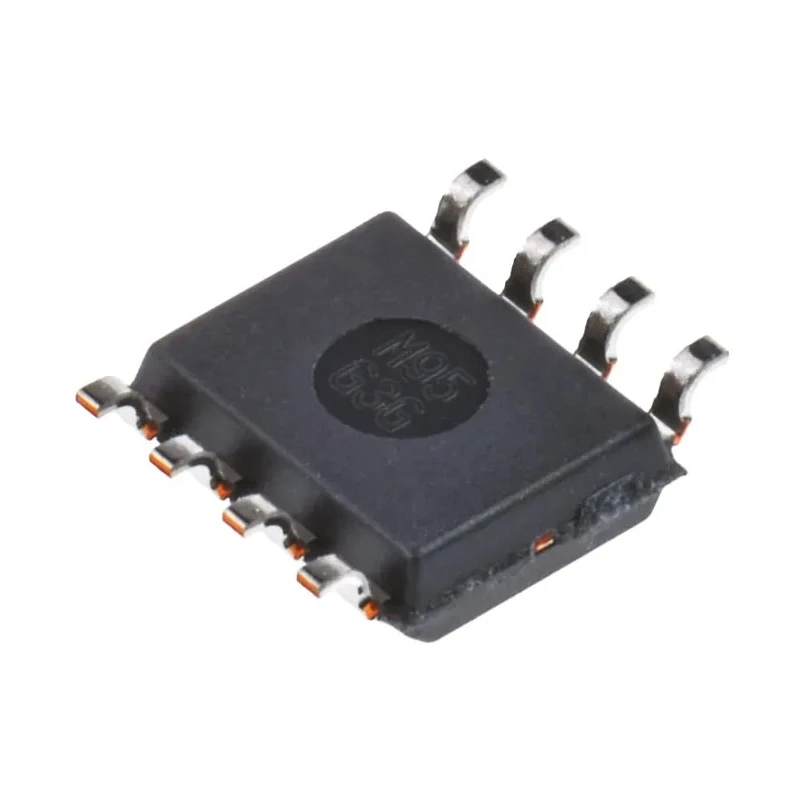

Texas Instruments Digital to Analogue Converter 12 bit 2-Channel SPI Interface 130ksps 8-Pin SOIC DAC7612U

Texas Instruments DAC7612U is a 12-bit Digital to Analogue Converter designed for industrial and electronic applications requiring precise analog output with dual channels. Featuring a resistor string (R-2R) architecture, this DAC offers reliable and consistent conversion performance across a sampling rate of 130 ksps.

The device is equipped with a Serial Peripheral Interface (SPI) for efficient digital communication, housed in a compact 8-Pin Small Outline Integrated Circuit (SOIC) surface mount package facilitating space-saving PCB layouts.

With a maximum supply voltage of 5 V and an operating temperature range from -40°C to 85°C, it is suitable for harsh and varied environmental conditions. The internal voltage reference reduces the need for external components, simplifying system design.

Its fast settling time of 7 microseconds supports applications demanding quick response times. Ideal for use in industrial control systems, instrumentation, and electronic equipment requiring dual-channel analog signal generation with high resolution and accuracy.

12-bit resolution ensures precise analog output conversion. Two channels provide dual output capability for versatile applications. SPI interface supports efficient serial communication. Sampling rate of 130 ksps enables fast signal processing.

Compact 8-Pin SOIC surface mount package for easy PCB integration. Operating temperature range from -40°C to 85°C ensures reliability in diverse environments. Internal voltage reference simplifies design requirements. Resistor string (R-2R) architecture for accurate DAC performance.

Settling time of 7 μs supports high-speed applications. RoHS and REACH compliant for environmental safety. Explore the Texas Instruments range of DAC products at EnvMart for high-quality and precision digital to analog conversion components.
