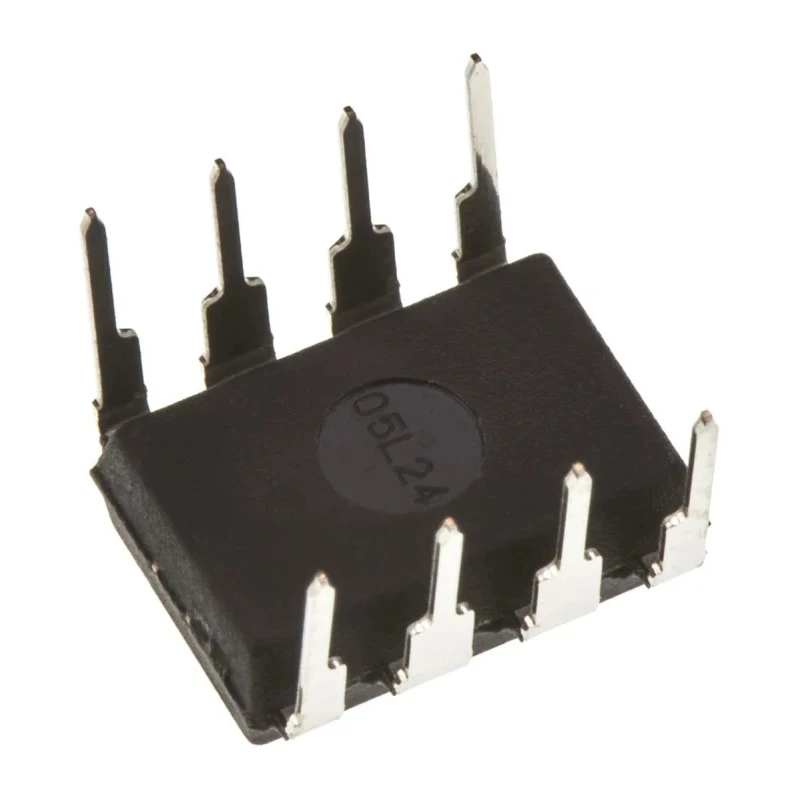

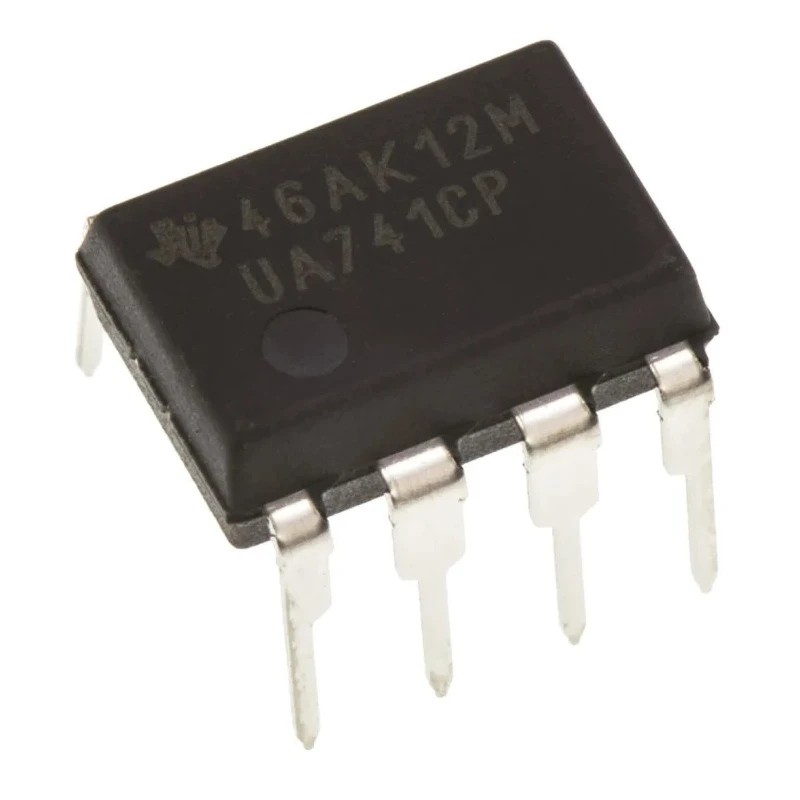

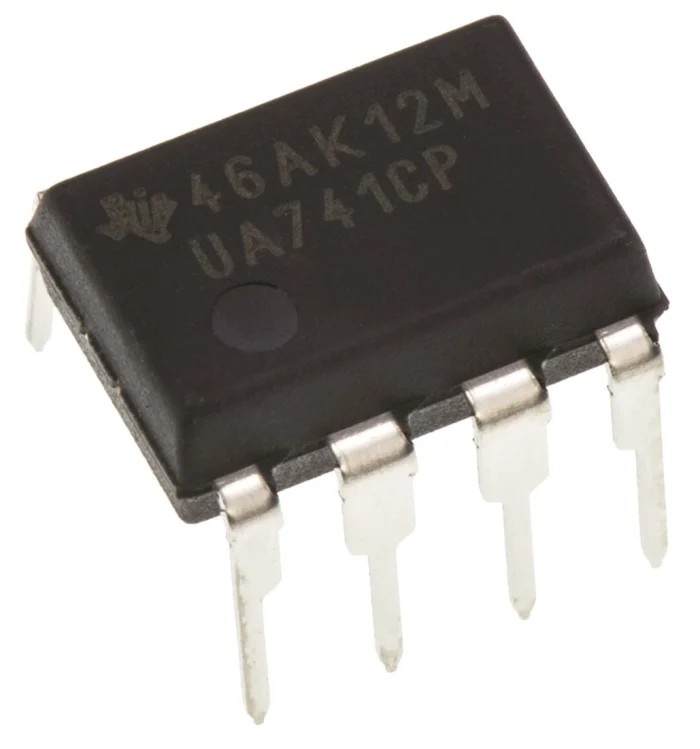

Texas Instruments Operational Amplifier, Through Hole PDIP Package, 1 Channel, 8-Pin, 1 MHz Gain Bandwidth, 5-15V UA741CP
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | UA741CP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | UA741 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 500 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 200 nA |
Key Features
- Operates with supply voltage range from 5V to 15V, suitable for versatile applications.
- Contains a single channel with 8 pins arranged in a PDIP package type.
- Features a low input offset voltage of 5 mV and input bias current of 500 nA ensuring precision in analog circuits.
- Capable of operating from 0°C to 70°C for stable performance across temperature variations.
- Compact physical dimensions measuring 9.81 mm length, 6.35 mm width, and 4.57 mm height.
- Includes a slew rate of 0.5 V/μs for effective signal processing speed.
- Designed without automotive standard compliance; made in Mexico.
Product Description
Texas Instruments model UA741CP is a general-purpose operational amplifier, designed for analog electronics requiring signal amplification up to 1 MHz gain bandwidth. It features a through-hole mount PDIP package with 8 pins, making it compatible with standard PCB mounting techniques.
This operational amplifier supports a supply voltage range of 5V minimum to 15V maximum, suitable for a wide array of industrial and laboratory applications including signal conditioning, filtering, and analog computation.
The device has a low input offset voltage of 5 mV and input bias current of 500 nA, delivering stable and precise analog signal handling. Its slew rate of 0.5 V/μs ensures responsive signal transitions suitable for medium frequency applications.
Its temperature operating range is from 0°C to 70°C, allowing use in various environments without degradation of performance. The UA741CP physical size is compact with dimensions of approximately 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, conserving PCB space.
As a product of Texas Instruments, this operational amplifier is manufactured in Mexico, ensuring quality and reliability. It comes without specific standards or automotive applications approvals and targets general purpose semiconductor amplification tasks.
Operates between 5V and 15V supply voltage range. Single channel with 8 pins in through-hole PDIP package. Low input offset voltage of 5 mV enhances accuracy. Input bias current of 500 nA for consistent performance. Slew rate of 0.5 V/μs provides rapid signal response.
Compact size suitable for various PCB designs. Operational temperature range 0°C to 70°C for diverse applications.
This operational amplifier is widely used in industrial electronics, laboratory instrumentation, audio equipment, and educational electronics projects. Explore similar Operational Amplifiers and semiconductor components on EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This operational amplifier operates within a supply voltage range of 5V to 15V.
The UA741CP has compact dimensions of 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
It features a gain bandwidth product of 1 MHz, suitable for various analog applications.
The input offset voltage is 5 mV, which enhances the accuracy of signal amplification.
The slew rate of this model is 0.5 V/μs, allowing for effective signal processing speed.
It can operate within a temperature range of 0°C to 70°C, ensuring stable performance across various environments.
This operational amplifier contains a single channel.
It comes in a PDIP package type, designed for through-hole mounting.
The input bias current is 500 nA, contributing to consistent performance in analog circuits.
This operational amplifier is designed without automotive standard compliance.
It is manufactured in Mexico, ensuring quality and reliability in production.
It is suitable for a wide array of applications including signal conditioning, filtering, and analog computation.
