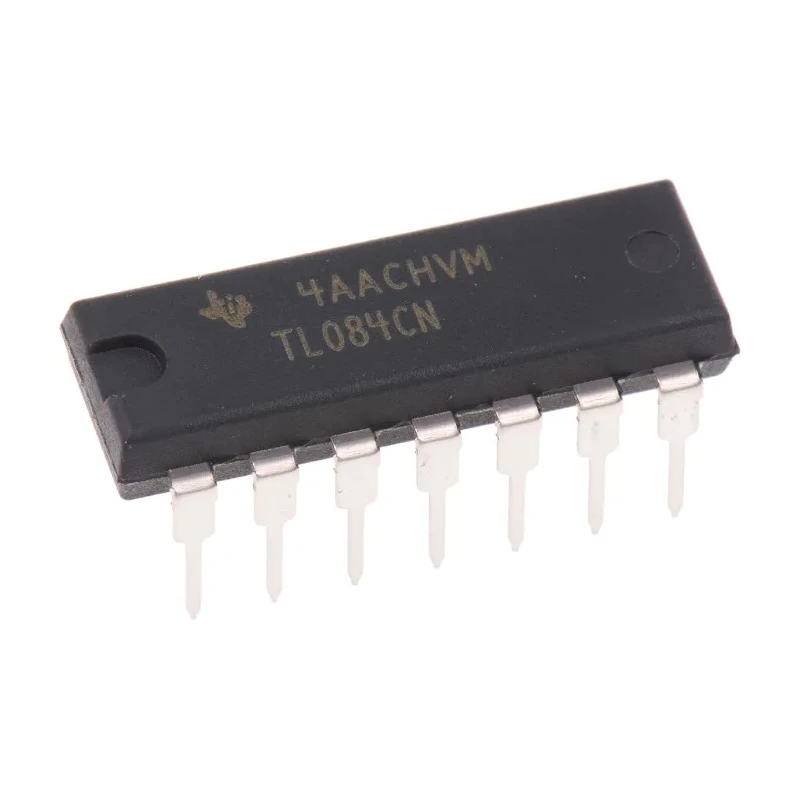

Texas Instruments Operational Amplifier 3 MHz Gain Bandwidth, 14-Pin PDIP TL084CN
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TL084CN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL084 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 10 nA |
| Vos - Input Offset Voltage | 20 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 2 nA |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
| TL084CN Texas Instruments, Op Amp, 3MHz, 14-Pin PDIPBrand | Texas Instruments |
Key Features
- High-performance JFET input operational amplifier with bipolar output.
- Low input bias current of 10 nA minimizes circuit loading.
- High slew rate of 13 V/μs for fast signal processing.
- Low total harmonic distortion of 0.003% ensures signal accuracy.
- Quad channel device with 4 operational amplifiers per package.
- Compact 14-pin PDIP package with dimensions 19.3mm x 6.35mm x 4.57mm.
- Operating temperature range from 0°C to 70°C suitable for various environments.
- Input offset voltage typically 20 mV for precision applications.
Product Description
Texas Instruments TL084CN Operational Amplifier is a quad JFET input device from the TL070 and TL080 family, designed for advanced analog signal processing applications. The quadruple op amp in a 14-pin PDIP package provides a high gain bandwidth product of 3 MHz, making it ideal for audio, instrumentation, and control systems.
This device supports a wide supply voltage range from ±5 V to ±15 V, accommodating diverse circuit requirements. Its low input bias current of 10 nA and input offset current of 2 nA reduce signal distortion and loading effect on sensor circuits. The high slew rate of 13 V/μs and low total harmonic distortion of 0.003% provide exceptional performance for precision analog designs.
The TL084CN is housed in a compact 14-pin PDIP package measuring 19.3 mm in length, 6.35 mm width, and 4.57 mm height, facilitating easy through-hole mounting. It operates reliably within a temperature range of 0°C to 70°C and is compliant with the automotive AEC-Q100 standard, ensuring robustness in automotive and industrial applications.
This operational amplifier is well-suited for industrial, laboratory, audio processing, control systems, and embedded electronics applications requiring low noise, high speed, and precision analog signal amplification. Offset adjustment and external compensation options complement its versatility.
High-performance JFET input operational amplifier with bipolar output. Wide supply voltage range: ±5 to ±15 V for flexible circuit integration. Low input bias current of 10 nA minimizes circuit loading. High slew rate of 13 V/μs for fast signal processing.
Low total harmonic distortion of 0.003% ensures signal accuracy. Quad channel device with 4 operational amplifiers per package. Compact 14-pin PDIP package with dimensions 19.3mm x 6.35mm x 4.57mm. Operating temperature range from 0°C to 70°C suitable for various environments.
Input offset voltage typically 20 mV for precision applications. Manufactured in Malaysia under AEC-Q100 automotive standard compliance.
For users needing a reliable, high-performance Operational Amplifier in audio, instrumentation, and industrial control, the Texas Instruments TL084CN offers a blend of speed, precision, and easy mounting.
Explore more electronics components and amplifiers at EnvMart for your next project or replacement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL084CN has a gain bandwidth product of 3 MHz, making it suitable for various analog signal processing applications.
This model operates within a temperature range of 0°C to 70°C, which is suitable for various environments.
The TL084CN is a quad channel device, containing four operational amplifiers per package.
The input bias current for the TL084CN is 10 nA, which helps minimize circuit loading.
The dimensions of the TL084CN package are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
The maximum supply voltage for this operational amplifier is ±15 V, providing flexibility for circuit integration.
The slew rate of the TL084CN is 13 V/μs, allowing for fast signal processing.
The TL084CN has a low total harmonic distortion of 0.003%, ensuring accurate signal amplification.
This model supports through-hole mounting, making it easy to integrate into various circuit designs.
The input offset voltage for this operational amplifier is typically 20 mV, which is important for precision applications.
Yes, the TL084CN is compliant with the automotive AEC-Q100 standard, ensuring its robustness for automotive applications.
The input offset current for this operational amplifier is 2 nA, which contributes to its low noise performance.
