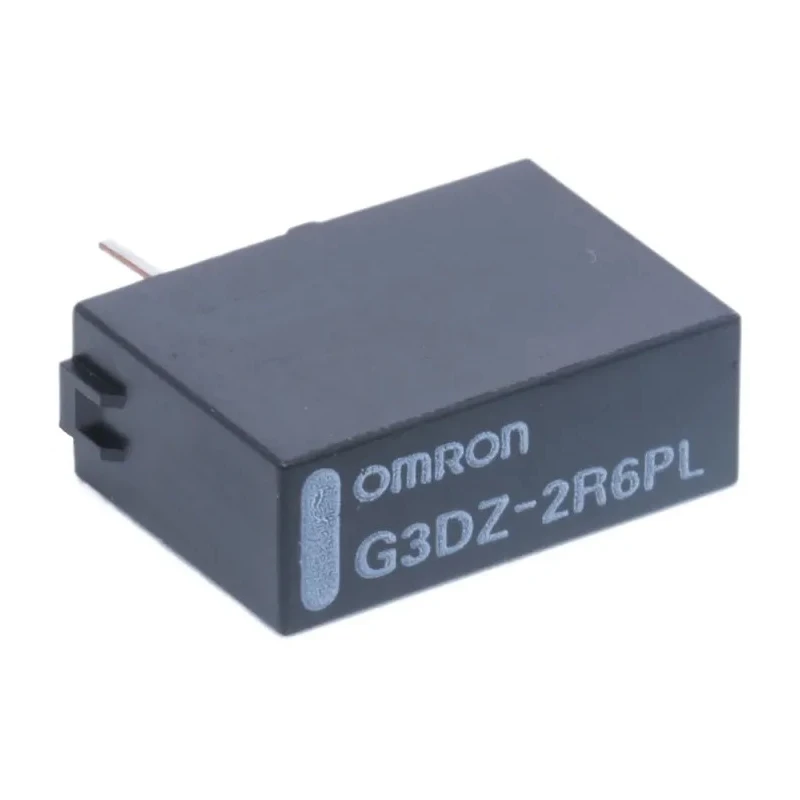

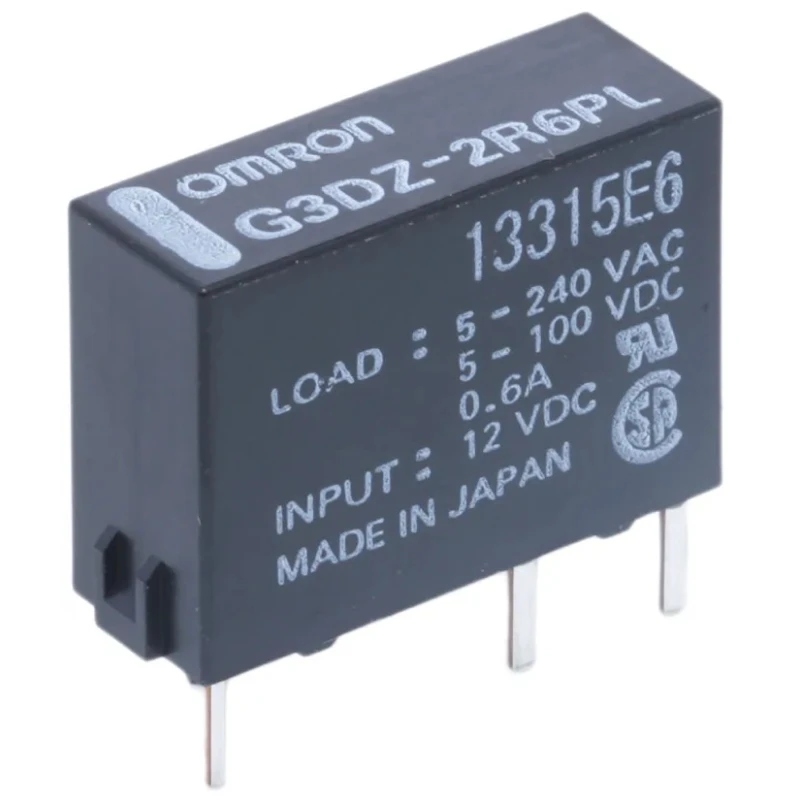

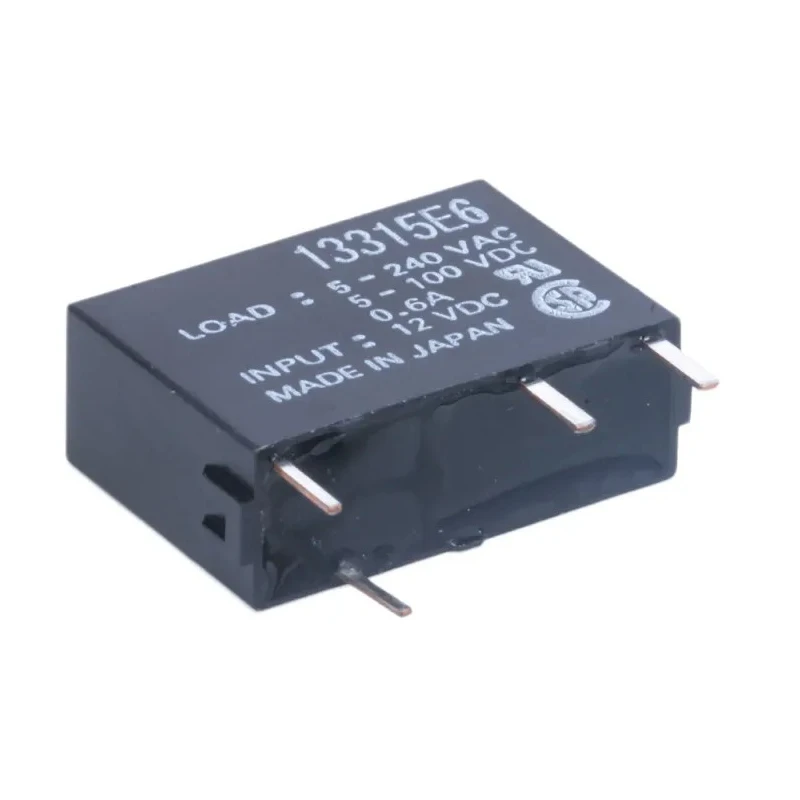

Omron Solid State Relay PCB Mount, 0.6 A Load, 264 V AC Load, 12 V DC Control G3DZ

Omron G3DZ-2R6PL DC12 Solid State Relay is a high-performance PCB mount MOSFET relay engineered for controlling AC and DC loads up to 0.6 A. Its compact design matches the size of the Omron G6D series, providing seamless integration into existing circuits.

The relay supports switching currents of 0.6 A at 240 V AC or 100 V DC, and features an input resistor and overvoltage absorption circuit for stable performance in diverse electrical environments. With no zero-cross function, it enables reliable fast switching, suitable for specific industrial automation controls requiring immediate response.

Constructed with PCB terminals, this relay is designed for easy assembly on circuit boards and offers a low ON resistance of 2.4 Ω, minimizing power loss during operation. The device demonstrates outstanding leakage current performance with a maximum of 10 μA between open terminals, enhancing efficiency and reducing undesired current drain.

The G3DZ-2R6PL model operates within a wide temperature range of 30°C to 85°C and boasts high resistance to vibration and shock, making it suitable for rigorous industrial and manufacturing environments. Its photodiode output type ensures electrical isolation and prevents direct electrical connection between input and output circuits.

This relay complies with RoHS standards for eco-friendly manufacturing, is suitable for use in electrical, automation, and control gear applications where compact, reliable switching is required. Users should ensure correct socket matching and follow appropriate soldering practices to avoid damage during installation.

Supports 0.6 A maximum load current at 240 V AC or 100 V DC. Features PCB terminal mounting suitable for compact circuit integration. Includes MOSFET output with 2.4 Ω maximum ON state resistance. Operates without zero-cross switching enabling fast switching times.

Has an input control voltage range from 3 V minimum to 12 V DC maximum. Excellent durability with operating temperature range from 30°C to 85°C. Maximum off-state leakage current limited to 10 μA increases energy efficiency.

Robust design with vibration resistance and shock resistance ensuring reliability. Complies with RoHS requirements supporting environmental safety standards. Ideal for automation, electrical industrial devices, and signal conditioning applications.
