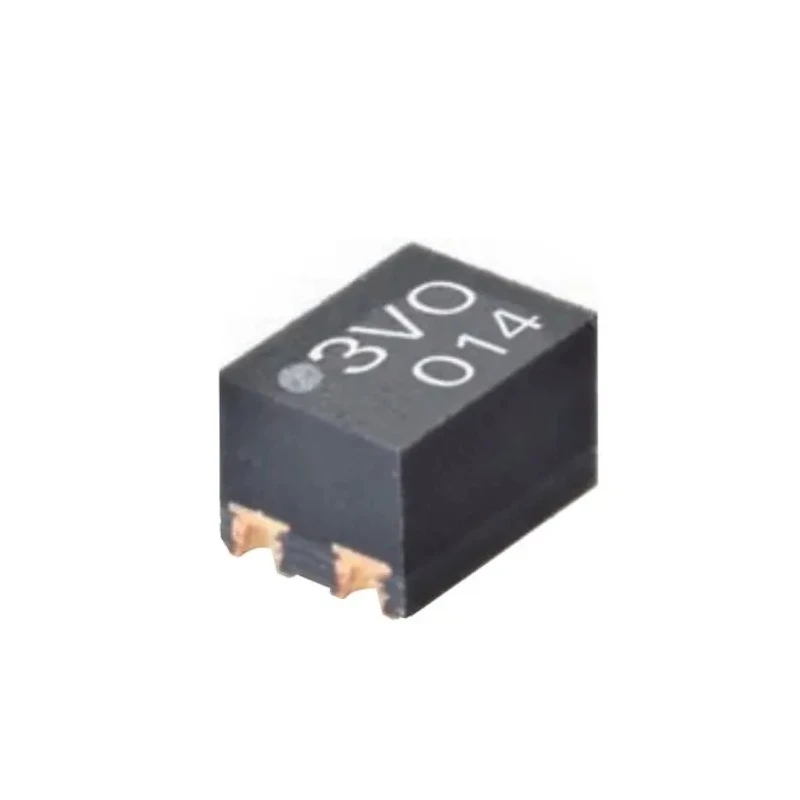

Omron Solid State Relay Surface Mount 1.5 A Load Current 30 V Load Voltage G3VM

Omron G3VM Solid State Relay is a highly reliable surface mount device designed for switching applications with a maximum load current of 1.5 A and maximum load voltage of 30 V. It comes as part of the G3VM series known for compact size and robust MOSFET output configuration.

The relay utilizes world-class S-VSON(L) package MOSFET technology with a current limiting resistor on the input side, providing excellent electrical isolation by converting voltage to light signals. This ensures outstanding 2,500 Vrms isolation between input and output.

Designed to operate in harsh environments, it tolerates temperatures from -40°C to 125°C. Its SPST contact configuration and support for both AC/DC switching make it a versatile solution for various control requirements. The device satisfies RoHS environmental standards.

Key electrical characteristics include an off-state leakage current of only 1μA and a capacitance of 120pF, delivering stable and efficient switching without mechanical noise typical of electromechanical relays. With no moving contacts, it avoids switching noise and distortion common in triac-based alternatives.

The ultra-small form factor and lightweight design reduce PCB space requirements while ensuring robust performance. Its low drive current and high-speed switching characteristics extend operational life, making it ideal for industrial automation, electrical control, and signal conditioning applications.

This product originates from Japan and is manufactured to stringent quality standards by Omron, a leading name in electronic components.

Omron solid state relays from the G3VM series provide advanced switching solutions in electronics and electrical systems where reliable, noiseless operation and compact design are paramount.

The relay features a MOSFET output type ensuring low switching noise. It supports SPST contact configuration for simple on/off control. The device operates reliably in temperatures ranging from -40°C to 125°C. With RoHS compliance, it meets key environmental standards.

The relay has an off-state leakage current of just 1μA, enhancing energy efficiency. Capacitance is rated at 120pF to enable stable electrical performance. High isolation level of 2,500 Vrms between input and output ensures safe operation.

Ultra small size and low weight allow for space-efficient PCB mounting. Its MOSFET design provides long operating life with low drive current. Suitable for industrial, electrical, and automation applications requiring compact solid state switching.
