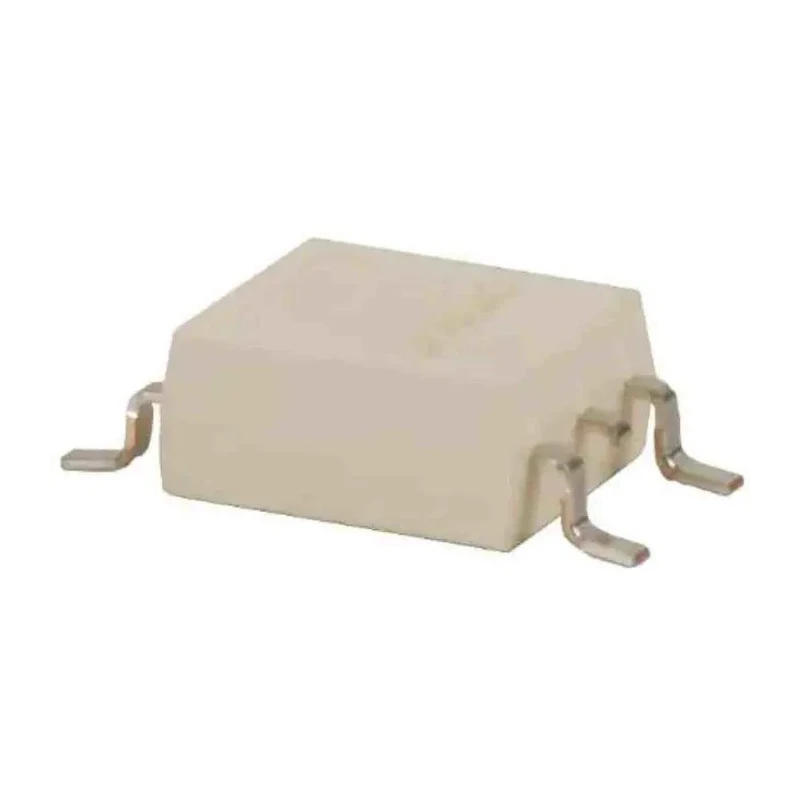

Omron Solid State Relay Surface Mount 1.7 A Load 60 V Load MOSFET Output G3VM

Omron G3VM-61GR2 Solid State Relay Surface Mount model provides reliable electronic switching with a maximum load current of 1.7 A and maximum load voltage of 60 V. This MOSFET output relay features low ON resistance, high switching capacity, and a small footprint suitable for communication equipment, test and measurement instruments, and security devices.

The relay supports an ambient operating temperature from -40 to 85°C, offering robust performance under varying environmental conditions. The high dielectric strength of 1500Vrms between input and output ensures safe insulation. This model's compact size of 9.7 mm length, 3.9 mm width, and 3.7 mm height allows easy integration onto surface mount PCBs.

Its capacitance of 0.8 pF reduces signal interference, enhancing overall circuit performance. The contact configuration is single-pole single-throw (SPST), designed for straightforward switching applications. The product is UL recognized, demonstrating compliance with safety and quality standards.

Features low ON resistance and high switching capacity suitable for communication and measurement equipment. Surface mount MOSFET output for efficient and compact electronic switching. Wide operating temperature range from -40°C to 85°C.

1500Vrms dielectric strength between input and output for enhanced safety. Compact dimensions of 9.7 mm x 3.9 mm x 3.7 mm facilitate PCB integration. Low capacitance of 0.8 pF reduces signal interference. SPST contact configuration for standard switching requirements.

UL recognized standard compliance ensures reliability.

This Omron Solid State Relay is ideal for industrial, laboratory, communication, security, and manufacturing applications requiring reliable low current load switching. Explore a wide range of Solid State Relays and related electronics components on EnvMart for enhanced automation and control solutions.
