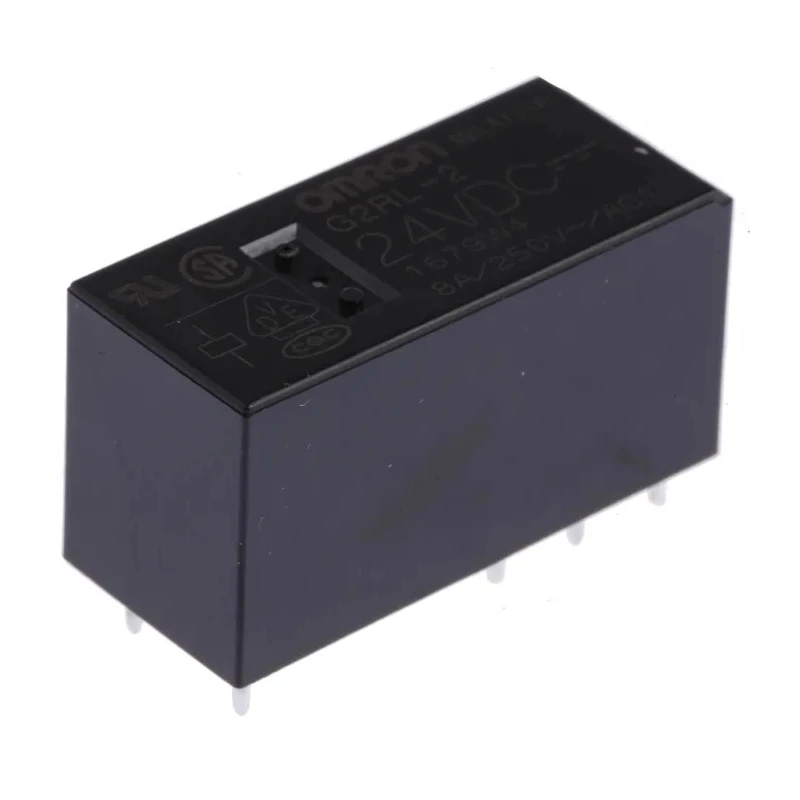

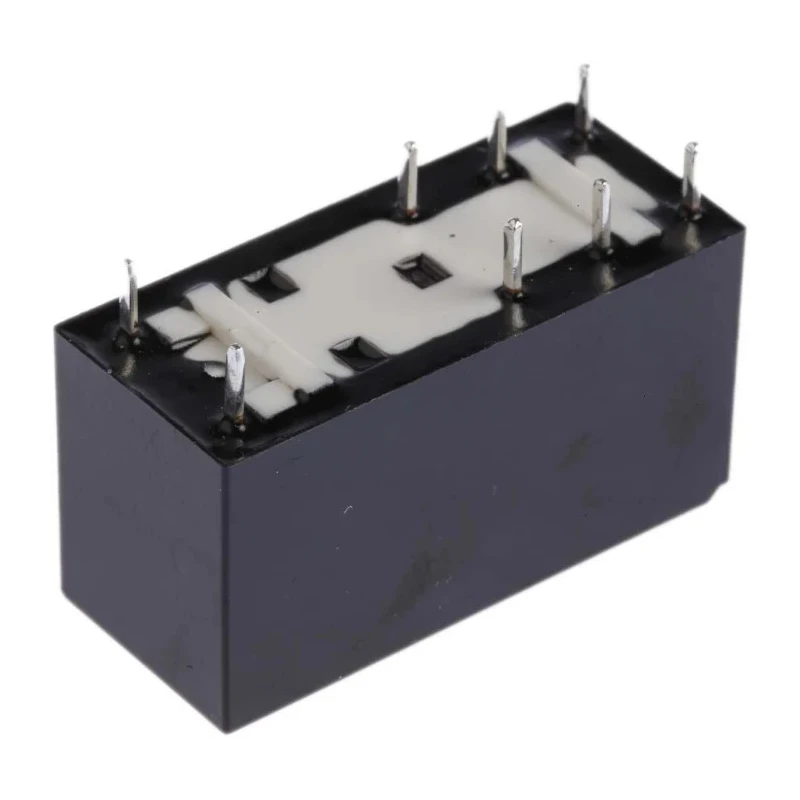

Omron Panel Power Relay, 24V DC Coil Voltage, 8A Switching Current, DPDT Configuration G2RL-2 DC24
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G2RL-2 DC24 |
| Width | 12.7mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | G2RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS, UL, IEC, EN, CE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
| Omron PCB Mount Non-Latching Relay, 24V dc Coil, 8A Switching Current, DPDTBrand | Omron |
| Finder PCB Relay, 24V dc Coil, 8A Switching Current, DPDTBrand | Finder |
Key Features
- Designed for panel mounting with through hole terminals.
- Coil power consumption is low at 400mW for efficient operation.
- Switching AC voltage rated up to 400V AC ensuring versatile application.
- Operates reliably within a temperature range from -40°C to 85°C.
- Compact dimensions with 29mm length, 12.7mm width, and 15.7mm height.
- Silver alloy contact material for enhanced durability and conductivity.
- Isolation voltage of 5kVAC between coil and contacts providing safety.
- Maintains high insulation quality with clearance of 10mm.
Product Description
Omron G2RL-2 DC24 Panel Power Relay is a high-quality, 2-pole DPDT (Double Pole Double Throw) relay designed for panel mounting applications in electrical and automation systems. It features a 24V DC coil voltage and supports a switching current of 8A, making it ideal for controlling moderate power devices and circuits.
This relay integrates through-hole terminal types for easy installation on panels or PCBs, ensuring robust mechanical and electrical connections. The coil power consumption of just 400mW minimizes energy usage, contributing to efficient system operation.
Designed to handle a switching AC voltage up to 400V, it is suitable for a wide range of applications including industrial automation, control panels, and general electrical equipment. The relay functions reliably in operating temperatures from -40°C to 85°C, accommodating harsh environments.
Its compact size with dimensions of 29mm length, 12.7mm width, and 15.7mm height facilitates space-saving designs. Equipped with silver alloy contacts, the relay delivers excellent conductivity and long service life.
The G2RL series provides high isolation voltage of 5kVAC between coil and contacts and ensures a creepage/clearance distance of 10mm, which enhances its safety and electrical performance. Its construction supports insulation distances above 8mm and withstands impulse voltages of up to 10kV.
Reliable DPDT contact configuration suitable for switching two independent circuits. Low coil power with 1.4kΩ coil resistance for energy efficiency. Meets international standards including RoHS, UL, IEC, EN, and CE, assuring compliance and quality.
Panel mount installation simplifies integration into control enclosures and electrical panels. Silver alloy contacts provide robust performance and high conductivity.
This Omron relay is widely used in industrial automation, manufacturing equipment, HVAC control systems, power distribution panels, and other commercial electrical applications. Its performance attributes and approvals make it a dependable choice for engineers and designers requiring durable power relays.
Explore a comprehensive range of Power Relays and electronic components on EnvMart for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It supports a maximum switching current of 8A.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
It operates reliably within a temperature range of -40°C to 85°C.
The dimensions are 29mm in length, 12.7mm in width, and 15.7mm in height.
The coil power consumption is 400mW, which contributes to its energy efficiency.
The isolation voltage is 5kVAC, providing safety in operation.
The contacts are made of silver alloy, which enhances conductivity and durability.
It meets several international standards, including RoHS, UL, IEC, EN, and CE.
It is designed for panel mounting with through-hole terminals for easy installation.
This relay can handle a maximum switching AC voltage of 400V.
The coil resistance is 1.4kΩ.
